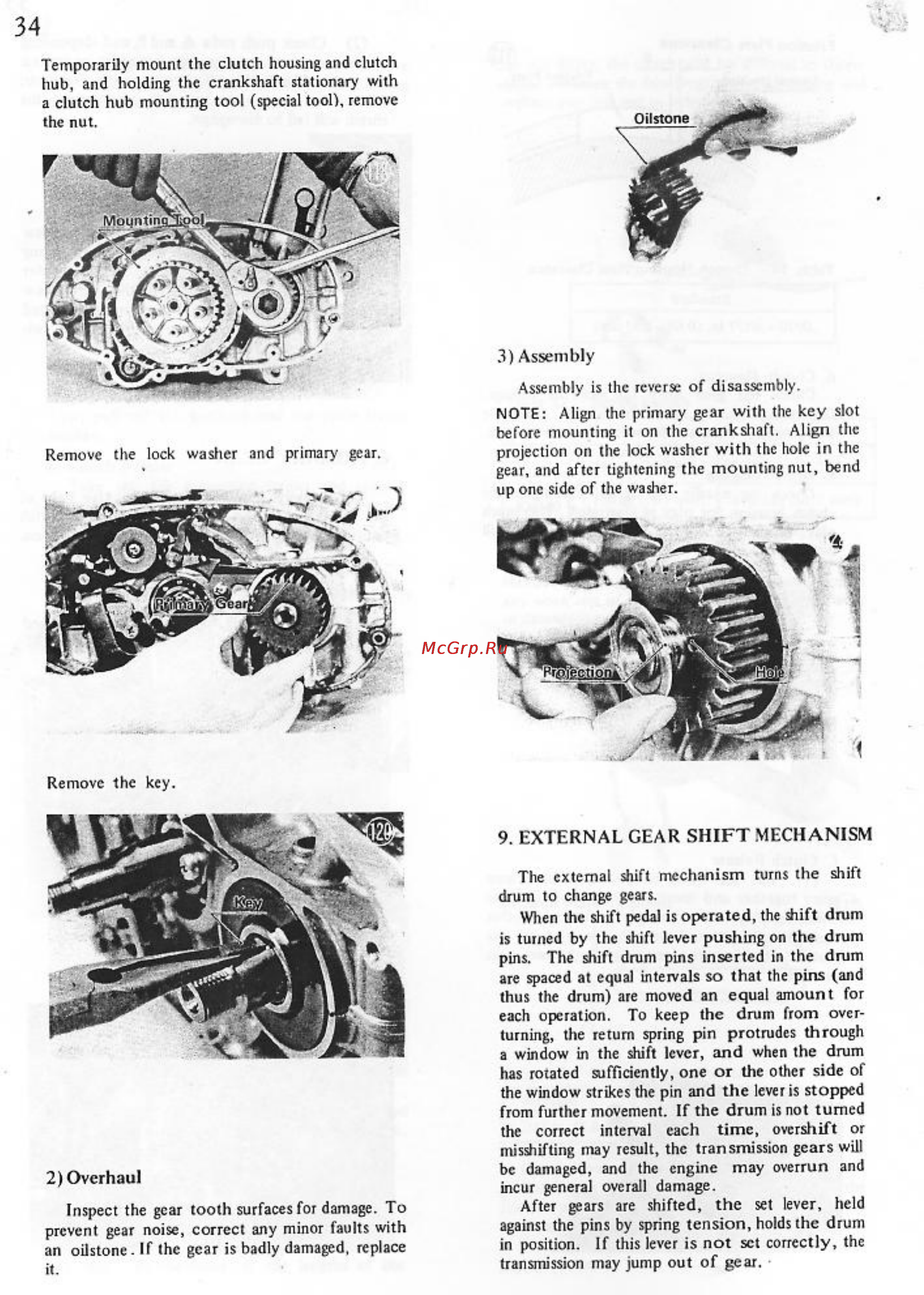

34 Temporarily mount the clutch housing and clutch hub and holding the crankshaft stationary with a clutch hub mounting tool special tool remove the nut 3 Assembly Assembly is the reverse of disassembly Remove the lock washer and primary gear NOTE Align the primary gear with the key slot before mounting it on the crankshaft Align the projection on the lock washer with the hole in the gear and after tightening the mounting nut bend up one side of the washer Remove the key 9 EXTERNAL GEAR SHIFT MECHANISM 2 Overhaul Inspect the gear tooth surfaces for damage To prevent gear noise correct any minor faults with an oilstone If the gear is badly damaged replace it The external shift mechanism turns the shift drum to change gears When the shift pedal is operated the shift dmm is turned by the shift lever pushing on the drum pins The shift drum pins inserted in the drum are spaced at equal intervals so that the pins and thus the drum are moved an equal amount for each operation To keep the drum from over turning the return spring pin protrudes through a window in the shift lever and when the drum has rotated sufficiently one or the other side of the window strikes the pin and the lever is stopped from further movement If the drum is not turned the correct interval each time overshift or misshifting may result the transmission gears will be damaged and the engine may overrun and incur genera overall damage After gears are shifted the set lever held against the pins by spring tension holds the drum in position If this lever is not set correctly the transmission may jump out of gear
