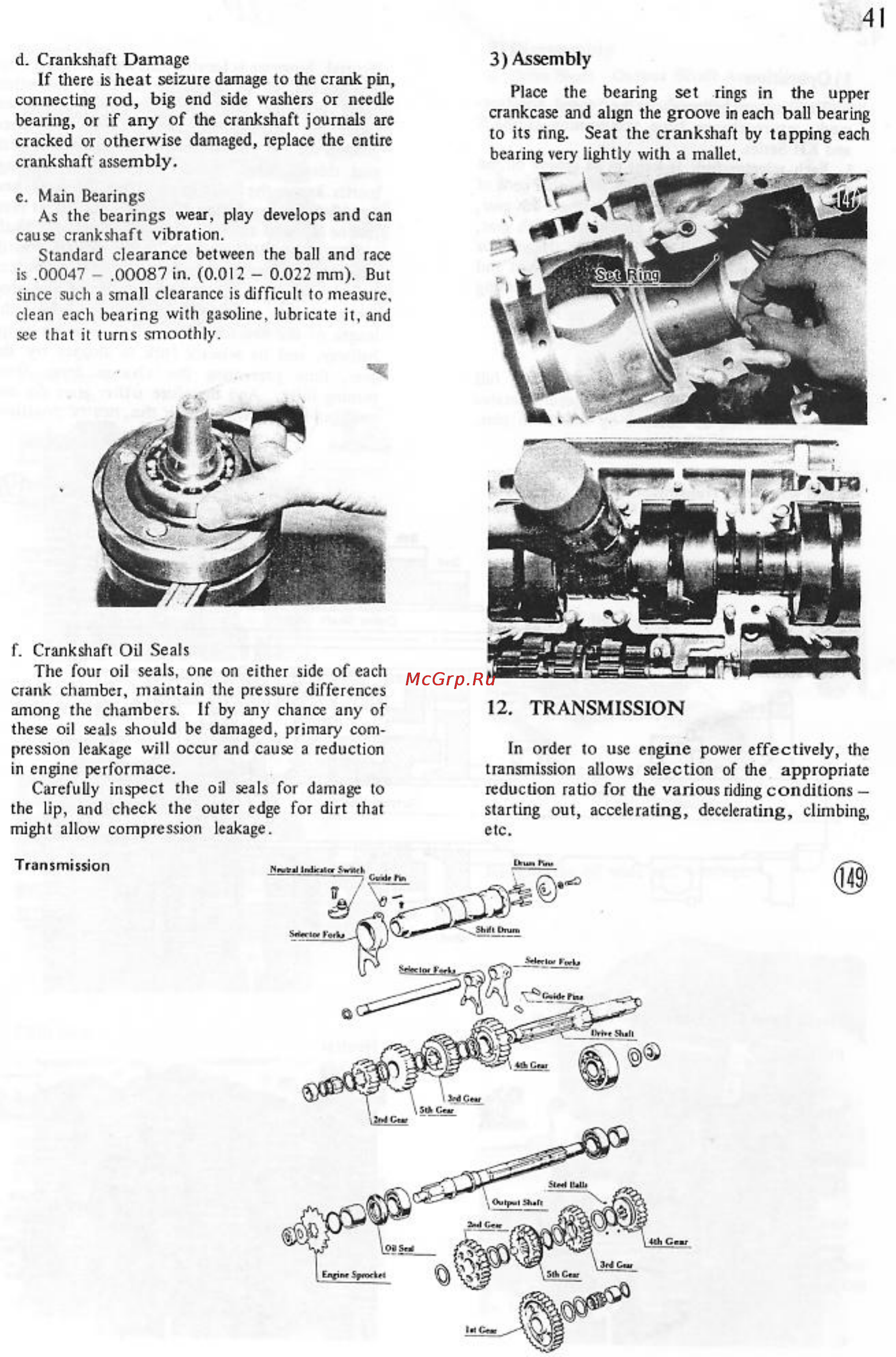

d Crankshaft Damage If there is heat seizure damage to the crank pin connecting rod big end side washers or needle bearing or if any of the crankshaft journals arc cracked or otherwise damaged replace the entire crankshaft assembly 3 Assembly Place the bearing set rings in the up crankcase and align the groove in each ball bear to its ring Seat the crankshaft by tapping ea bearing very lightly with a mallet c Main Bearings As the bearings wear play develops and can cause crankshaft vibration Standard clearance between the ball and race is 00047 00087 in 0 012 0 022 nun But since such a small clearance is difficult to measure clean each bearing with gasoline lubricate it and see that it turns smoothly f Crankshaft Oil Seals The four oil seals one on either side of each crank chamber maintain the pressure differences among the chambers If by any chance any of these oil seals should be damaged primary com pression leakage will occur and cause a reduction in engine performace Carefully inspect the oil seals for damage to the lip and check the outer edge for dirt that might allow compression leakage Transmission 12 TRANSMISSION In order to use engine power effectively t transmission allows selection of the appropria reduction ratio for the various riding conditions starting out accelerating decelerating climbin etc
