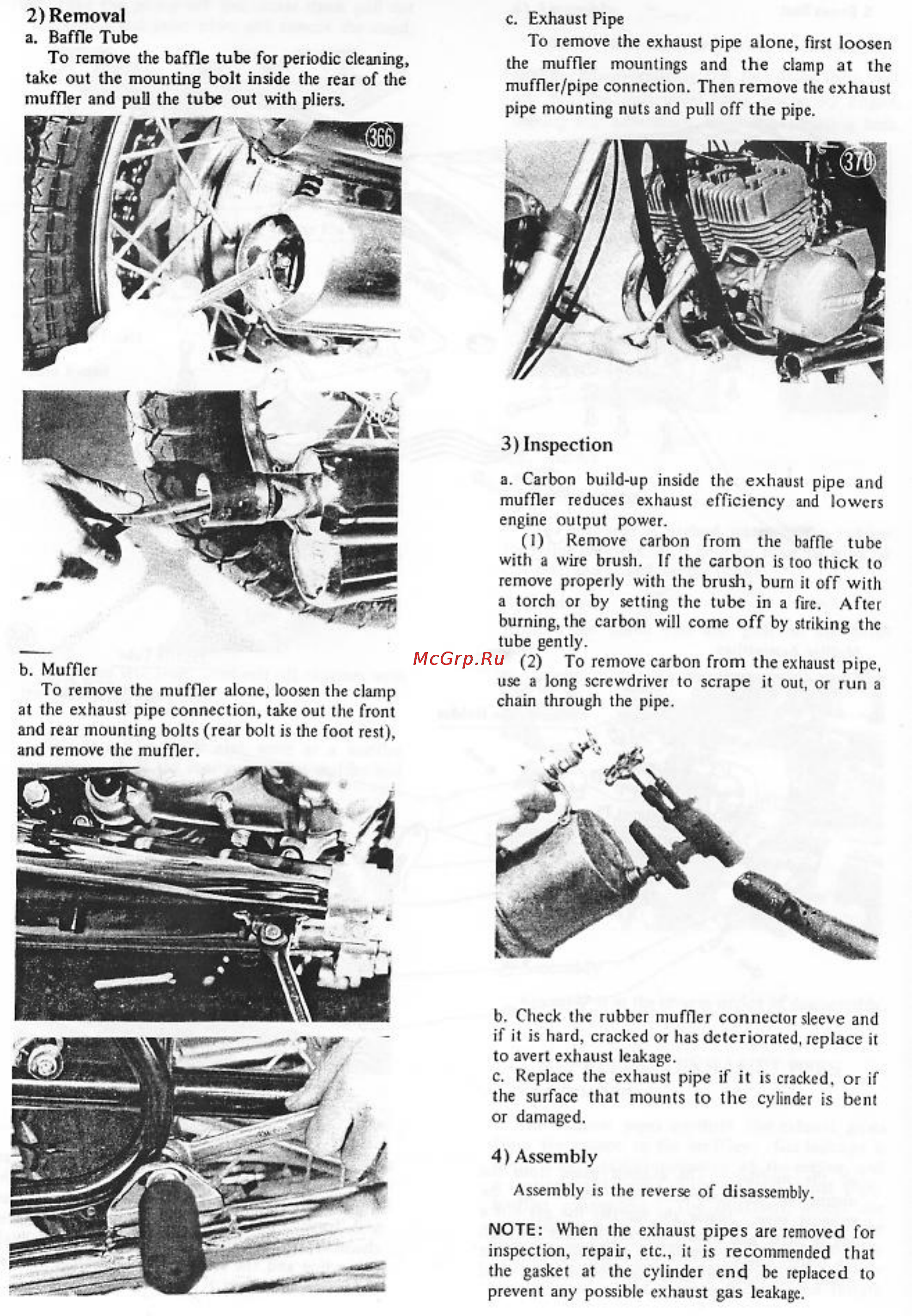

2 Removal a Baffle Tube To remove the baffle tube for periodic cleaning take out the mounting bolt inside the rear of the muffler and pull the tube out with pliers c Exhaust Pipe To remove the exhaust pipe alone first loosen the muffler mountings and the clamp at the muffler pipe connection Then remove the exhaust pipe mounting nuts and pull off the pipe 3 Inspection b Muffler To remove the muffler alone loosen the clamp at the exhaust pipe connection takeout the front and rear mounting bolts rear bolt is the foot rest and remove the muffler a Carbon build up inside the exhaust pipe and muffler reduces exhaust efficiency and lowers engine output power 1 Remove carbon from the baffle tub with a wire brush If the carbon is too thick remove properly with the brush burn it off w a torch or by setting the tube in a fire Xft burning the carbon will come off by striking th tube gently 2 To remove carbon from the exhaust pip use a long screwdriver to scrape it out or run chain through the pipe b Check the rubber muffler connector sleeve and if it is hard cracked or has deteriorated replace it to avert exhaust leakage c Replace the exhaust pipe if it is cracked or if the surface that mounts to the cylinder is bent or damaged 4 Assembly Assembly is the reverse of disassembly NOTE When the exhaust pipes arc removed for inspection repair etc it is recommended that
