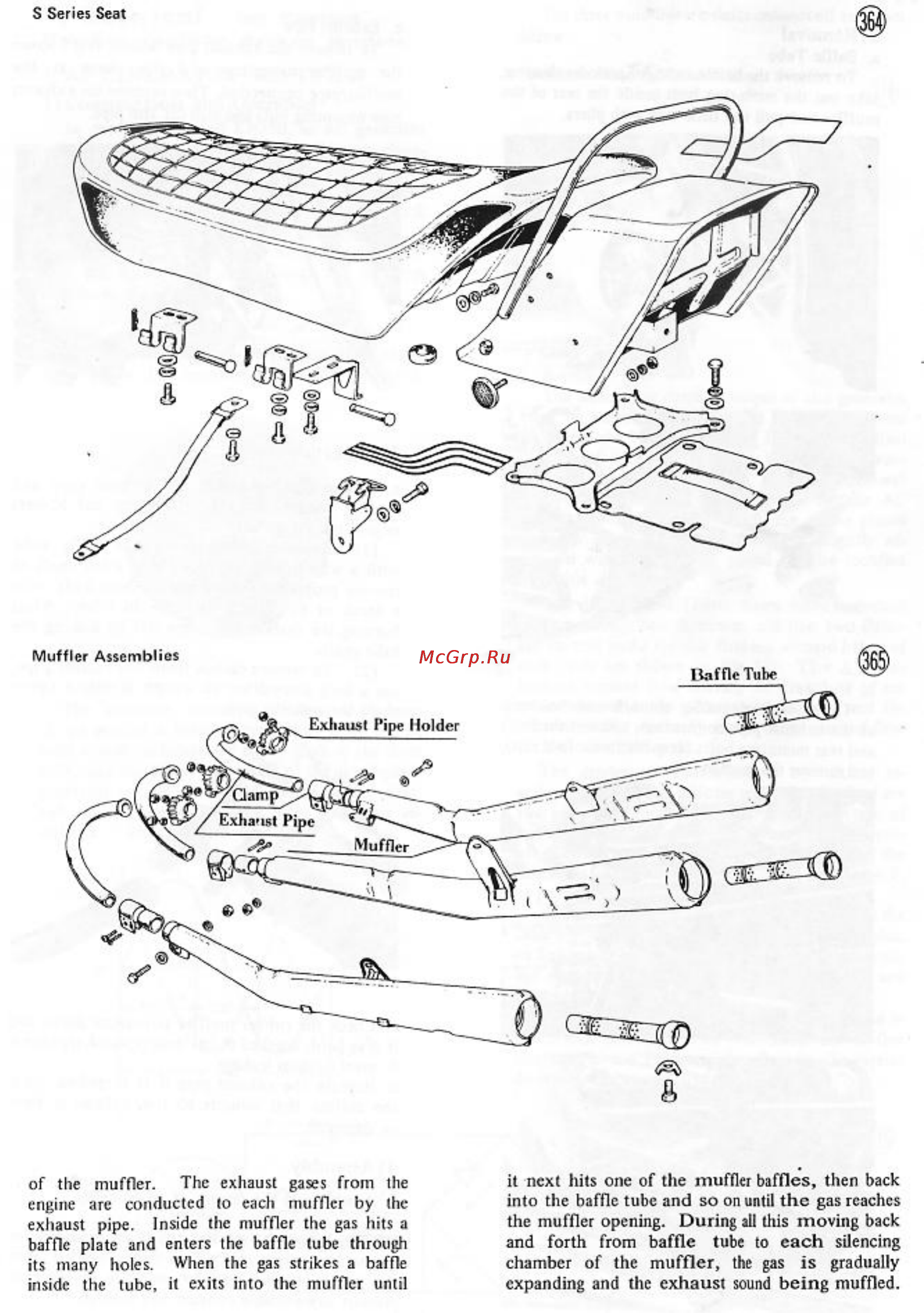

S Series Seat of the muffler The exhaust gases from the engine arc conducted to each muffler by the exhaust pipe Inside the muffler the gas hits a baffle plate and enters the baffle tube through it next hits one of the muffler baffles then ba into the baffle tube and so on until the gas reach the muffler opening During all this moving ba and forth from baffle tube to each silenci
