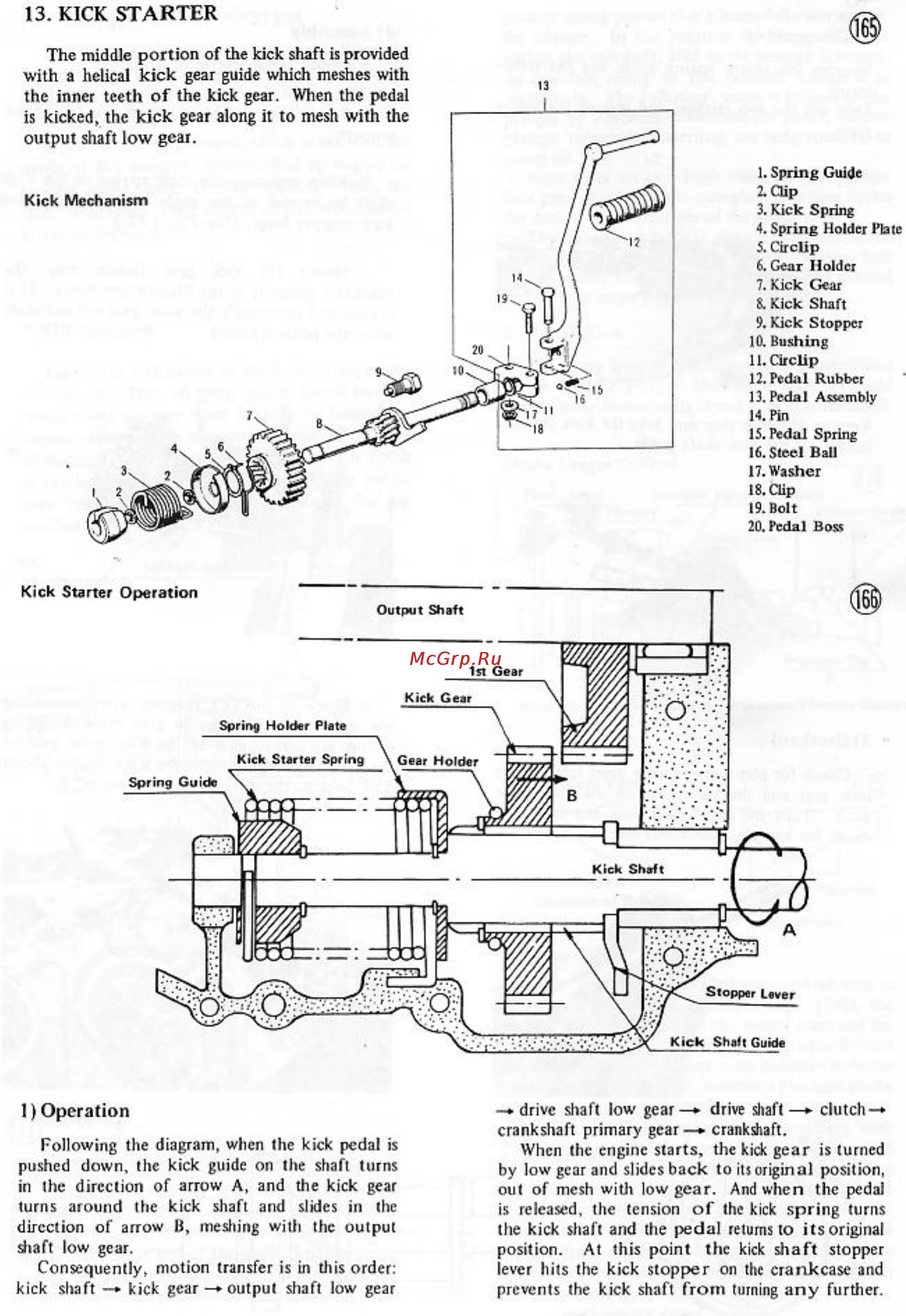

13 KICK STARTER The middle portion of the kick shaft is provided with a helical kick gear guide which meshes with the inner teeth of the kick gear When the pedal is kicked the kick gear along it to mesh with the output shaft low gear 1 Spring Guide 2 Clip 3 Kick Spring 4 Spring Holder 5 Circlip 6 Gear Holder 7 Kick Gear 8 Kick Shaft 9 Kick Stopper 10 Bushing 11 Circlip 12 Pedal Rubber 13 Pedal Assemb 14 Pin 15 Pedal Spring 16 Steel Bali 17 Washer 18 Clip 19 Bolt 20 Pedal Boss 1 Operation Following the diagram when the kick pedal is pushed down the kick guide on the shaft turns in the direction of arrow A and the kick gear turns around the kick shaft and slides in the direction of arrow 13 meshing with the output diaft low gear drive shaft low gear drive shaft clut crankshaft primary gear crankshaft When the engine starts the kick gear is tur by low gear and slides back to its original posi out of mesh with low gear And when the p is released the tension of the kick spring t the kick shaft and the pedal returns to its orig position At this point the kick shaft stop
