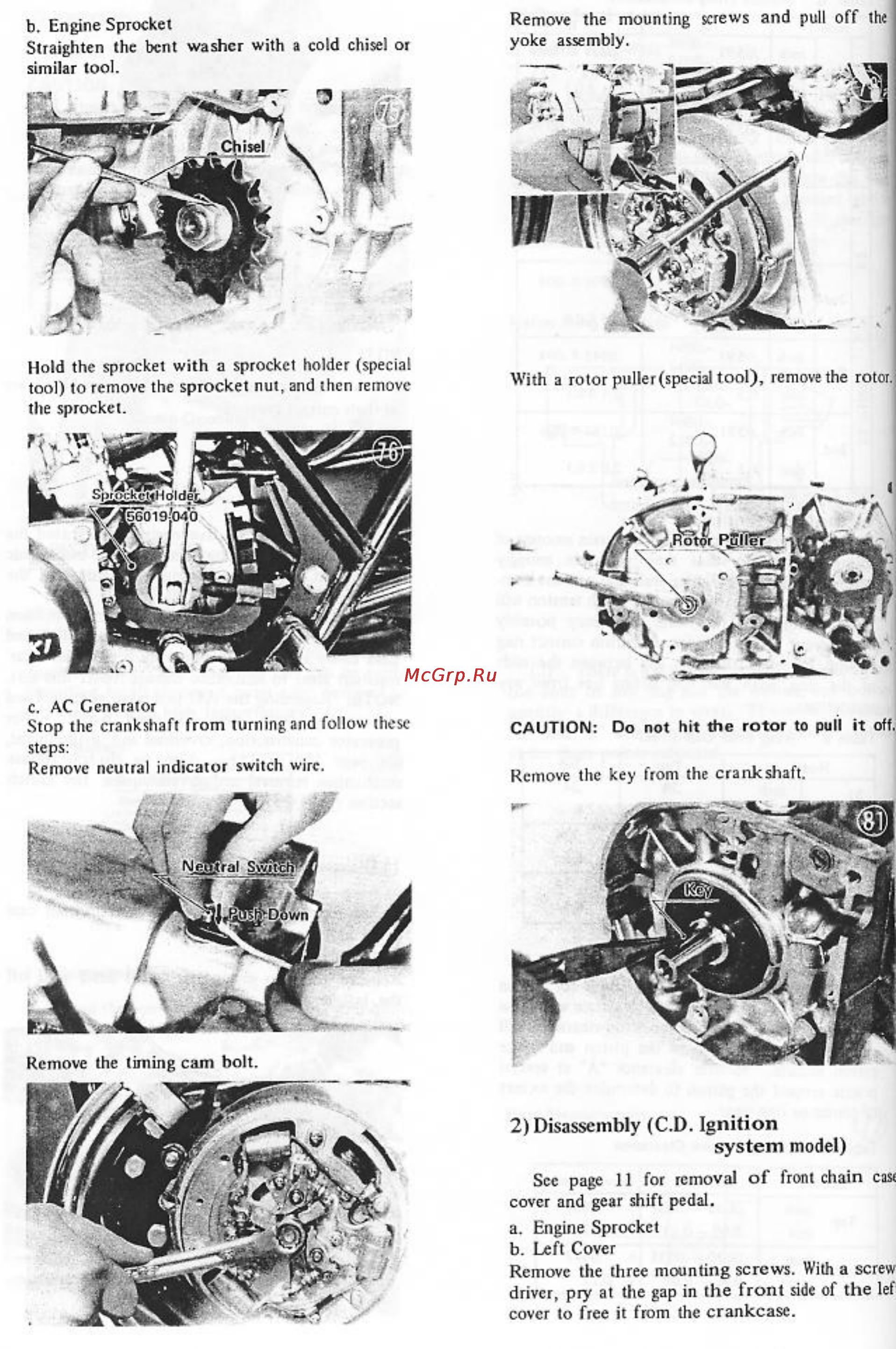

b Engine Sprocket Straighten the bent washer with a cold chisel or similar tool Hold the sprocket with a sprocket holder special tool to remove the sprocket nut and then remove the sprocket c AC Generator Stop the crankshaft from turning and follow these steps Remove neutral indicator switch wire Remove the mounting screws and pull o yoke assembly With a rotor puller special tool remove the ro CAUTION Do not hit the rotor to pull it off Remove the key from the crankshaft Remove the timing cam bolt 2 Disassembly C D Ignition system model Sec page 11 for removal of front cha cover and gear shift pedal a Engine Sprocket b Left Cover Remove the three mounting screws With driver pry at the gap in he I rout side ol
