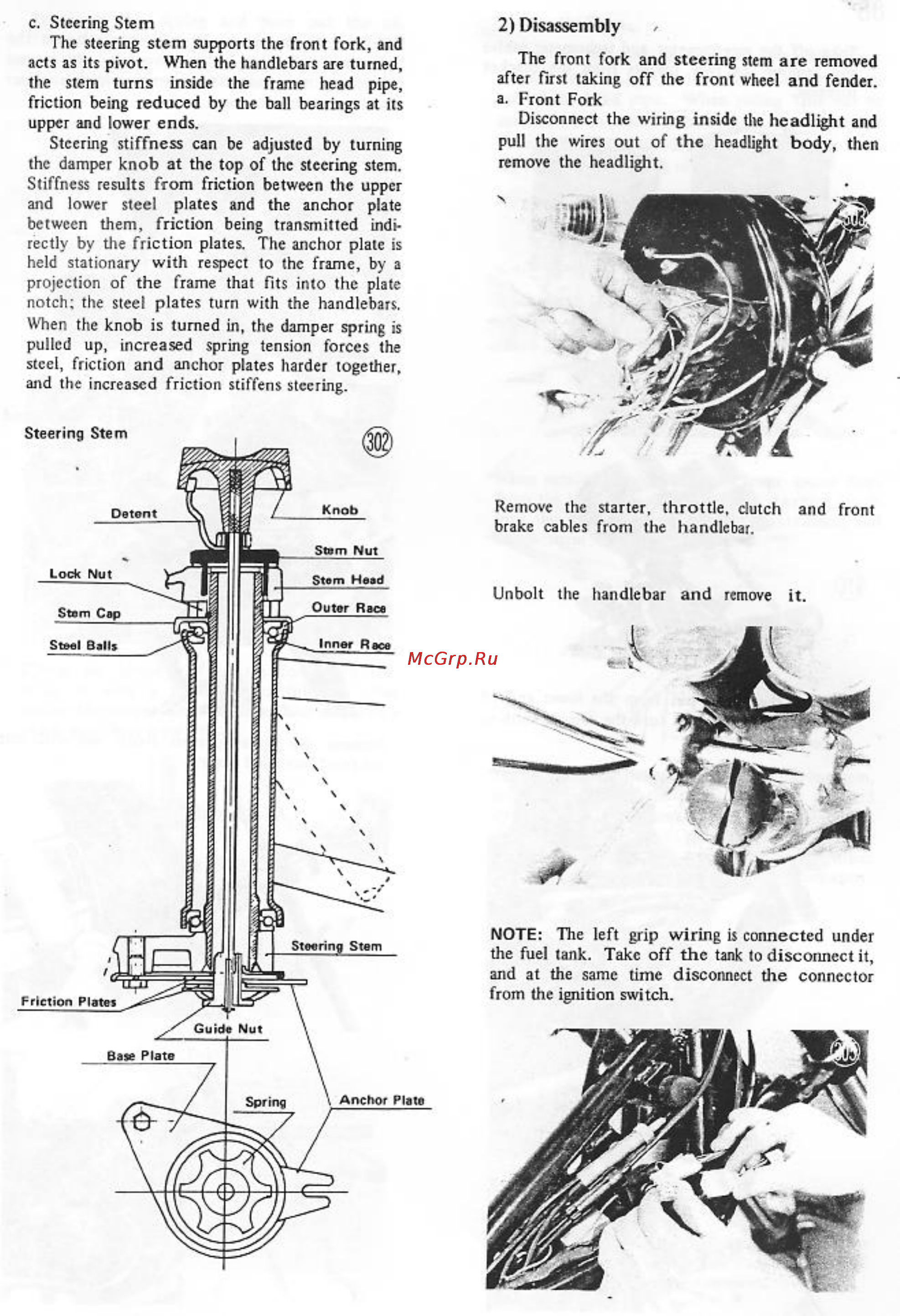

c Steering Stem The steering stem supports the front fork and acts as its pivot When the handlebars are turned the stem turns inside the frame head pipe friction being reduced by the ball bearings at its upper and lower ends Steering stiffness can be adjusted by turning the damper knob at the top of the steering stem Stiffness results from friction between the upper and lower steel plates and the anchor plate between them friction being transmitted indi rectly by the friction plates The anchor plate is held stationary with respect to the frame by a projection of the frame that fits into the plate notch the steel plates turn with the handlebars When the knob is turned in the damper spring is pulled up increased spring tension forces the steel friction and anchor plates harder together and the increased friction stiffens steering 2 Disassembly The front fork and steering stem are remov after first taking off the front wheel and fend a front Fork Disconnect the wiring inside the headlight a pull the wires out of the headlight body th remove the headlight Remove the starter throttle brake cables from the handlebar clutch and fro Unbolt the handlebar and remove it NOTE The left grip wiring is connected und the fuel tank Take off the tank to disconnect and at the same time disconnect die connec from the ignition switch
