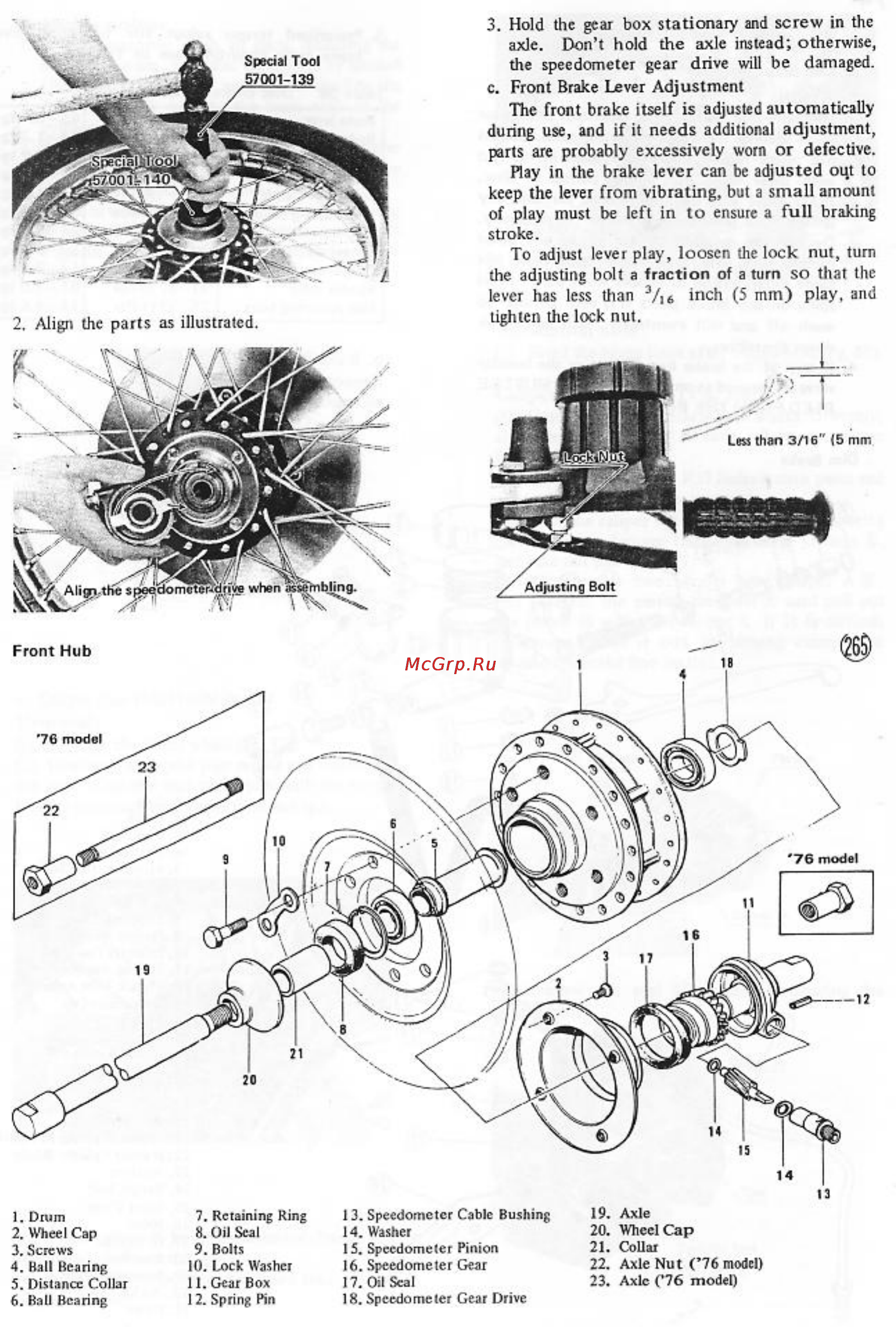

2 Align the parts as illustrated 3 Hold the gear box stationary and screw in axJe Don t hold the axle instead otherw tire speedometer gear drive will be damaged c Front Brake Lever Adjustment The front brake itself is adjusted automati during use and if it needs additional adjustm parts are probably excessively worn or defective Hay in the brake lever can be adjusted oq keep the lever from vibrating but a small am of play must be left in to ensure a full bra stroke To adjust lever play loosen die lock nut die adjusting bolt a fraction of a turn so that lever has less Uian 3 16 inch 5 mm play tighten the lock nut 14 13 1 Drum 2 Wheel Cap 3 Screws 4 Ball Bearing 7 Retaining Ring 8 Oil Seal 9 Bolts 10 Lock Washer 13 Speedometer Cable Bushing 14 Washer 15 Speedometer Pinion 16 Speedometer Gear 19 Axle 20 Wheel Cap 21 Collar 22 Axle Nut 76 model 23 Axle 76 model
