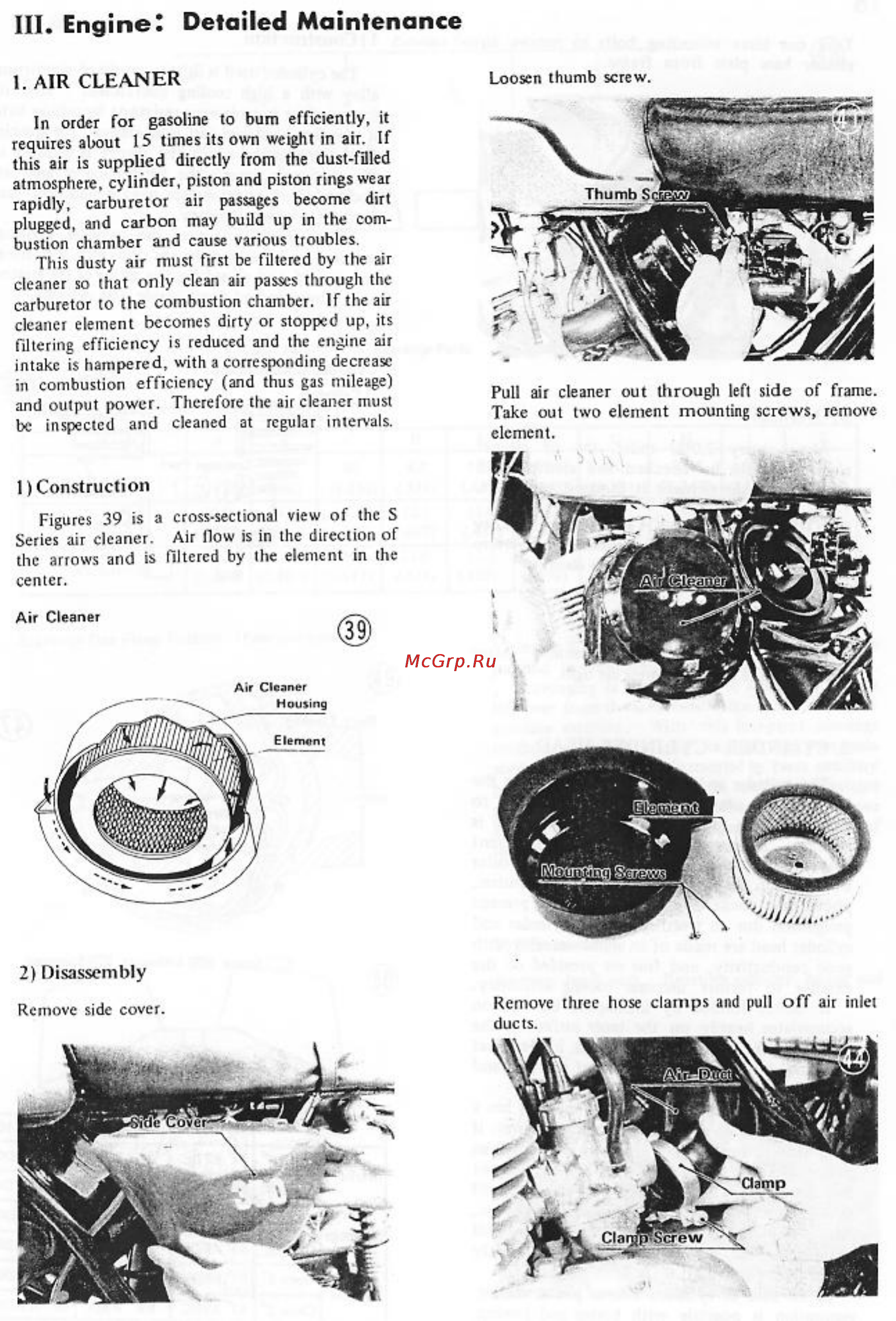

III Engine Detailed Maintenance Loosen thumb screw 1 AIR CLEANER In order for gasoline to bum efficiently it requires about 15 times its own weight in air If this ait is supplied directly from the dust filled atmosphere cylinder piston and piston ringswear rapidly carburetor air passages become dirt plugged and carbon may build up in the com bustion chamber and cause various troubles This dusty air must first be filtered by the air cleaner so that only clean air passes through the carburetor to the combustion chamber If the air cleaner element becomes dirty or stopped up its filtering efficiency is reduced and the engine air intake is hampered with a corresponding decrease in combustion efficiency and thus gas mileage and output power Therefore the air cleaner must be inspected and cleaned at regular intervals Pull air cleaner out through left side of fr Take out two element mounting screws rem clement 1 Construction Figures 39 is a cross sectional view of the S Series air cleaner Air How is in the direction of the arrows and is filtered by the element in the center Air Cleaner Air Cleaner 2 Disassembly Remove side cover Remove three hose clamps and puli off air inlet ducts
