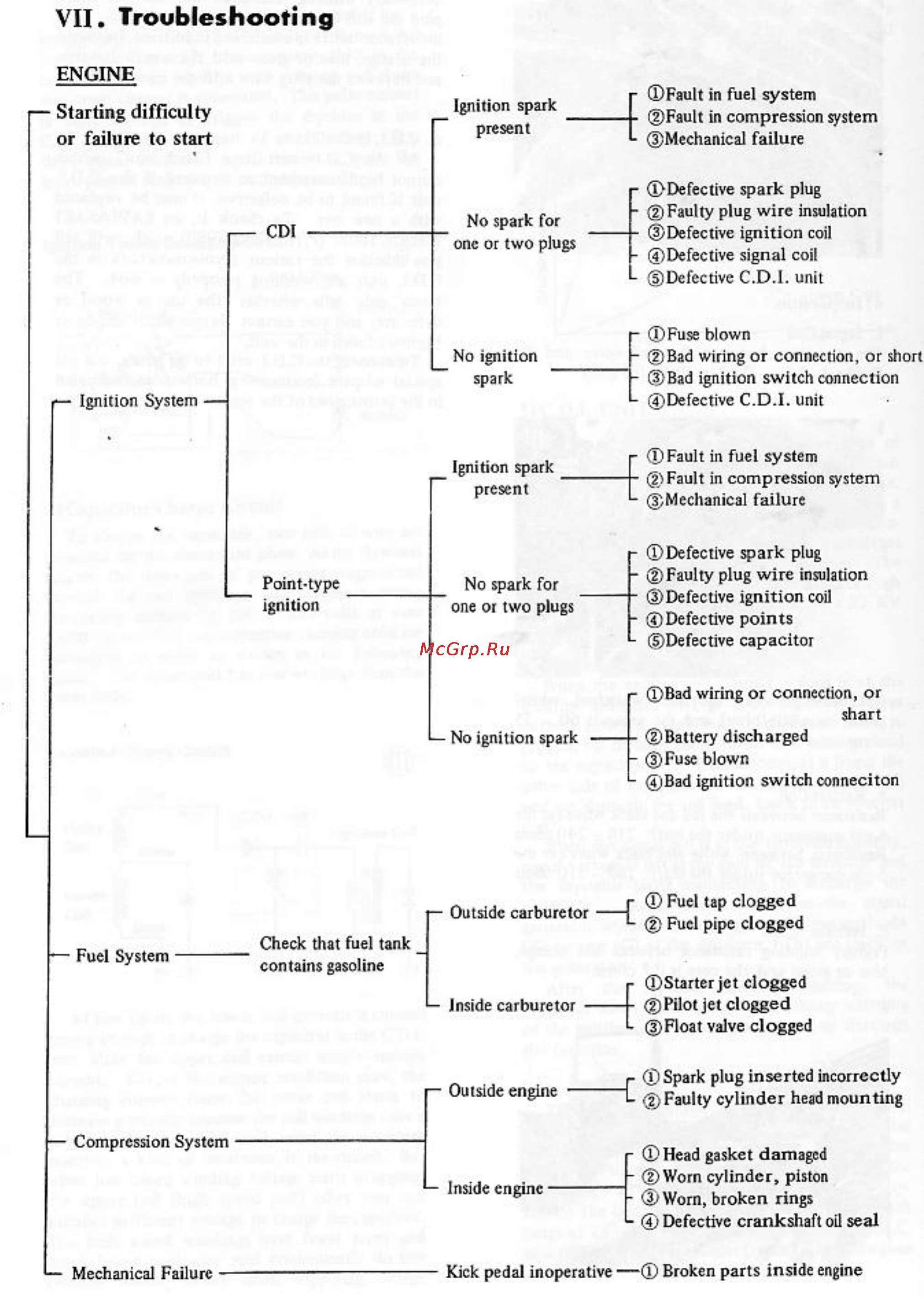

VII Troubleshooting ENGINE Starting difficulty or failure to start Fault in fuel system Ignition spark _________ Fault in compression system present Mechanical failure __ rr I ________________ Defective spark plug Faulty plug wire insulation No spark for ________ kJ Meiecuve ignition cou one or two plugs Defective signal coil Defective C D l unit No ignition spark Fuse blown Bad wiring or connection or short Bad ignition switch connection Defective C D l unit Ignition spark present Fault in fuel system u raun in compression system Mechanical failure Ignition System Point type___________ ignition Defective spark plug Faulty plug wire insulation No spark for ________ Defective ignition coil one or two plugs Defective points Defective capacitor L No ignition spark Outside carburetor j ruet bystem Bad wiring or connection or shart Battery discharged Fuse blown Bad ignition switch conneciton Fuel tap clogged Fuel pipe clogged Check that fuel tank _ contains gasoline JllblUC CdiUUrClUl Starter jet clogged Pilot iet cloeced Float valve clogged Spark plug inserted incorrectly Outside engine Faulty cylinder head mounting Compression System Head gasket damaged Worn cylinder piston Inside engine Worn broken rings Defective crankshaft oil seal
