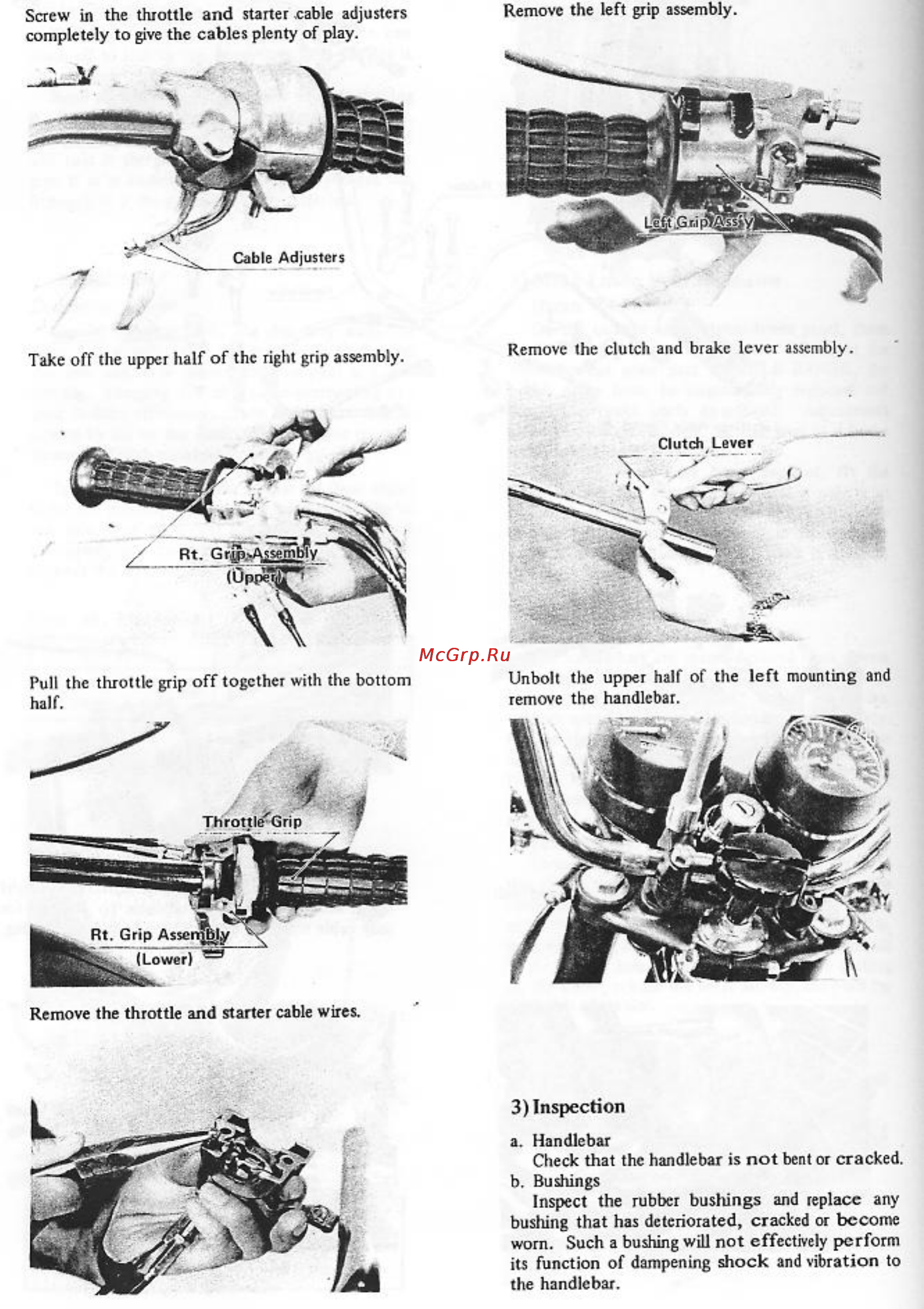

Screw in the throttle and starter cable adjusters completely to give the cables plenty of play Take off the upper half of the right grip assembly Pull the throttle grip off together with the bottom half Remove the left grip assembly Remove the clutch and brake lever assembly Unbolt the upper half of the remove the handlebar left mounting and Remove the throttle and starter cable wires 3 Inspection a Handlebar Check that the handlebar is not bent or cracke b Bushings Inspect the rubber buslungs and replace a bushing that has deteriorated cracked or becom worn Such a bushing will not effectively perfor
