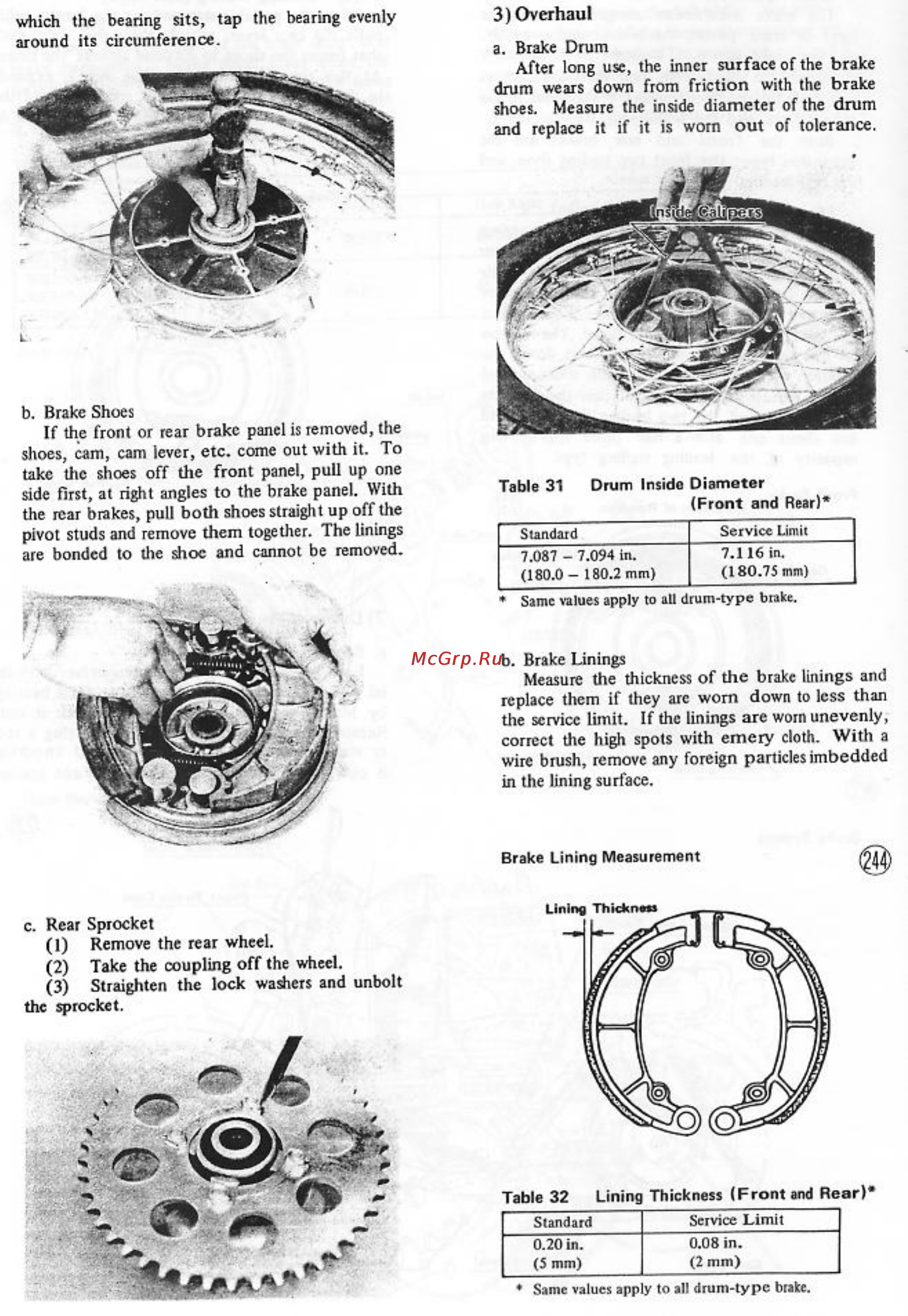

which the bearing sits tap the bearing evenly around its circumference b Brake Shoes If the front or rear brake panel is removed the shoes cam cam lever etc come out with it To take the shoes off the front panel pull up one side first at right angles to the brake panel With the rear brakes pull both shoes straight up off the pivot studs and remove them together The linings are bonded to the shoe and cannot be removed 3 Overhaul a Brake Drum After long use the inner surface of the brak drum wears down from friction with the brak shoes Measure the inside diameter of the dru and replace it if it is worn out of tolerance Table 31 Drum Inside Diameter Front and Rear Standard Service Limit 7 087 7 094 in 180 0 180 2 mm 7 116 in 180 75 mm Same values apply to all drum type brake b Brake Linings Measure the thickness of die brake linings a replace them if they arc worn down to less t the service limit If the linings arc worn uneve correct tiie high spots with emery cloth With wire brush remove any foreign particles imbed in the lining surface Brake Lining Measurement c Rear Sprocket 1 Remove the rear wheel 2 Take the coupling off the wheel 3 Straighten the lock washers and unbolt the sprocket Table 32 Lining Thickness Front and Rear Standard Service Limit 0 20 in 5 mm 0 08 in 2 min
