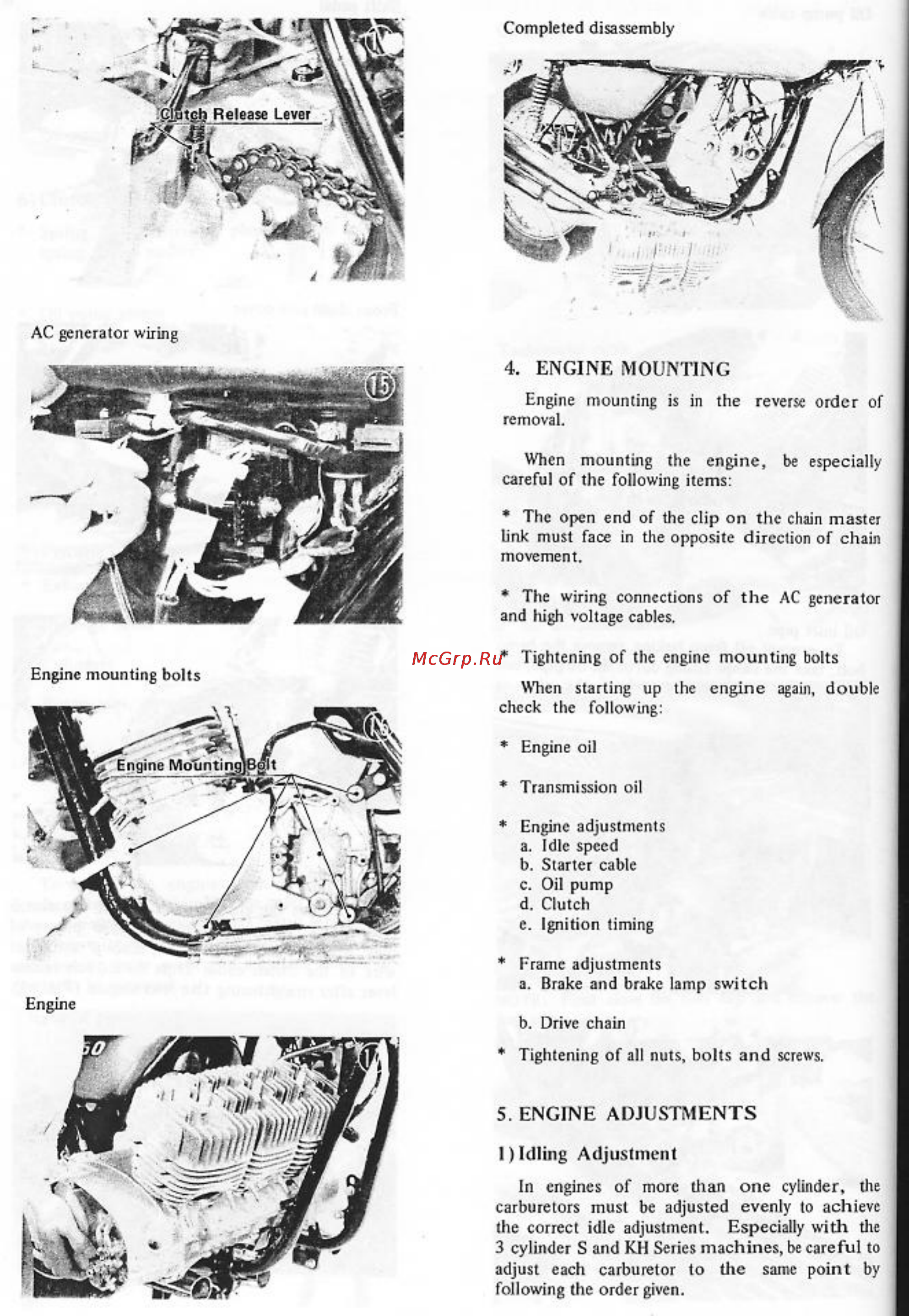

Completed disassembly 4 ENGINE MOUNTING Engine mounting is in the reverse order removal When mounting the engine careful of the following items be especia The open end of the clip on the chain mast link must face in the opposite direction of cha movement The wiring connections of the AC generat and high voltage cables Tightening of the engine mounting bolts Engine mounting bolts When starting up the engine again doub check the following Engine oil Transmission oil Engine adjustments a Idle speed b Starter cable c Oil pump d Clutch e Ignition timing Frame adjustments a Brake and brake lamp switch b Drive chain Tightening of all nuts bolts and screws 5 ENGINE ADJUSTMENTS 1 Idling Adjustment In engines of more titan one cylinder th carburetors must be adjusted evenly to achiev the correct idle adjustment Especially with th 3 cylinder S and KH Series machines be careful adjust each carburetor to the same point b
