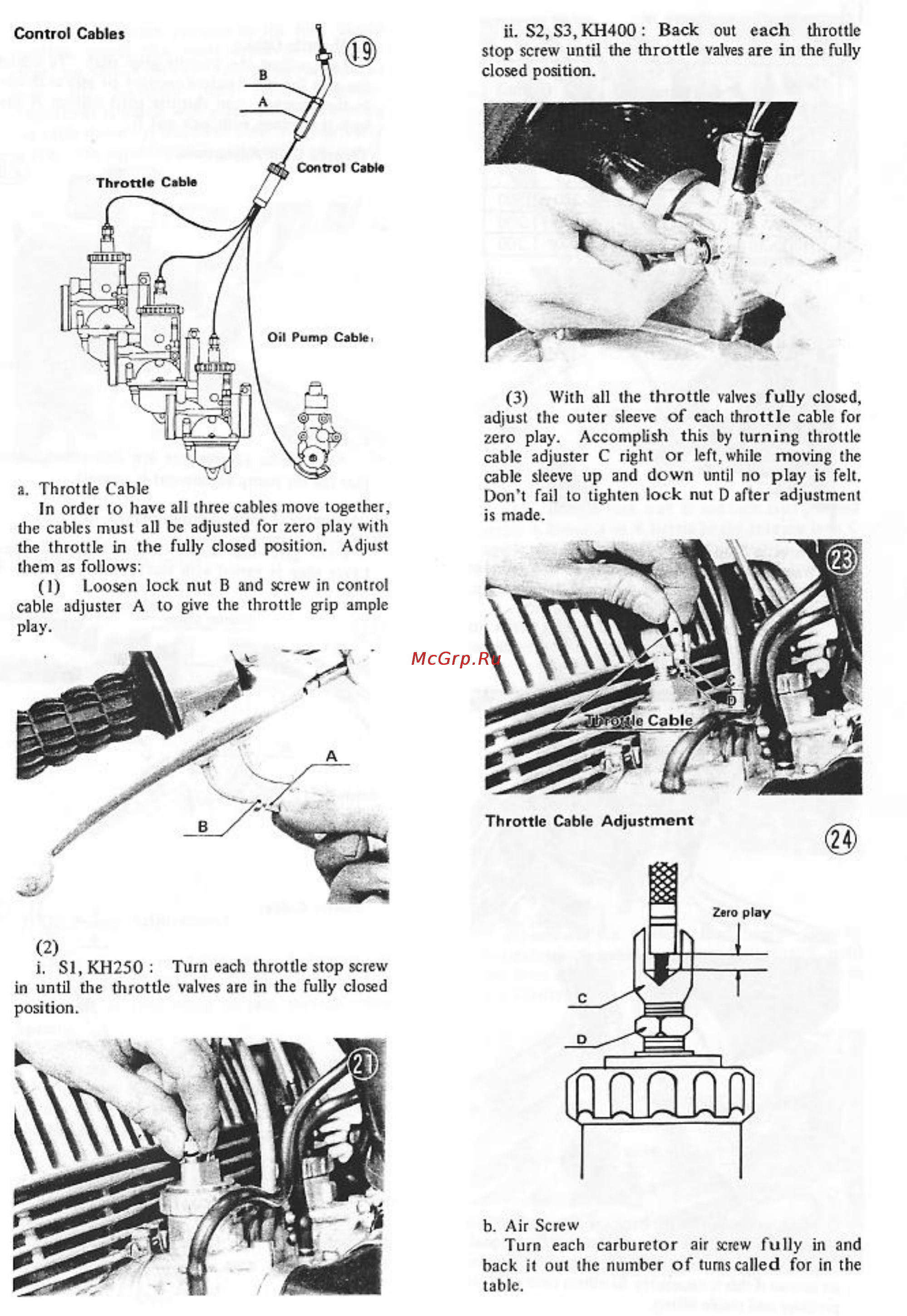

ii S2 S3 KH400 Back out each throttle stop screw until the throttle valves are in the fully closed position a Throttle Cable In order to have ail three cables move together the cables must all be adjusted for zero play with the throttle in the fully closed position Adjust them as follows 1 Loosen lock nut B and screw in control cable adjuster A to give the throttle grip ample play 3 With all the throttle valves fully closed adjust the outer sleeve of each throttle cable for zero play Accomplish this by turning throttle cable adjuster C right or left while moving the cable sleeve up and down until no play is felt Don t fail to tighten lock nut D after adjustment is made Throttle Cable Adjustment 2 i SI KH250 Turn each throttle stop screw in until the throttle valves are in the fully closed position b Air Screw Turn each carburetor air screw fully in and back it out the number of turns called for in the
