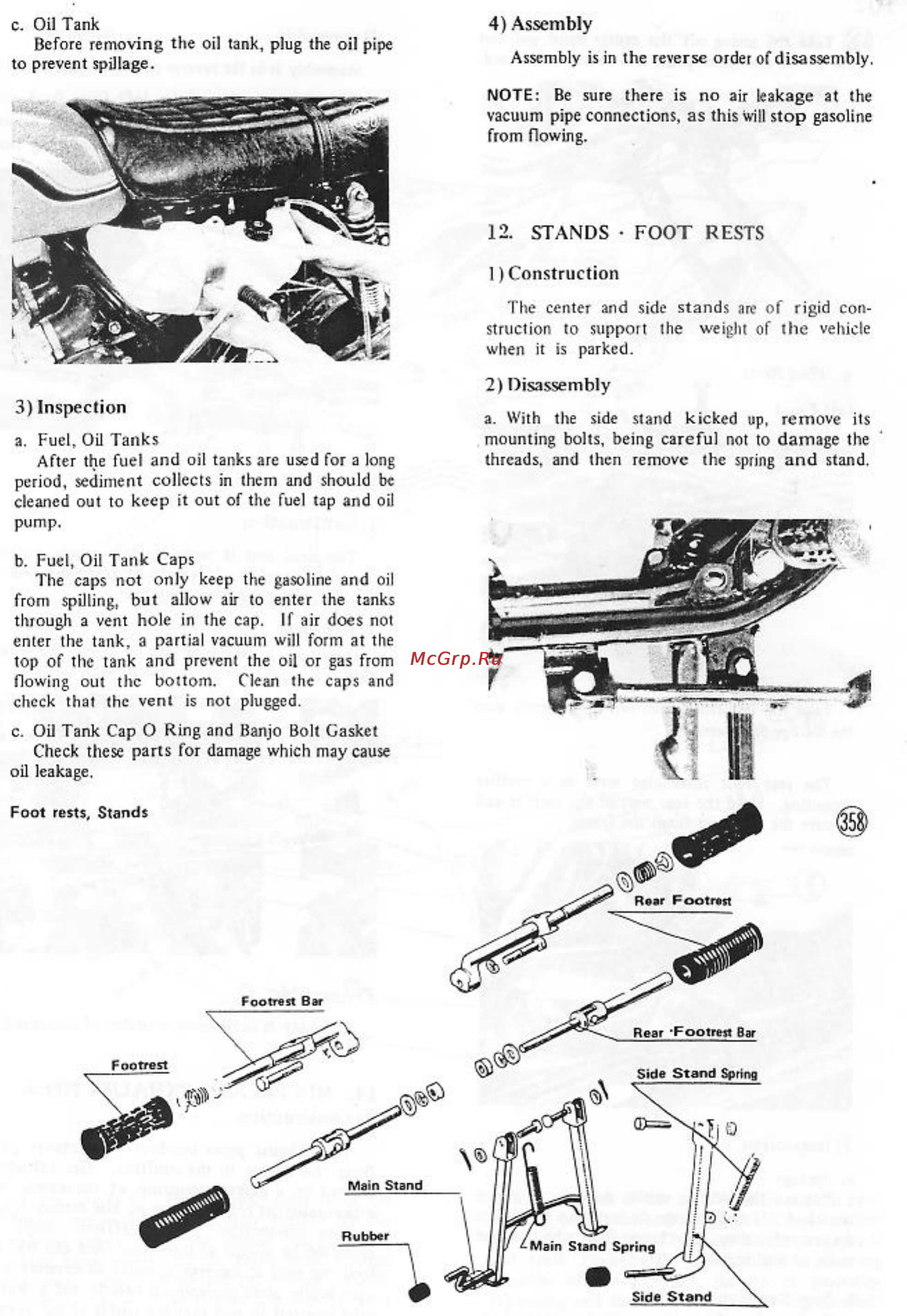

c Oil Tank Before removing the oil tank plug the oil pipe to prevent spillage 4 Assembly Assembly is in the reverse order of disassembly NOTE Be sure there is no air leakage at th vacuum pipe connections as this will stop gasolin from flowing 12 STANDS FOOT RESTS 1 Construction The center and side stands are of rigid con struction to support the weight of the vehic when it is parked 2 Disassembly 3 Inspection a Fuel Oil Tanks After the fuel and oil tanks are used for a long period sediment collects in them and should be cleaned out to keep it out of the fuel tap and oil pump b Fuel Oil Tank Caps The caps not only keep the gasoline and oil from spilling but allow air to enter the tanks through a vent hole in the cap If air docs not enter the tank a partial vacuum will form at the top of the tank and prevent the oil or gas from flowing out the bottom Clean the caps and check that the vent is not plugged c Oil Tank Cap O Ring and Banjo Bolt Gasket Check these parts for damage which may cause oil leakage a With the side stand kicked up remove it mounting bolts being careful not to damage th threads and then remove the spring and stand
