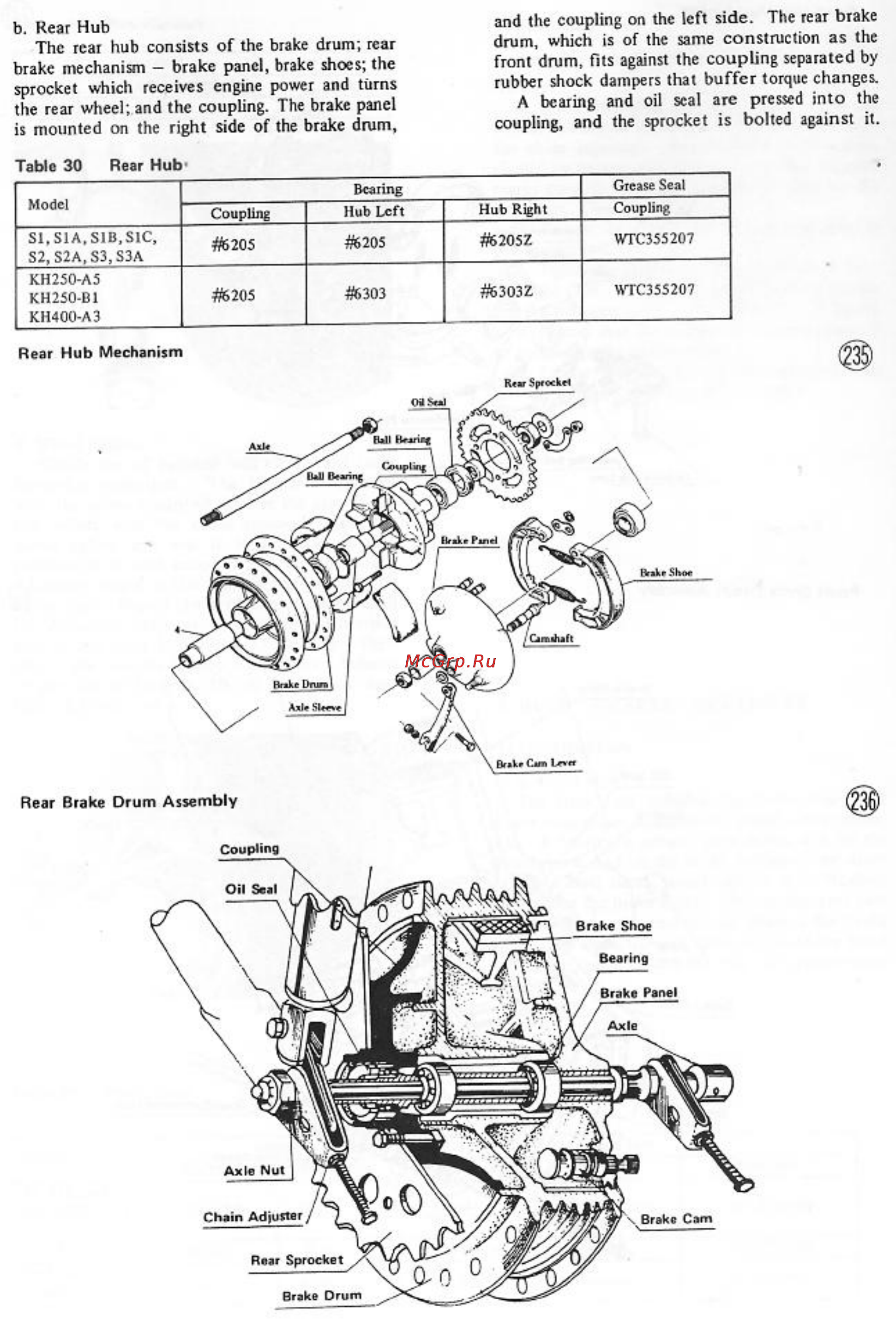

b Rear Hub The rear hub consists of the brake drum rear brake mechanism brake panel brake shoes the sprocket which receives engine power and turns the rear wheel and the coupling The brake panel is mounted on the right side of the brake drum and the coupling on the left side The rear b drum which is of the same construction as front drum fits against the coupling separate rubber shock dampers that buffer torque changes A bearing and oil seal arc pressed into coupling and the sprocket is bolted against it Table 30 Rear HubCoupling Bearing Hub Right Grease Seal __________ Hub Left SI SIA SIB SIC S2 S2A S3 S3A 205 6205 62057 WTC355207 KH250 A5 KH250 B1 KH400 A3 205 6303 63037 WTC355207 Model Rear Hub Mechanism R M Sprechet Rear Brake Drum Assembly Coupling Coupling
