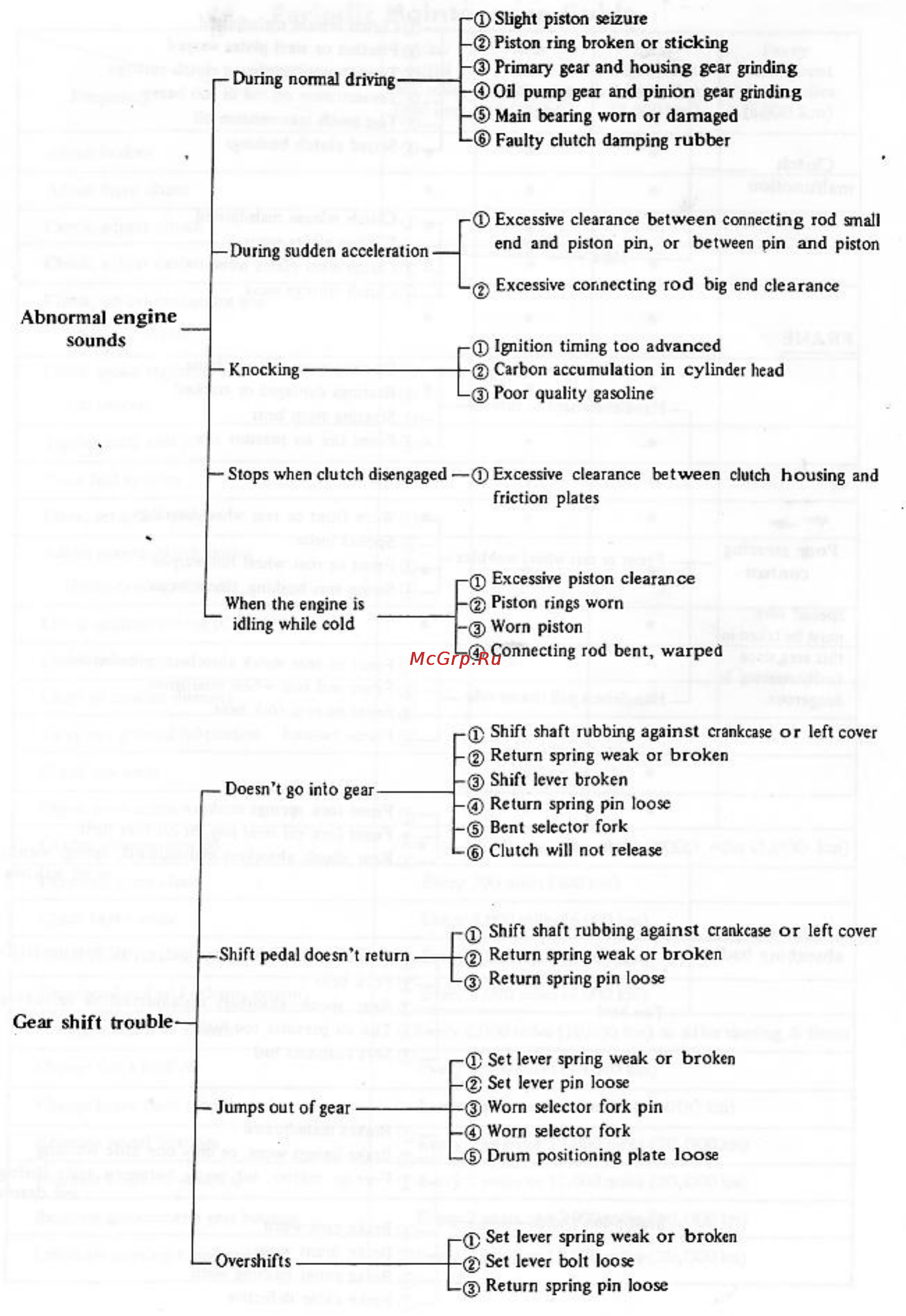

T Slight piston seizure Piston ring broken or sticking Primary gear and housing gear grinding Oil pump gear and pinion gear grinding Main bearing worn or damaged Faulty clutch damping rubber During sudden acceleration 0 Excessive clearance between connecting rod small end and piston pin or between pin and piston D Excessive connecting rod big end clearance Abnormal engine sounds Ignition timing too advanced Knocking 2 Carbon accumulation in cylinder head 3 Poor quality gasoline Stops when clutch disengaged 0 Excessive clearance between clutch housing and friction plates Q Excessive piston clearance When the engine is __________ Piston rings worn idling while cold 3 Worn piston Q Connecting rod bent warped 1 Shift shaft rubbing against crankcase or left cover 2 Return spring weak or broken Doesn t co into zear__________ 3 Shift lever broken 0 Return spring pin loose 5 Bent selector fork Clutch will not release r Shift shaft rubbing against crankcase or left cover Shift pedal doesn t return 1 2 Return spring weak or broken g Return spring pin loose Gear shift trouble Set lever spring weak or broken Jumps out of gear Set lever pin loose Worn selector fork pin Worn selector fork Drum positioning plate loose f Set lever spring weak or broken Overshifts 2 Set lever bolt loose
