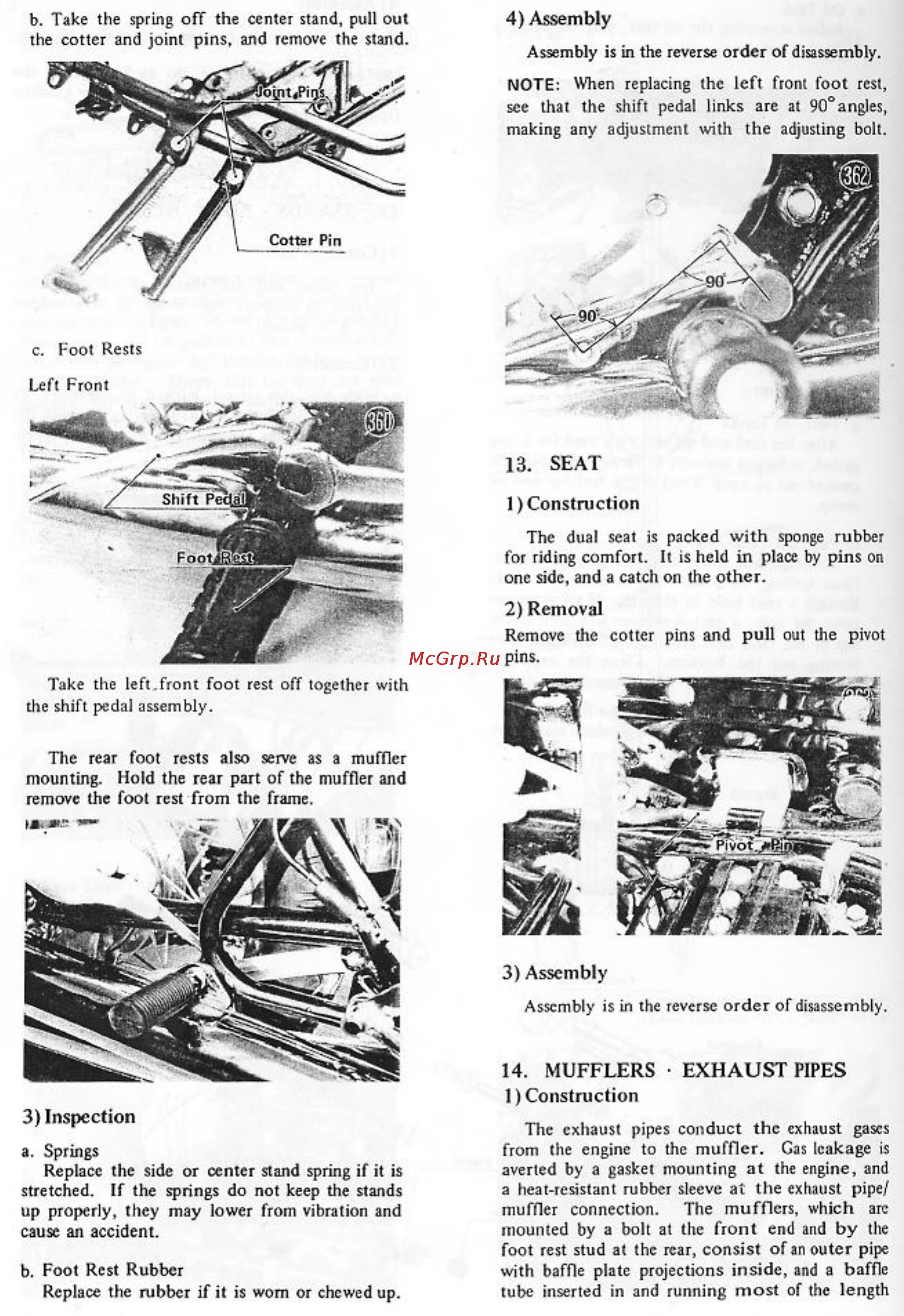

b Take the spring off the center stand pull out the cotter and joint pins and remove the stand 4 Assembly Assembly is in the reverse order of disassembly NOTE When replacing the left front foot see that the shift pedal links are at 90 ang making any adjustment with the adjusting bolt c Hoot Rests Left Front 13 SEAT 1 Construction The dual seat is packed with sponge rub for riding comfort It is held in place by pins one side and a catch on the other 2 Removal Remove the cotter pins and pull out the p pins Take the left front foot rest off together with the shift pedal assembly The rear foot rests also serve as a muffler mounting Hold the rear part of the muffler and remove the foot rest from the frame 3 Assembly Assembly is in the reverse order of disassembly 14 MUFFLERS EXHAUST PIPES 1 Construction 3 Inspection a Springs Replace the side or center stand spring if it is stretched If the springs do not keep the stands up properly they may lower from vibration and cause an accident The exhaust pipes conduct the exhaust g from the engine to the muffler Gas leakag averted by a gasket mounting at the engine a heat resistant rubber sleeve at the exhaust muffler connection The mufflers which mounted by a bolt at the front end and by foot rest stud at the rear consist of an outer
