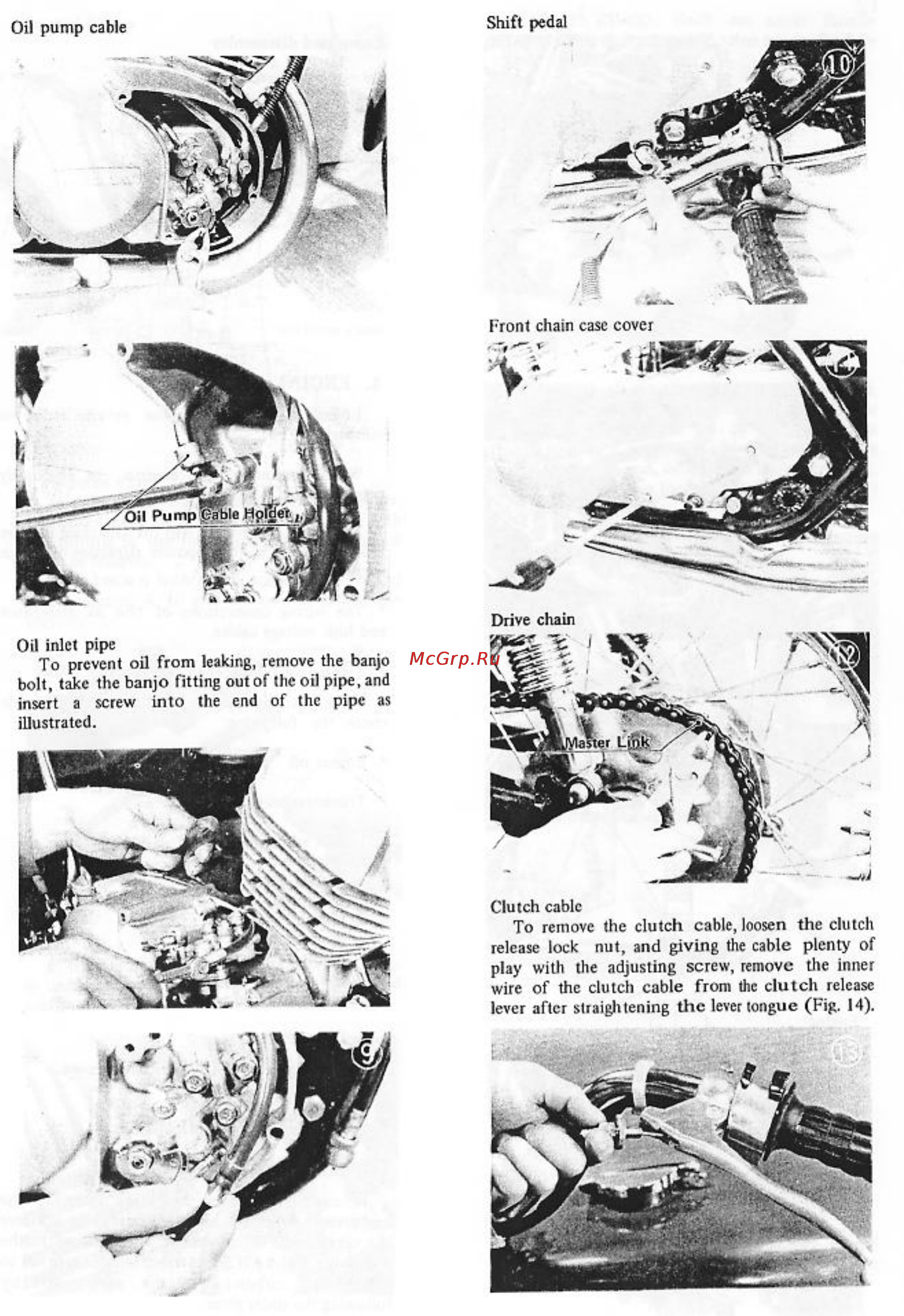

Oil pump cable Shift pedal Oil inlet pipe To prevent oil from leaking remove the banjo bolt take the banjo fitting out of the oil pipe and insert a screw into the end of the pipe as illustrated Clutch cable To remove the clutch cable loosen the clut release lock nut and giving the cable plenty play with the adjusting screw remove the inn wire of the clutch cable from the clutch relea lever after straightening the lever tongue Fig 14
