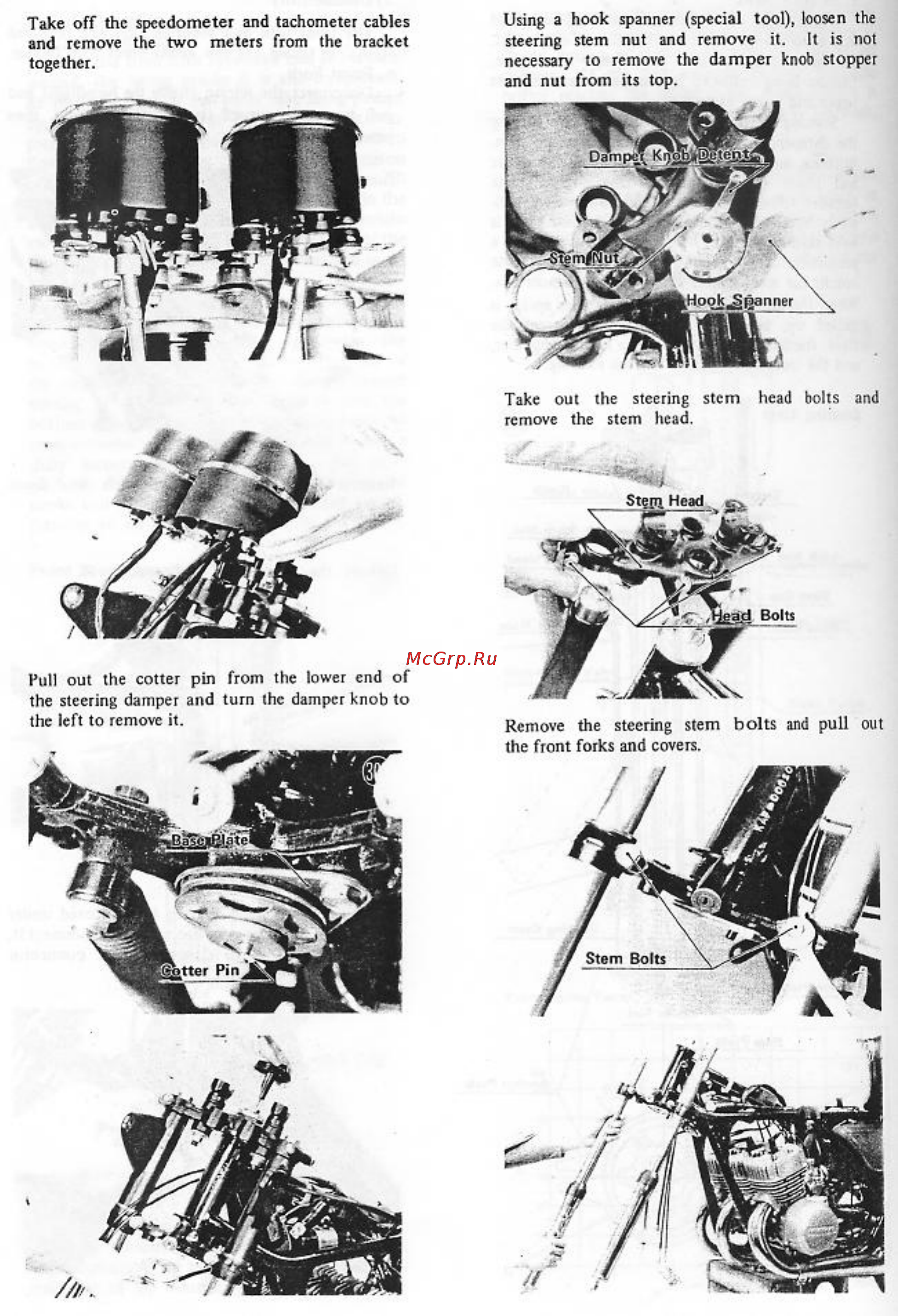

Take off the speedometer and tachometer cables and remove the two meters from the bracket together Using a hook spanner special tool loosen steering stem nut and remove it It is necessary to remove the damper knob stop and nut from its top Take out the steering remove the stem head Pull out the cotter pin from the lower end of the steering damper and turn the damper knob to the left to remove it stem head bolts Remove the steering stem bolts and pull the front forks and covers
