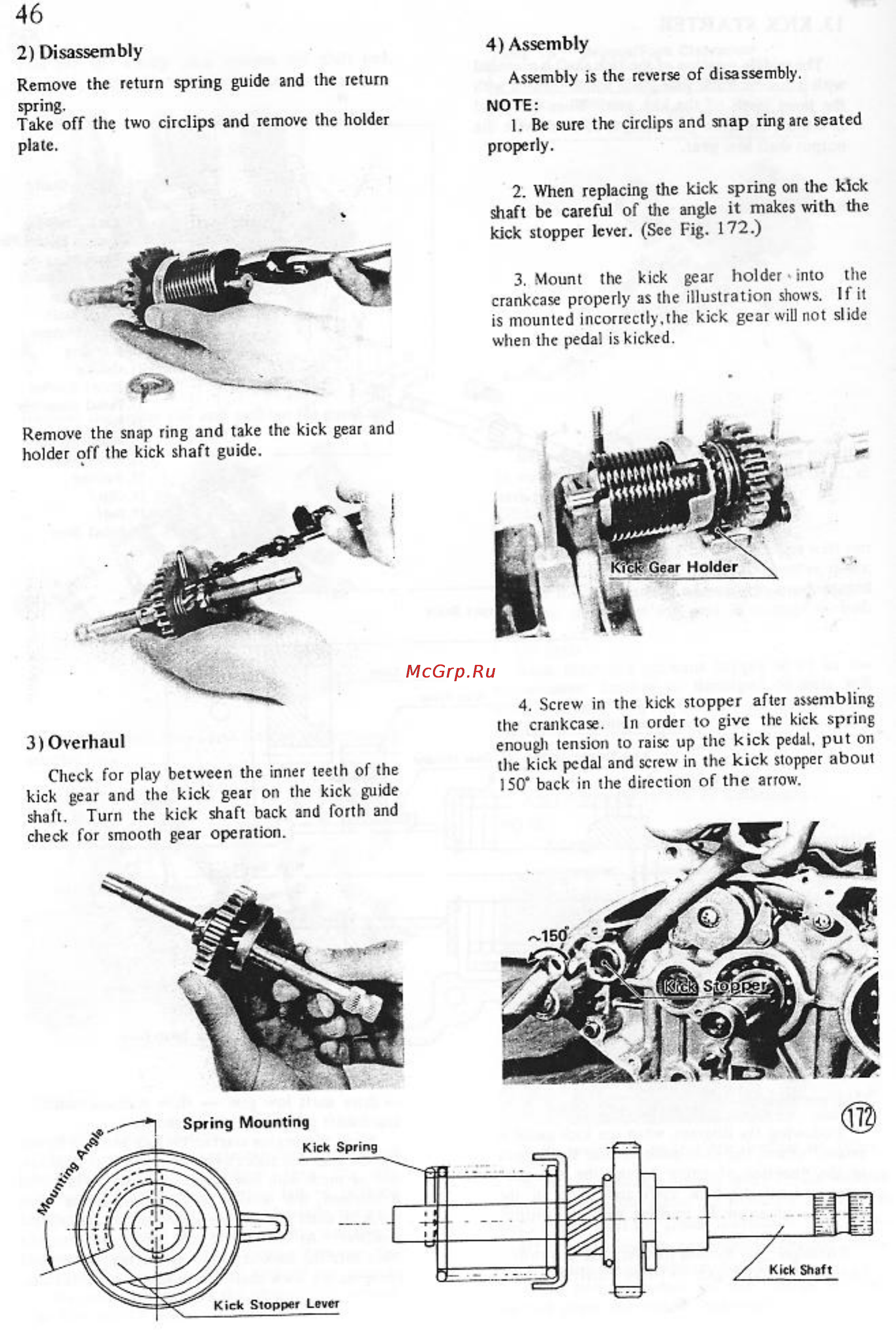

46 4 Assembly 2 Disassembly Remove the return spring guide and the return spring Take off the two circlips and remove the holder plate Assembly is the reverse of disassembly NOTE 1 Be sure the circlips and snap ring are seated properly 2 When replacing the kick spring on the kick shaft be careful of the angle it makes with die kick stopper lever See Fig 172 3 Mount the kick gear holder into the crankcase properly as the illustration shows If it is mounted incorrectly the kick gear will not slide when the pedal is kicked Remove the snap ring and take the kick gear and holder off the kick shaft guide 3 Overhaul Check for play between the inner teeth of the kick gear and the kick gear on the kick guide shaft Turn the kick shaft back and forth and check for smooth gear operation Kick Stopper Lever 4 Screw in the kick stopper after assemb the crankcase In order to give the kick spr enough tension to raise up the kick pedal put the kick pedal and screw in the kick stopper ab 150 back in the direction of the arrow
