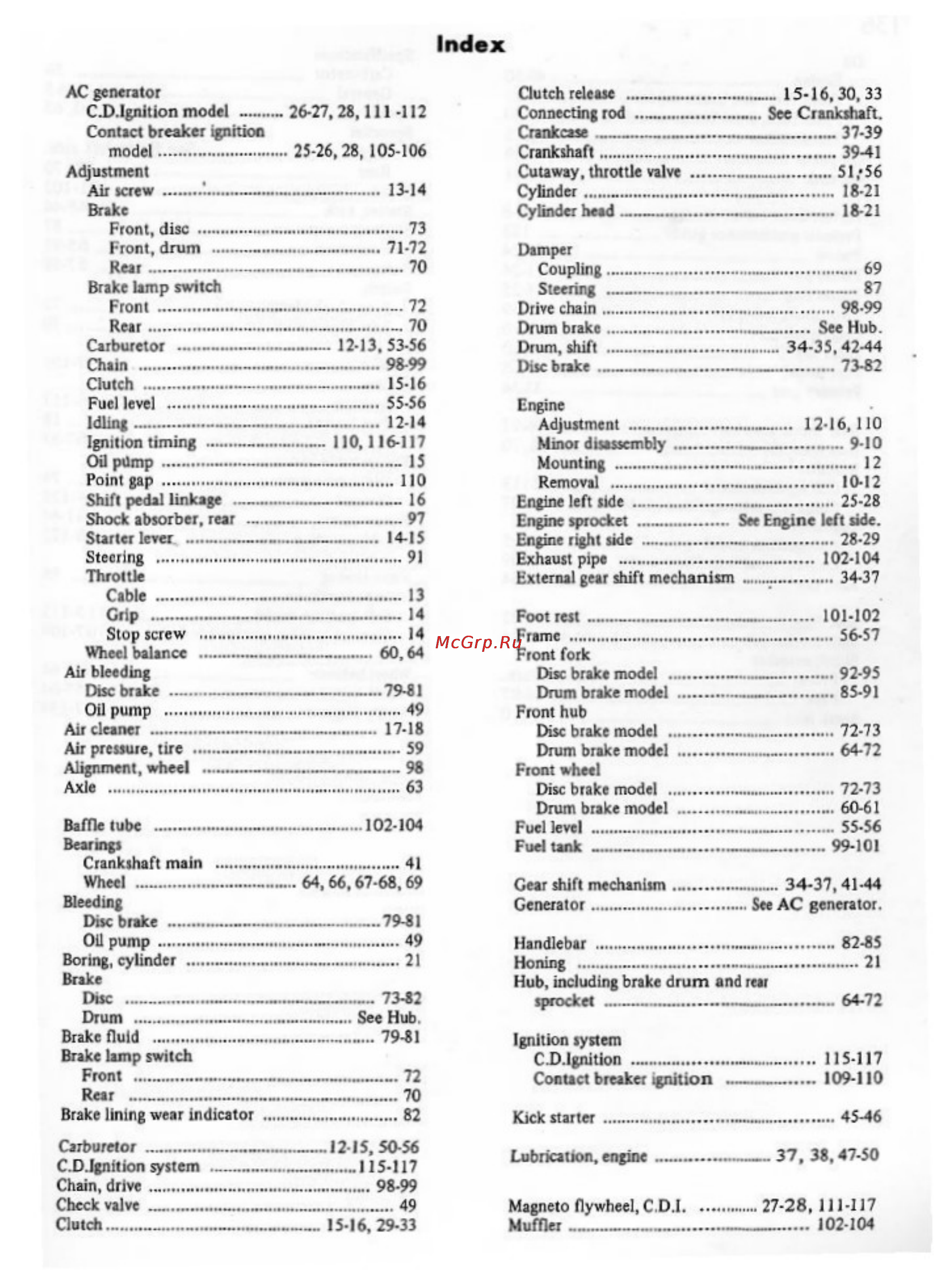

Index AC generator C D Ignition model 26 27 28 111 112 Contact breaker ignition model 25 26 28 105 106 Adjustment Air screw 13 14 Brake Front disc 73 Front drum 71 72 Rear 70 Brake lamp switch Front 72 Rear 70 Carburetor 12 13 53 56 Chain 98 99 Clutch 15 16 Fuel level 55 56 Idling 12 14 Ignition timing 110 116 117 Oil pUmp 15 Point gap 110 Shift pedal linkage 16 Shock absorber rear 97 Starter lever 14 15 Steering 91 Throttle Cable 13 Stop screw 14 Wheel balance 60 64 Air bleeding Disc brake 79 81 Oil pump 49 Air cleaner 17 18 Air pressure tire 59 Alignment wheel 98 Axle a 63 Baffle tube 102 104 Bearings Crankshaft main 41 Wheel 64 66 67 68 69 Bleeding Disc brake 79 81 Oil pump 49 Boring cylinder 21 Brake Disc 73 82 Drum See Hub Brake fluid 79 81 Brake lamp switch Front 72 Rear 70 Brake lining wear indicator 82 Carburetor 12 15 50 56 C D Ignition system 115 117 Chain drive 98 99 Check valve ___ 49 Clutch 15 16 29 33 Clutch release 15 16 30 33 Connecting rod See Crankshaft Crankcase __________ _________________ 37 39 Crankshaft 39 41 Cutaway throttle valve 51 56 Cylinder 18 21 Cylinder head 18 21 Damper Coupling 69 Steering 87 Drive chain 98 99 Drum brake See Hub Drum shift 34 35 42 44 Disc brake 73 82 Engine Adjustment 12 16 110 Minor disassembly 9 10 Mounting 12 Removal 10 12 Engine left side 25 28 Engine sprocket See Engine left side Engine right side 28 29 Exhaust pipe 102 104 External gear shift mechanism 34 37 Footrest 101 102 Frame 56 57 Front fork Disc brake model 92 95 Drum brake model 85 91 Front hub Disc brake model 72 73 Drum brake model 64 72 Front wheel Disc brake model 72 73 Drum brake model 60 61 Fuel level 55 56 Fuel tank 99 101 Gear shift mechanism 34 37 41 44 Generator See AC generator Handlebar 82 85 Honing 21 Hub including brake drum and rear sprocket 64 72 Ignition system C D Ignition 115 117 Contact breaker ignition 109 110 Kick starter 45 46 Lubrication engine 37 38 47 50 Magneto flywheel C D 1 27 28 111 117 Muffler 102 104
