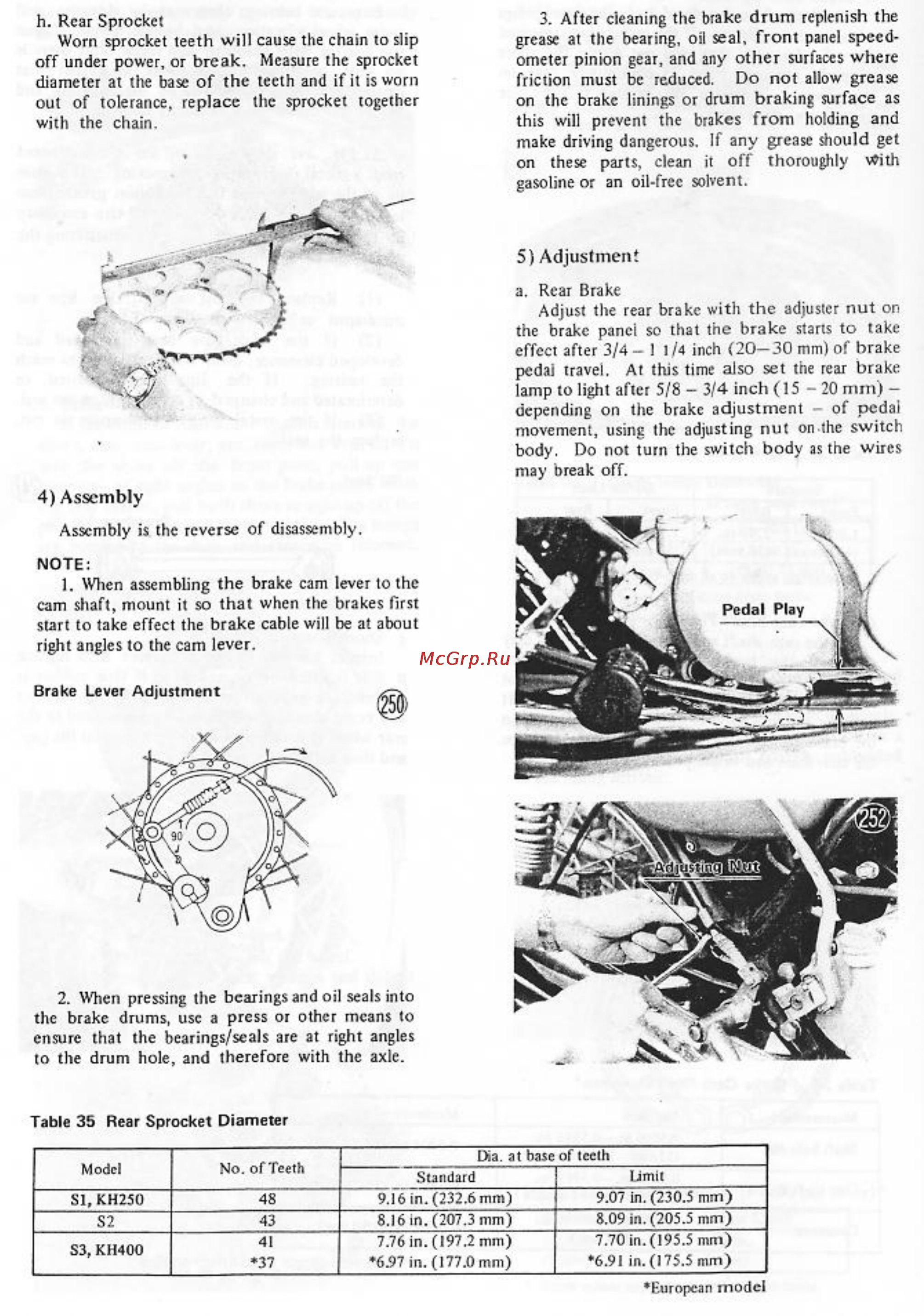

3 After cleaning the brake drum replenish th grease at the bearing oil seal front panel speed ometer pinion gear and any other surfaces wher friction must be reduced Do not allow greas on the brake linings or drum braking surface a this will prevent the brakes from holding an make driving dangerous If any grease should g on these parts clean it off thoroughly wi gasoline or an oil free solvent h Rear Sprocket Worn sprocket teeth will cause the chain to slip off under power or break Measure the sprocket diameter at the base of the teeth and if it is worn out of tolerance replace the sprocket together with the chain 5 Adjustment a Rear Brake Adjust the rear brake with the adjuster nut o the brake panel so that the brake starts to tak effect after 3 4 1 1 4 inch 20 30 mm of brak pedal travel At this time also set the rear brak lamp to light after 5 8 3 4 inch 15 20 mm depending on the brake adjustment of ped movement using the adjusting nut on the swit body Do not turn the switch body as the wir may break off 4 Assembly Assembly is the reverse of disassembly NOTE 1 Wien assembling the brake cam lever to the cam shaft mount it so that when the brakes first start to take effect the brake cable will be at about right angles to he cam lever 2 Wien pressing the bearings and oil seals into the brake drums use a press or other means to ensure that the bearings seals are at right angles to the drum hole and therefore with the axle Table 35 Rear Sprocket Diameter Model No of Teeth SI KH250 48 S2 43 41 37 S3 KH400 Dia at base of teeth Standard 9 16 in 232 6mm 8 16 in 207 3 mm 7 76 in 197 2 mm 6 97 in 177 0 mm Umit_____________ 9 07 in 230 5 mtn 8 09 in 205 5 mm 7 70 in 195 5 mm 6 91 in 175 5 mm
