Chapter 65 VLAN Stacking Commands
Ethernet Switch CLI Reference Guide
208
customers with VPN tunnels between their head offices and branch offices respectively. Both
have an identical VLAN tag for their VLAN group. The service provider can separate these
two VLANs within its network by adding tag 37 to distinguish customer A and tag 48 to
distinguish customer B at edge device 1 and then stripping those tags at edge device 2 as the
data frames leave the network.

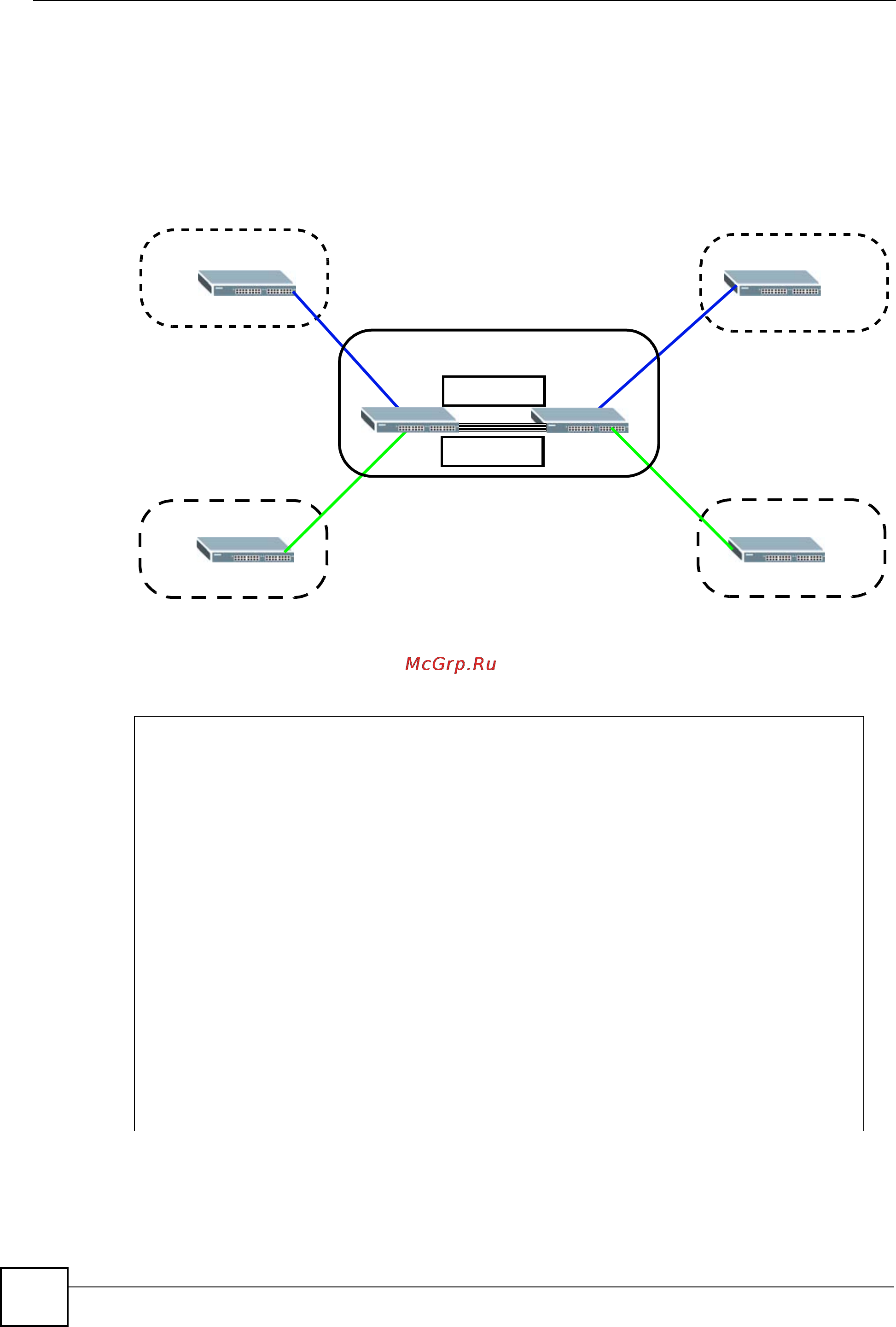

Figure 6 Example: VLAN Stacking
This example shows how to configure ports 1 and 2 on the Switch to tag incoming frames with
the service provider’s VID of 37 (ports are connected to customer A network). This example
also shows how to set the priority for ports 1 and 2 to 3.
sysname(config)# vlan-stacking
sysname(config)# vlan-stacking 8100
sysname(config)# interface port-channel 1-2
sysname(config-interface)# vlan-stacking role access
sysname(config-interface)# vlan-stacking spvid 37
sysname(config-interface)# vlan-stacking priority 3
sysname(config-interface)# exit
sysname(config)# exit
sysname# show vlan-stacking
Switch Vlan Stacking Configuration
Operation: active
STPID: 0x8100
Port Role SPVID Priority
01 access 37 3
02 access 37 3
03 access 1 0
04 access 1 0
05 access 1 0
....
VLAN 24
VLAN 24
SPN
VLAN 24
VLAN 24
Customer B
Customer B
Customer A
Customer A
A: 37, 24
B: 48, 24
