Chapter 12 DHCP Commands
Ethernet Switch CLI Reference Guide
61

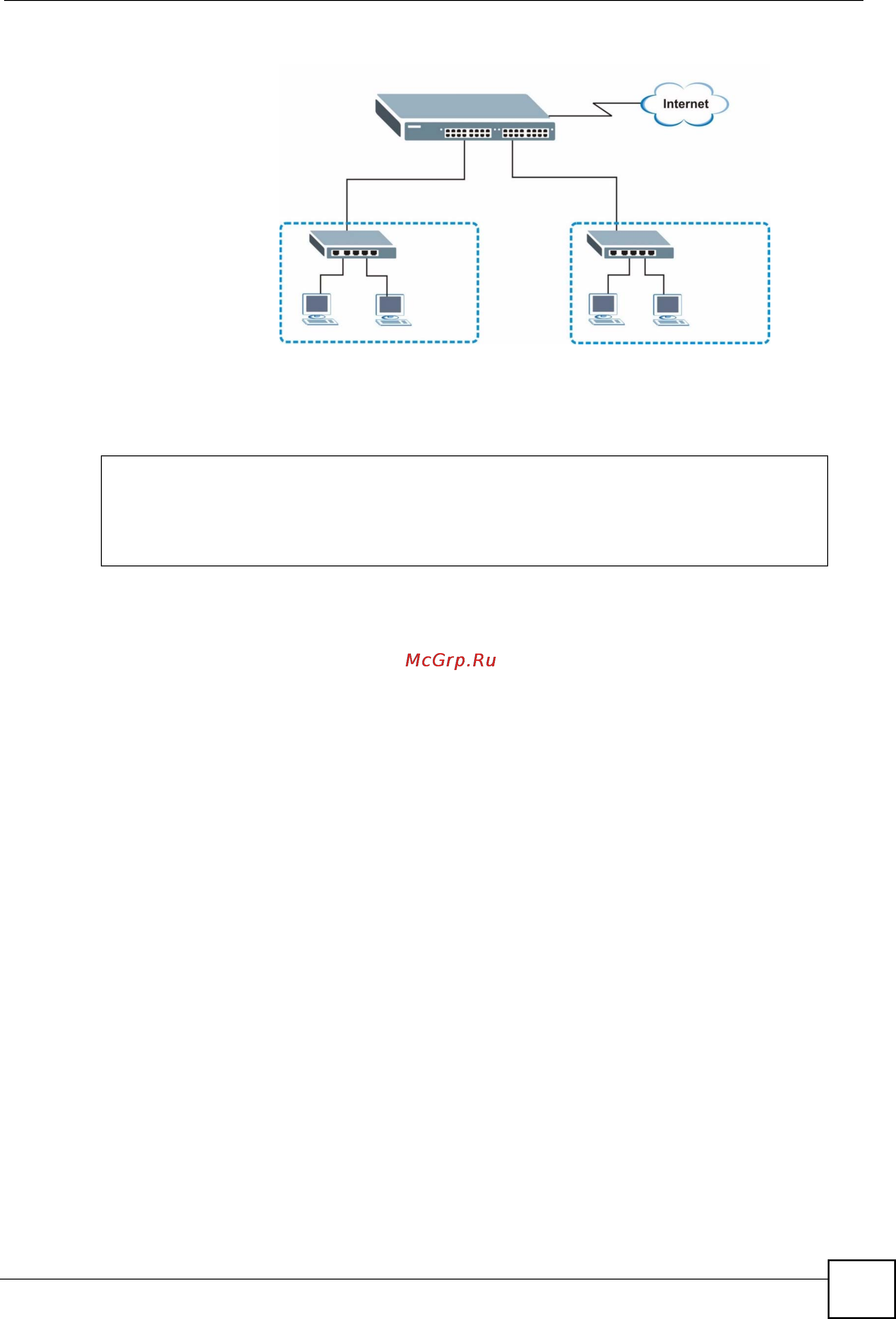

Figure 3 Example: DHCP Relay for Two VLANs
This example shows how to configure the DHCP server for VLAN 1 with the configuration
shown in Figure 3 on page 61. It also provides the DHCP clients with the IP address of the
default gateway and the DNS server.
sysname# configure
sysname(config)# dhcp server 1 starting-address 192.168.1.100
255.255.255.0 size-of-client-ip-pool 100 default-gateway 192.168.1.1
primary-dns 192.168.5.1
VLAN 1
VLAN 2
DHCP Pool:
192.168.1.100-192.168.1.200
DHCP Pool:
172.16.1.30-172.16.1.130
