C-18
SC846 Chassis Manual
CBL-0167L
with Single Port Assembly
(internal cable)
CBL-0166L
(external cable)
HBA
PRI_J0
PRI_J1
PRI_J2
SEC_J0 SEC_J1
SEC_J2
J17
WWN
Port B Expander 2
Power Card
PRI_J0
PRI_J1
PRI_J2
SEC_J0 SEC_J1
SEC_J2
J17
WWN
Port B Expander 2
Port A Expander 1

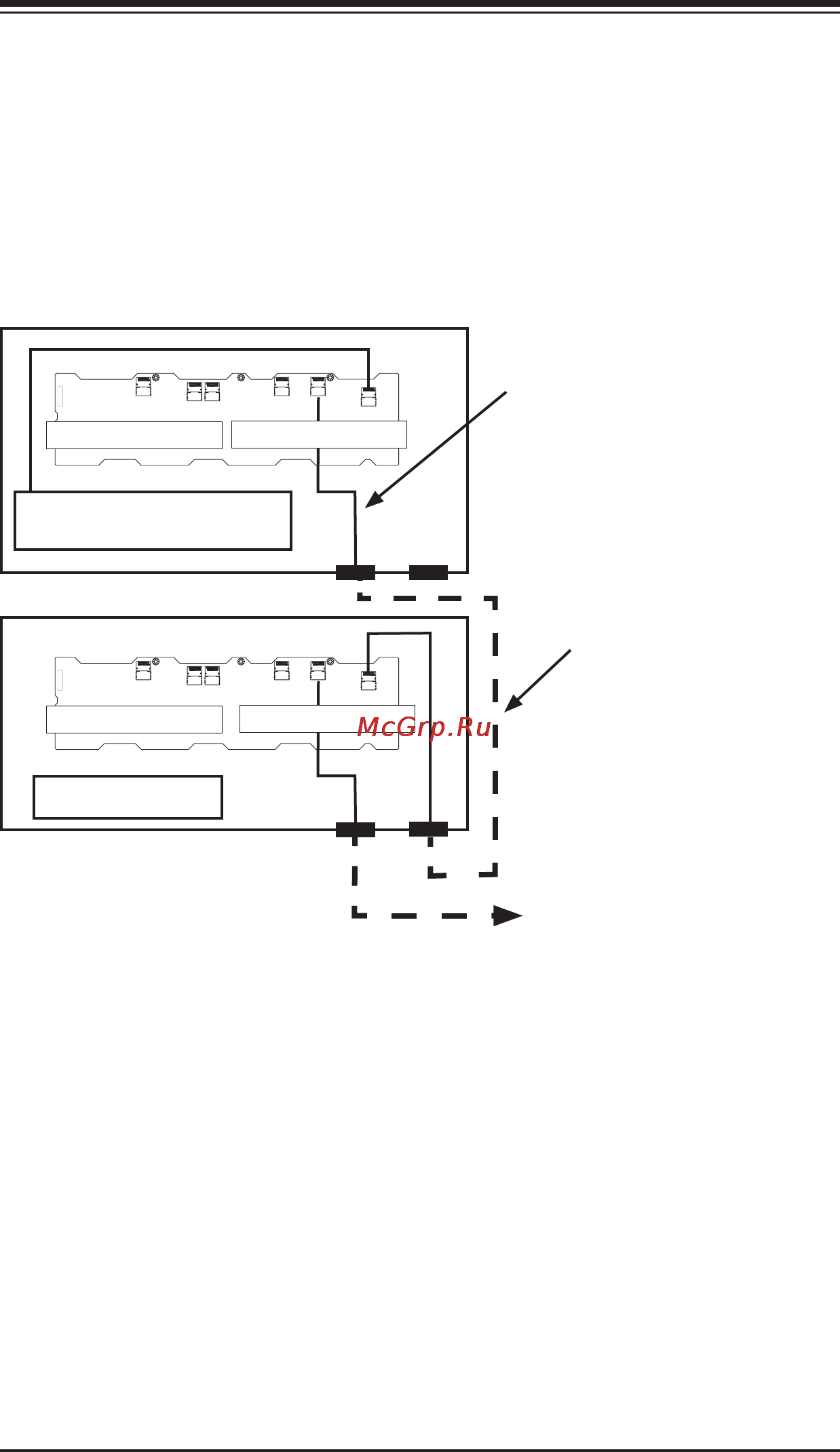

Connecting Multiple Backplanes in a Single Channel
Environment
This section describes the cables used when cascading from a single HBA. These
connections use CBL-0167L internal cables and CBL-0166L external cables.
Figure C-16: Single HBA Conguration
Port A Expander 1
