C-21
Appendix C: SAS-846EL Backplane Specications
Description: Internal cascading cable. Connects the backplane to the Host Bus
Adapter (HBA) or external port. Used in dual port environments.
Cable Name: SAS Dual-port Cable Assembly, 68/76 cm
Part #: CBL-0168L
Ports: Dual
Placement: Internal cable
Description: External cascading cable. Connects ports between servers. Use one
cable for single port connections and two cables for dual port connections.
Cable Name: SAS EL2/EL1 Cascading Cable (External), 68 cm
Part #: CBL-0166L
Ports: Single or Dual
Placement: External cable

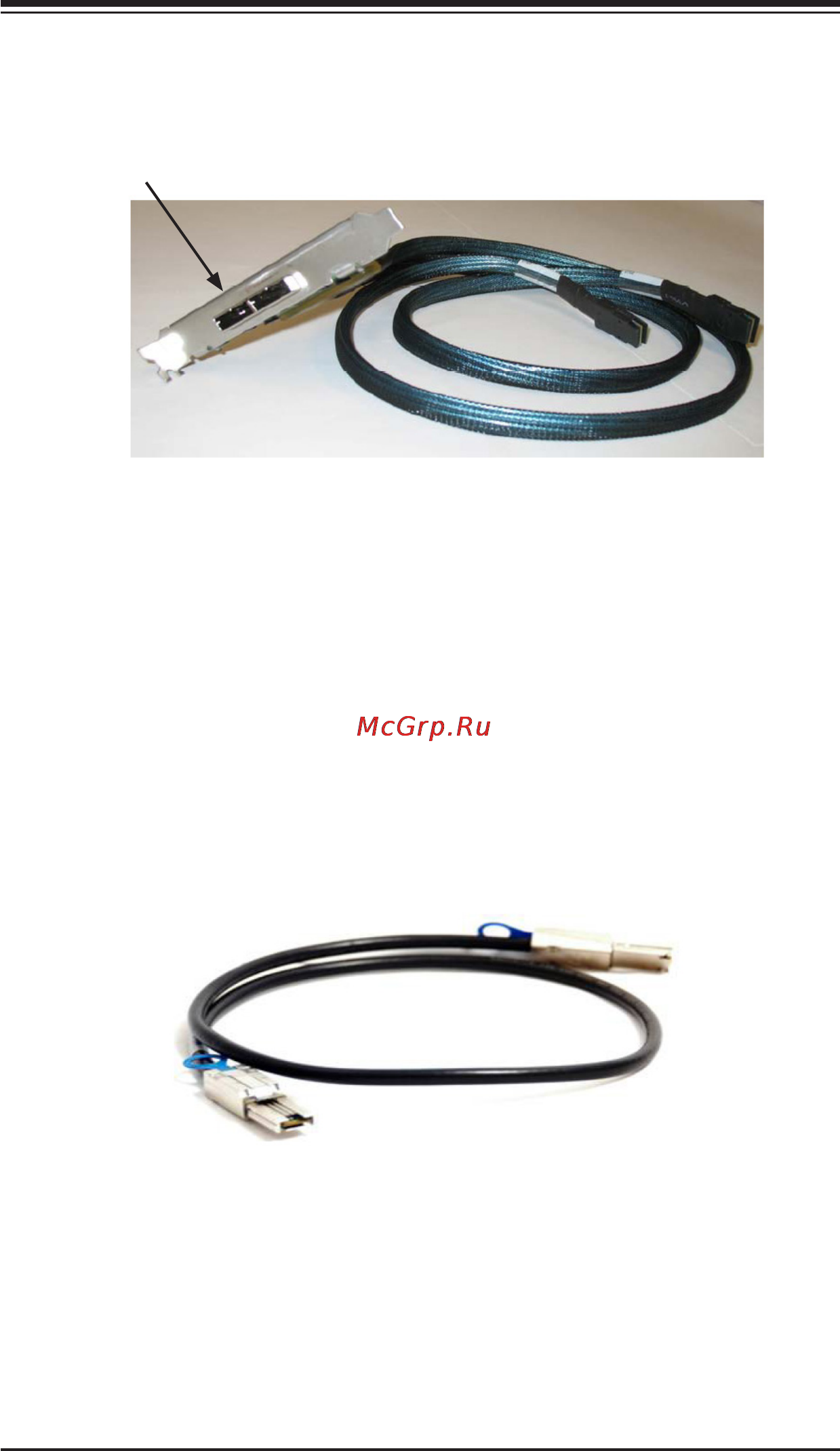

Dual HBA Conguration Cables
Dual Port Cable
Assembly
Figure C-21: External Cable (CBL-0166L)
Figure C-20: Dual Port Internal Cable (CBL-0168L)
