B-7
Appendix B: SAS-846TQ Backplane Specications

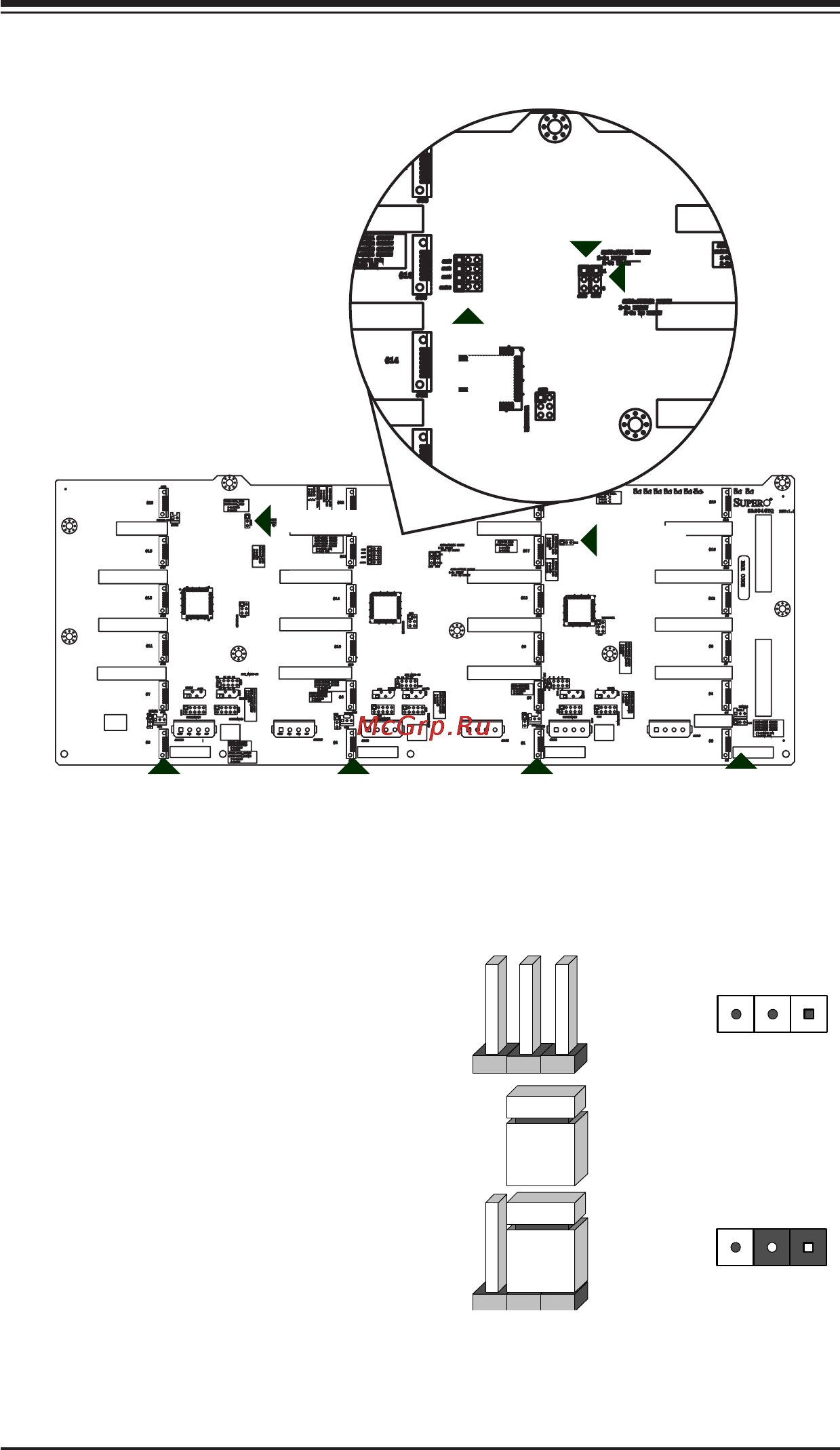

B-6 Rear Jumper Locations and Pin Denitions
JP129
JP50
JP35
JP97
JP100
JP99
JP98
JP64
JP84
JP63JP62JP61
Explanation of Jumpers
To modify the operation of the backplane,
jumpers can be used to choose between
optional settings. Jumpers create shorts
between two pins to change the function
of the connector. Pin 1 is identied with
a square solder pad on the printed circuit
board. Note: On two pin jumpers, "Closed"
means the jumper is on and "Open" means
the jumper is off the pins.
Connector
Pins
Jumper
Setting
3 2 1
3 2 1
Figure B-3: Rear Jumpers
