SC846 Chassis Manual
4-26
Installing the Hot-Swap Hard Drive Assembly
For the "B" models of the SC846 chassis, two hot-swap hard drives can be installed
using the kit with part number MCP-220-84606-0N. Use the picture below to identify
the components which are required.

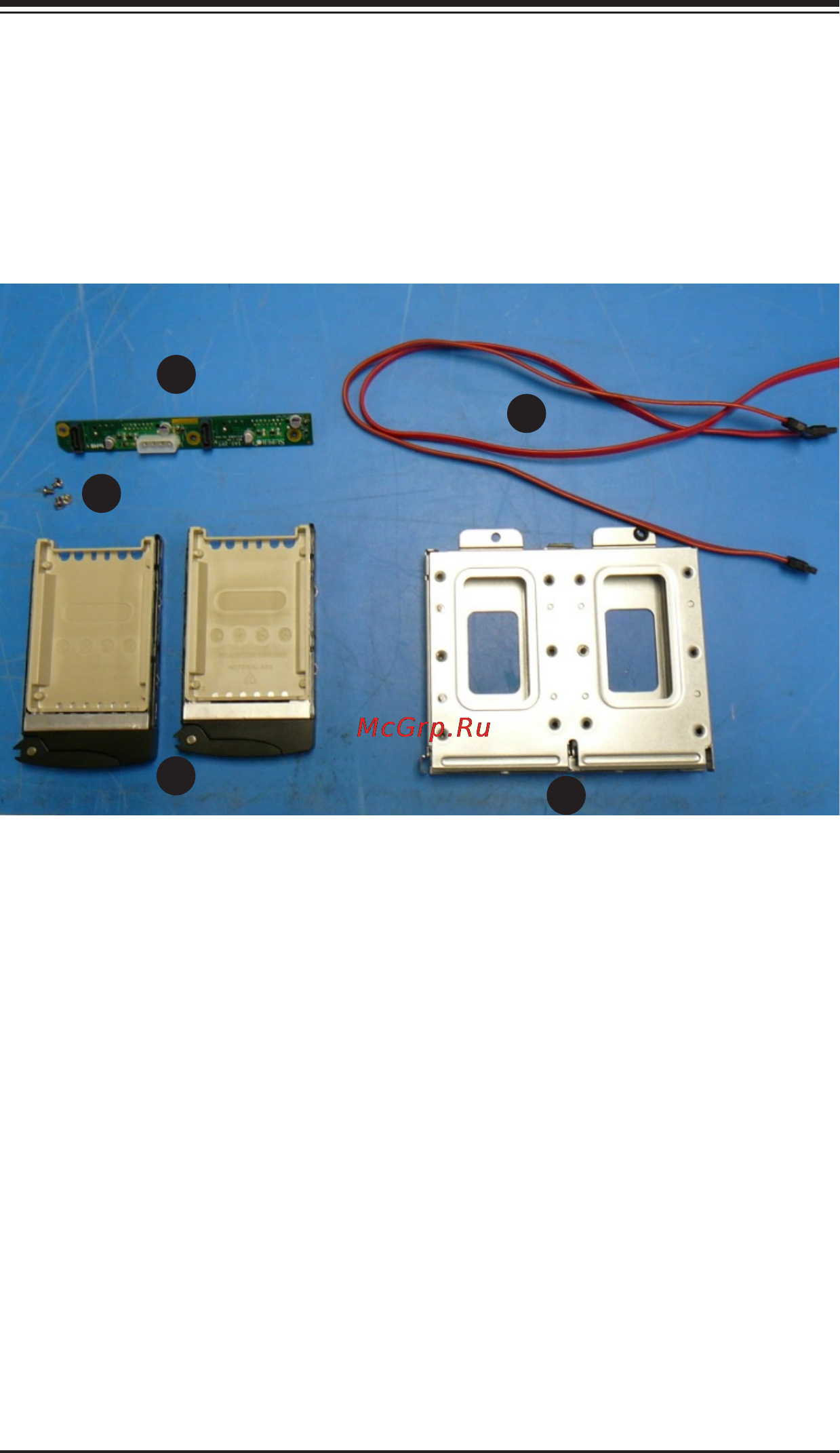

Figure 4-31 SC846B Hard Drive Assembly Components
Hard Drive Assembly Components
A. Two 2.5" hard drive carriers
B. Hard drive cage
C. Two SATA cables
D. Hard drive backplane
E. Mounting screws
1
A
1
B
1
C
1
D
1
E
