B-11
Appendix B: SAS-846TQ Backplane Specications
B-7 Front Connectors and LED Indicators
Front SAS/SATA Connectors
Front
Connector
SAS Drive
Number
Front
Connector
SAS Drive
Number
SAS #0 SAS/SATA HDD #0 SAS #12 SAS/SATA HDD #12
SAS #1 SAS/SATA HDD #1 SAS #13 SAS/SATA HDD #13
SAS #2 SAS/SATA HDD #2 SAS #14 SAS/SATA HDD #14
SAS #3 SAS/SATA HDD #3 SAS #15 SAS/SATA HDD #15
SAS #4
SAS/SATA HDD #4
SAS #16
SAS/SATA HDD #16
SAS #5 SAS/SATA HDD #5 SAS #17 SAS/SATA HDD #17
SAS #6 SAS/SATA HDD #6 SAS #18 SAS/SATA HDD #18
SAS #7 SAS/SATA HDD #7 SAS #19 SAS/SATA HDD #19
SAS #8 SAS/SATA HDD #8 SAS #20 SAS/SATA HDD #20
SAS #9 SAS/SATA HDD #9 SAS #21 SAS/SATA HDD #21
SAS #10 SAS/SATA HDD #10 SAS #22 SAS/SATA HDD #22
SAS #11 SAS/SATA HDD #11 SAS #23 SAS/SATA HDD #23
SAS #12
SAS #21
SAS #17
SAS #13
SAS #9
SAS #23
SAS #19
SAS #15
SAS #11
SAS #7
SAS #3
SAS #5
SAS #22
SAS #18
SAS #14
SAS #10
SAS #6
SAS #2SAS #1
SAS #8
SAS #4
SAS #0
SAS #16
SAS #20
FAIL #0
ACT #0

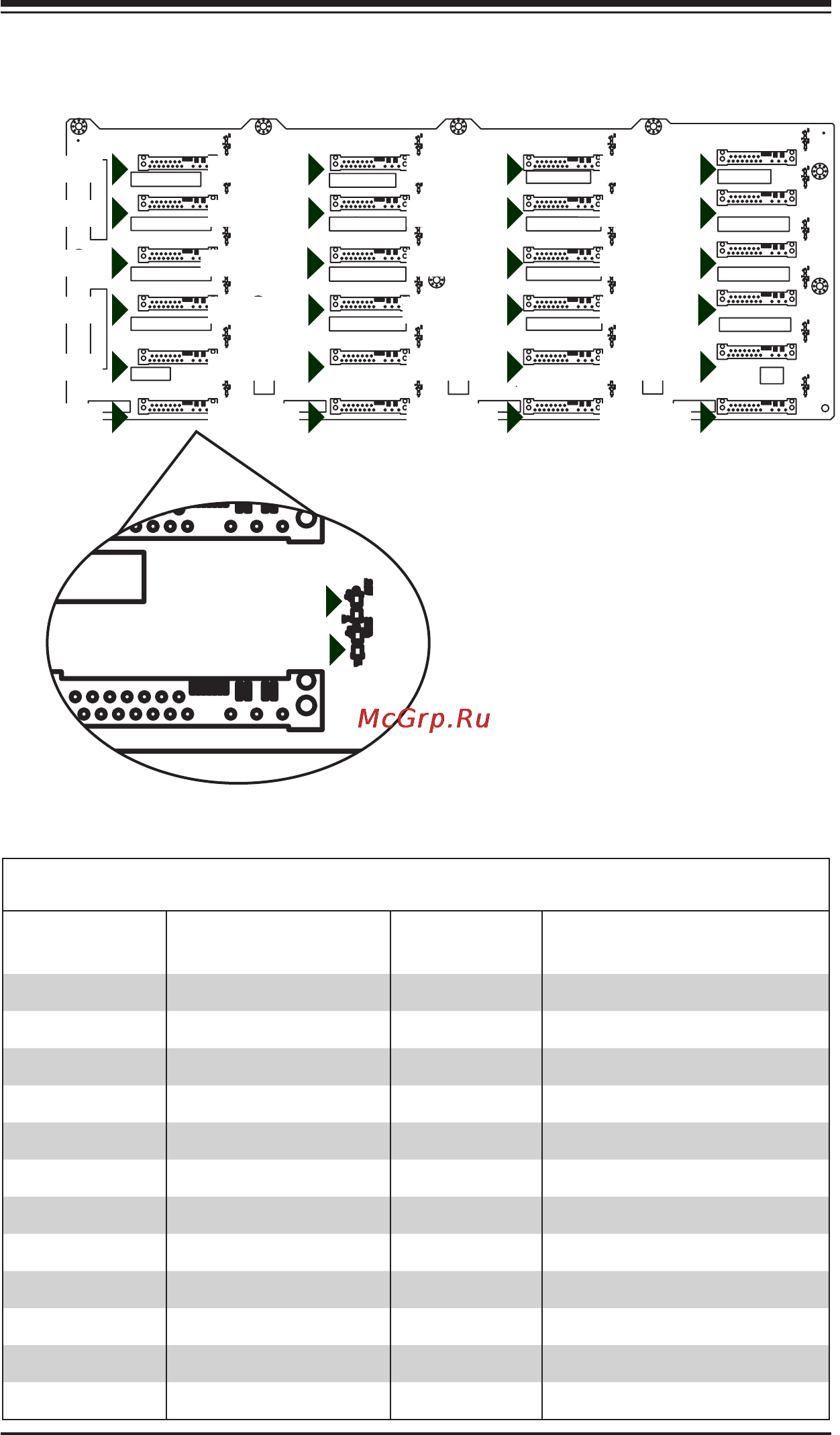

Figure B-5: Front Connectors and LEDs
