C-22
SC846 Chassis Manual
Cascading allows the system to access data at a faster rate by allowing several
backplanes to share resources to reduce latency time.
The rst backplane in a cascaded system requires a motherboard and HBA. Other
servers require a power control card with no motherboard and no HBA. For more
information, see the SC846 Chassis Manual available at www.supermicro.com.

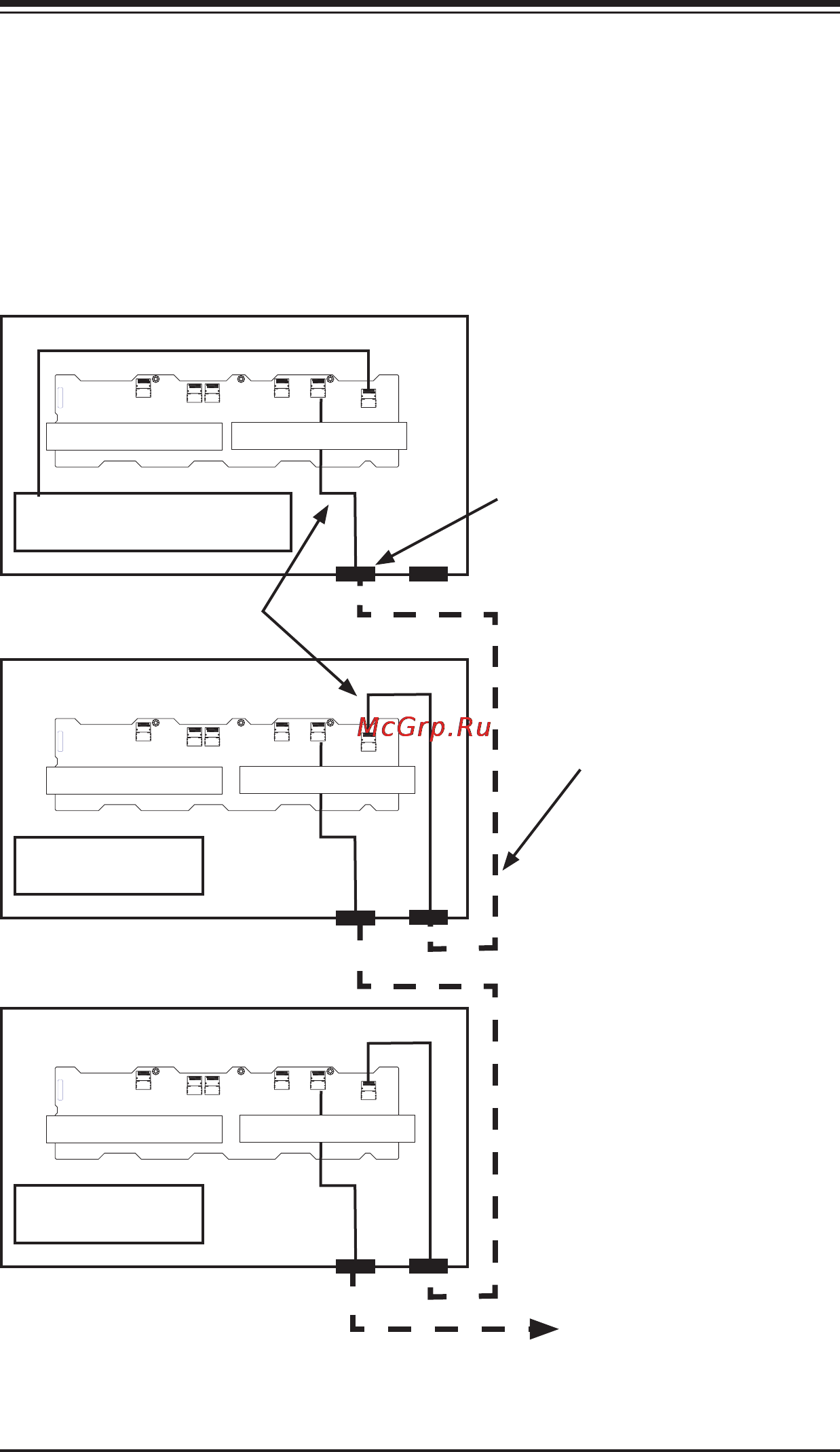

C-14 Supported Cascading Congurations
Cable 0167L
(internal cable)
Cable 0166L
(External cable)
Single Port Cable
Assembly
HBA
PRI_J0
PRI_J1
PRI_J2
SEC_J0 SEC_J1
SEC_J2
J17
WWN
Port B Expander 2
Port A Expander 1
Power Card
PRI_J0
PRI_J1
PRI_J2
SEC_J0 SEC_J1
SEC_J2
J17
WWN
Port B Expander 2
Port A Expander 1
Power Card
PRI_J0
PRI_J1
PRI_J2
SEC_J0 SEC_J1
SEC_J2
J17
WWN
Port B Expander 2
Port A Expander 1
Figure C-22: Simple Cascaded Conguration
