C-23
Appendix C: SAS-846EL Backplane Specications
Server System with Single SAS HBA
The expanders allow horizontal branching. This conguration also applies to dual
ports.
Cable 0166L
(External cable)
Single Port Cable
Assembly
HBA
PRI_J0
PRI_J1
PRI_J2
SEC_J0 SEC_J1
SEC_J2
J17
WWN
Port A Expander 1
Power Card
PRI_J0
PRI_J1
PRI_J2
SEC_J0 SEC_J1
SEC_J2
J17
WWN
Port A Expander 1
Power Card
PRI_J0
PRI_J1
PRI_J2
SEC_J0 SEC_J1
SEC_J2
J17
WWN
Port A Expander 1
Power Card
PRI_J0
PRI_J1
PRI_J2
SEC_J0 SEC_J1
SEC_J2
J17
WWN
Port A Expander 1
Power Card
PRI_J0
PRI_J1
PRI_J2
SEC_J0 SEC_J1
SEC_J2
J17
WWN
Power Card
PRI_J0
PRI_J1
PRI_J2
SEC_J0 SEC_J1
SEC_J2
J17
WWN
Port A Expander 1
Cable 0167L
(Internal cable)
Port A Expander 1

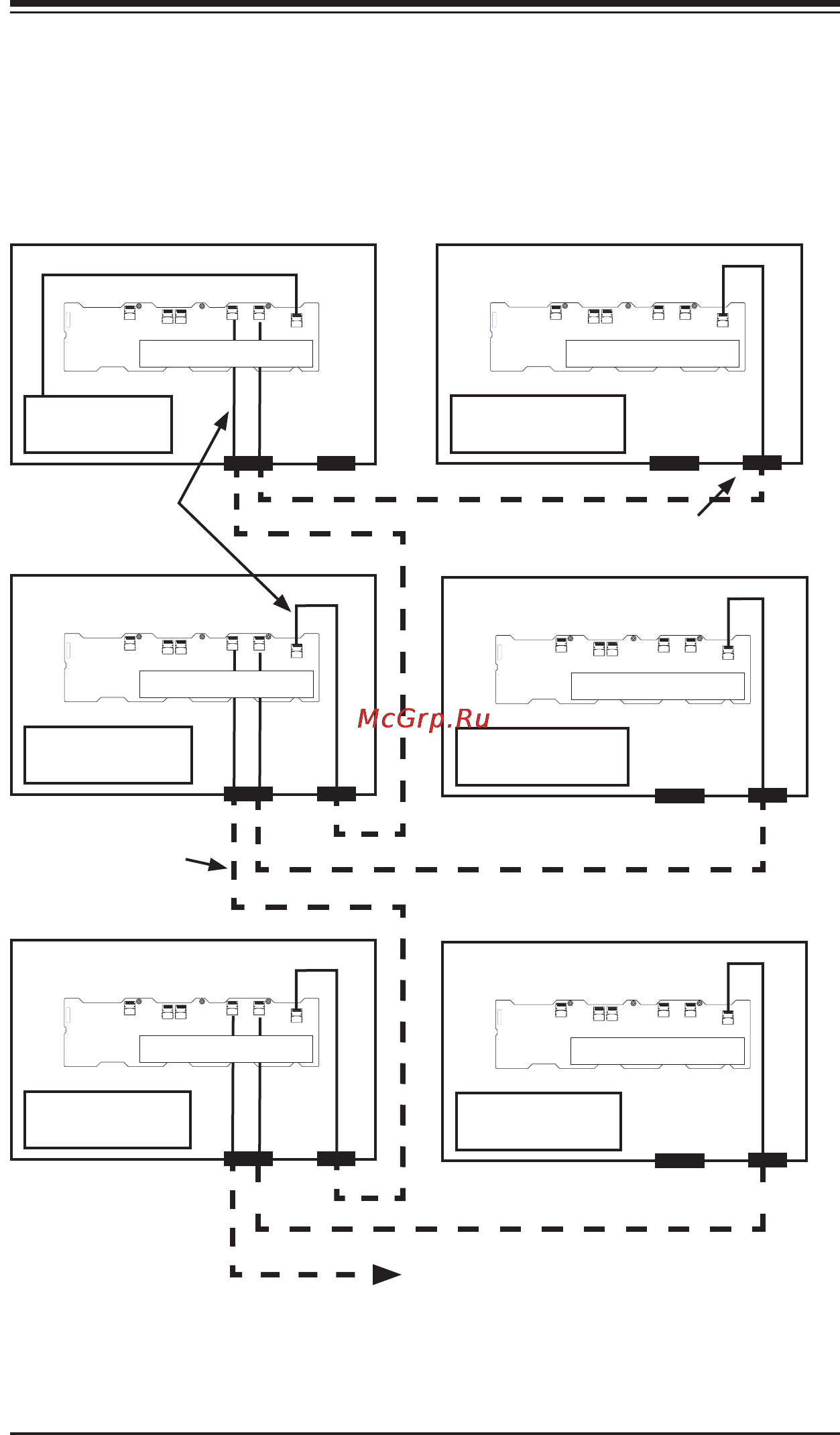

Figure C-23: Cascaded Conguration with Horizontal Branching
