4-11
Chapter 4: Chassis Setup and Maintenance
4-7 Installing the Air Shroud
Air shrouds concentrate airow to maximize fan efciency. The SC846 chassis air
shroud does not require screws to set up.
Installing the Air Shroud
1. Power down the system as described in section 4-2 and remove the cover as
described in Section 4-1.
2. Conrm that your air shroud matches your chassis model. Each shroud is labeled
SC846LP, SC846RC, or SC846U.
3. Disconnect the power supply, lay the chassis on a at surface, and open the
chassis cover.
4. Place air shroud in the chassis. The air shroud ts behind the two fans closest
to the power supply.

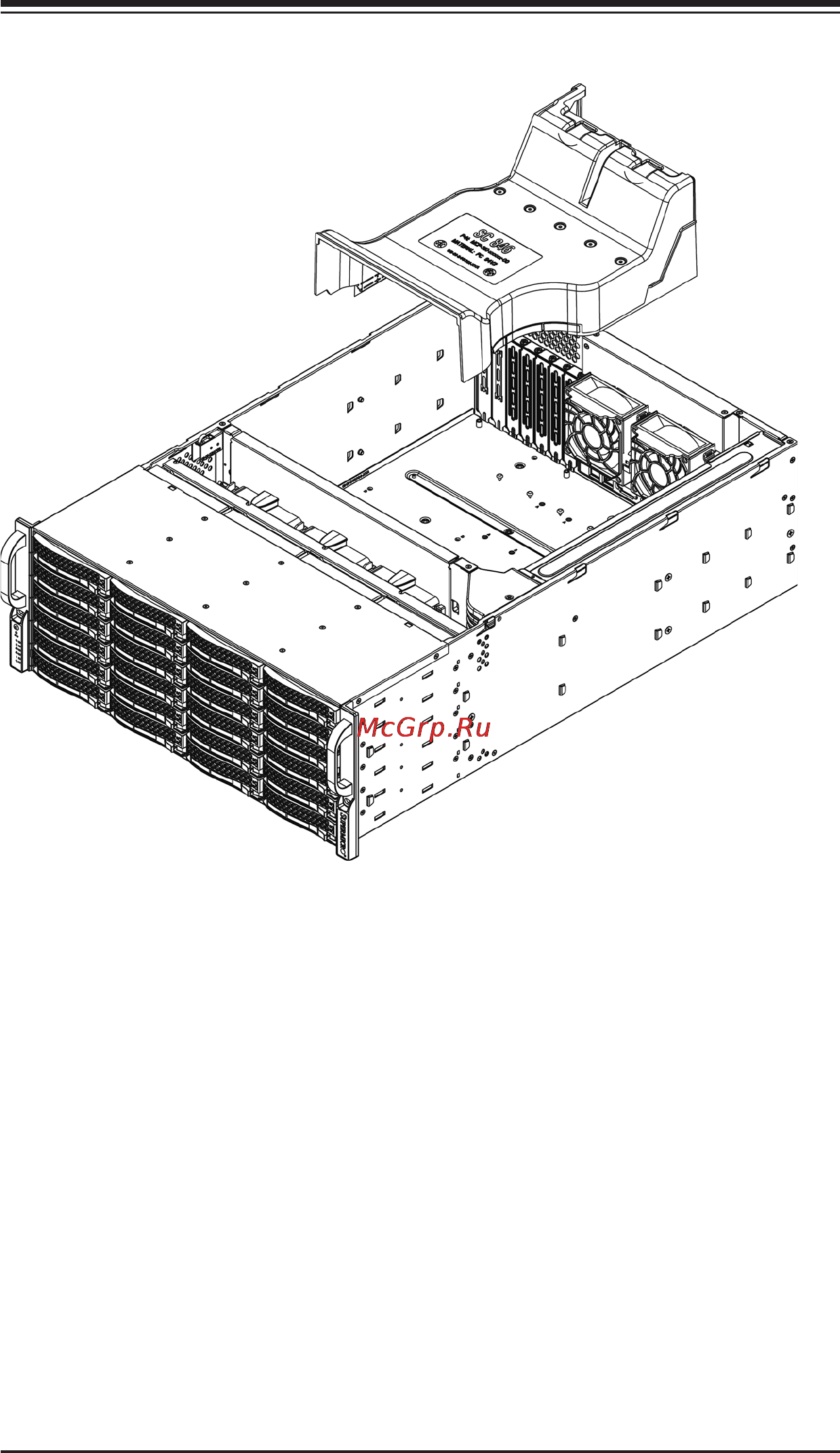

Figure 4-13. Air Shroud for SC846LP Chassis
