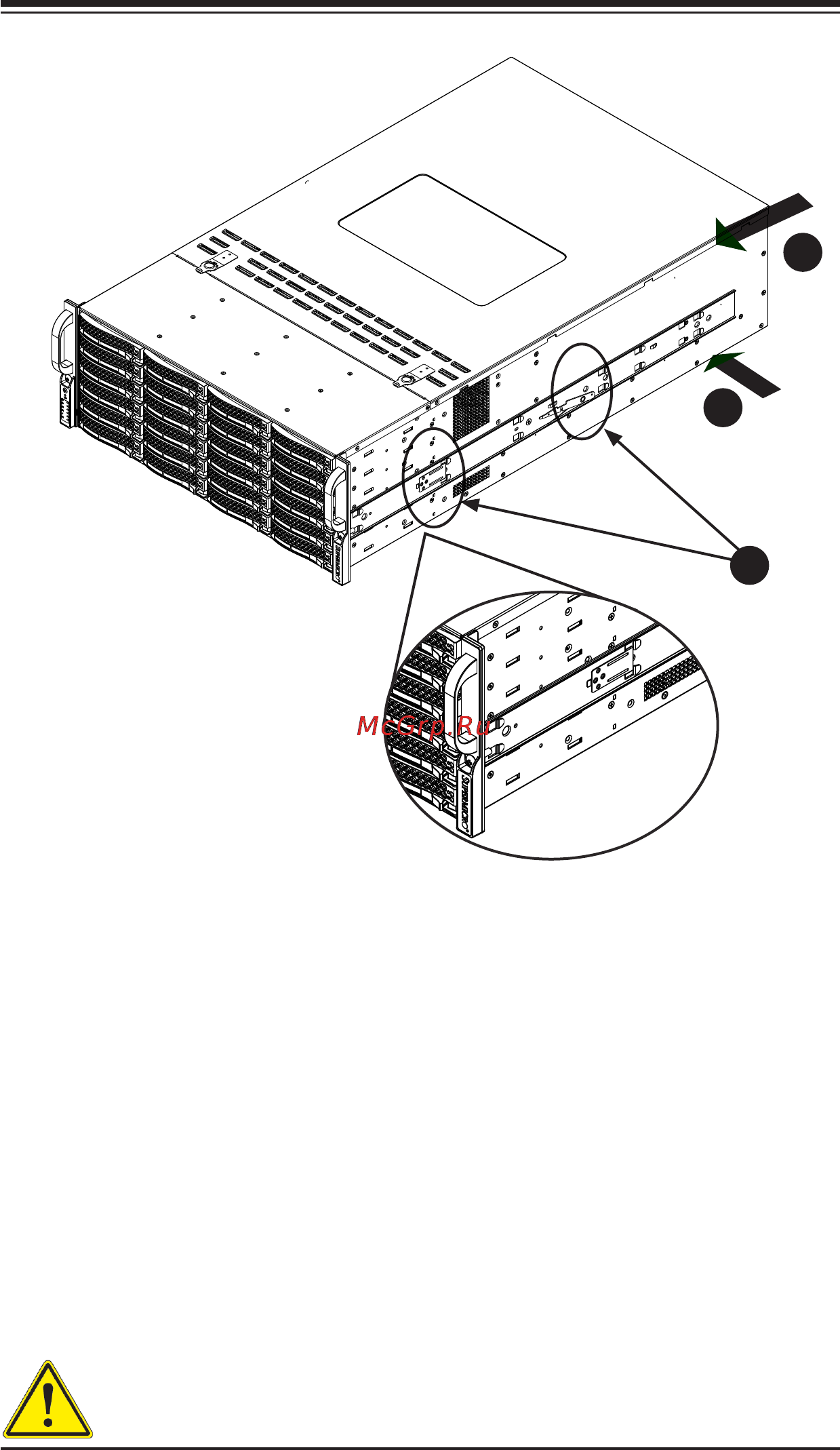

Figure 5-2. Installing the Inner Rails

Installing the Inner Rails on the Chassis

Installing the Inner Rails

1. Identify the left and right side inner rails. Place the correct inner rail on the side

of the chassis, aligning the hooks of the chassis with the inner rail holes. Make

sure the rail faces "outward" so that it will t with the rack's mounting bracket.

2. Slide the rail toward the front of the chassis to hook the inner rail onto the side

of the chassis.

3. If desired, secure the rail with two at head M4 x 4mm screws as illustrated.

4. Repeat for the other inner rail.

Warning: Do not pick up the server by the front handles. They are designed

to pull the system from a rack only.
