Supermicro CSE-846TQ-R900B [80/160] Removing the chassis from the rack
![Supermicro SC846E16-R1200B [80/160] Removing the chassis from the rack](/views2/1190280/page80/bg50.png)
SC846 Chassis Manual
5-8

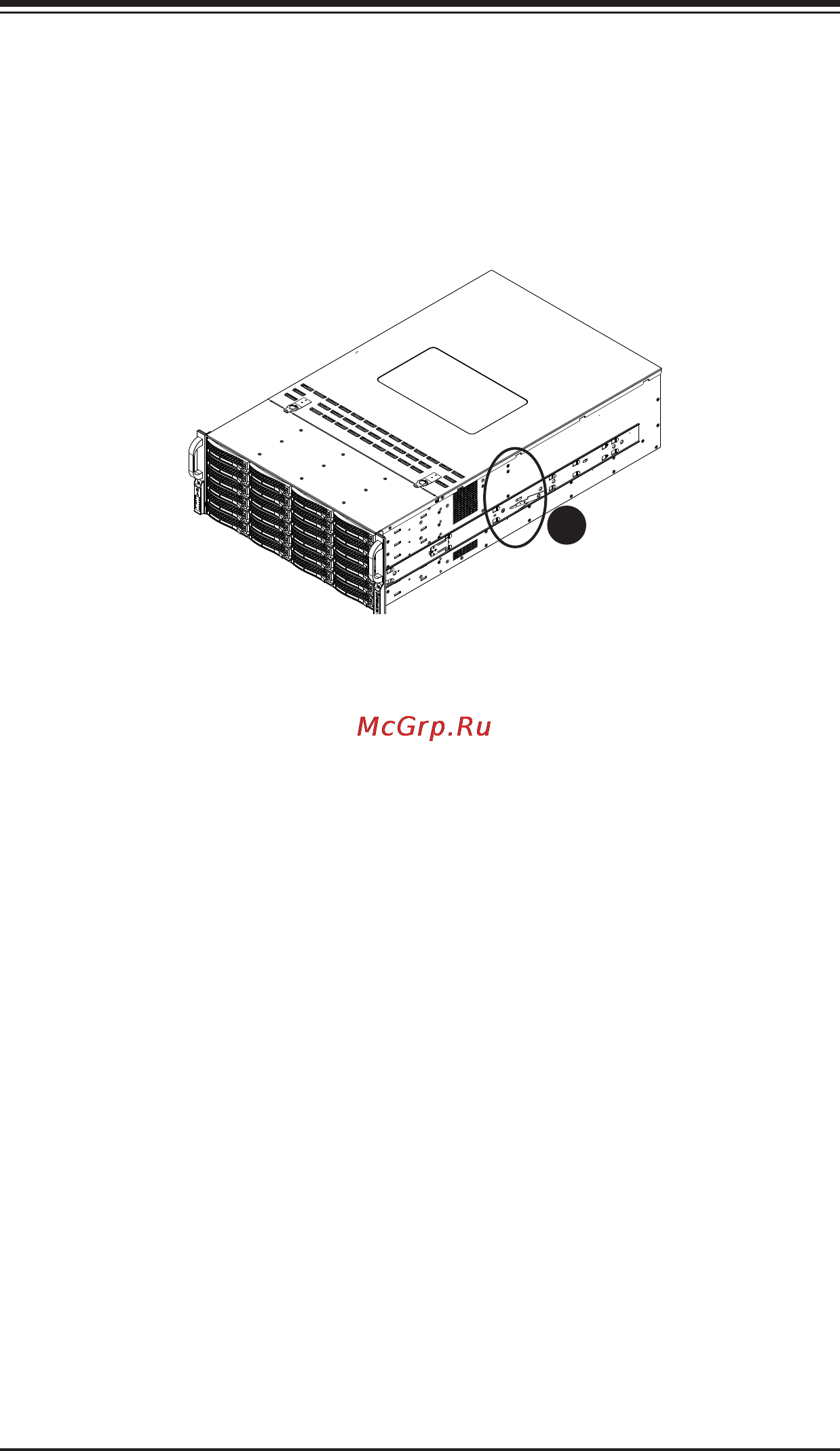

Figure 5-5. Removing the Chassis From the Rack
Removing the Chassis from the Rack
Caution! It is dangerous for a single person to off-load the heavy chassis from the
rack without assistance. Be sure to have sufcient assistance supporting the chassis
when removing it from the rack. Use a lift.
Removing the Chassis from the Rack
1. Pull the chassis forward out the front of the rack until it stops.
2. Press the release latches on each of the inner rails downward simultaneously
and move the chassis forward in the rack.
1
2
