ioLogik 2500 Series Installation

2-3

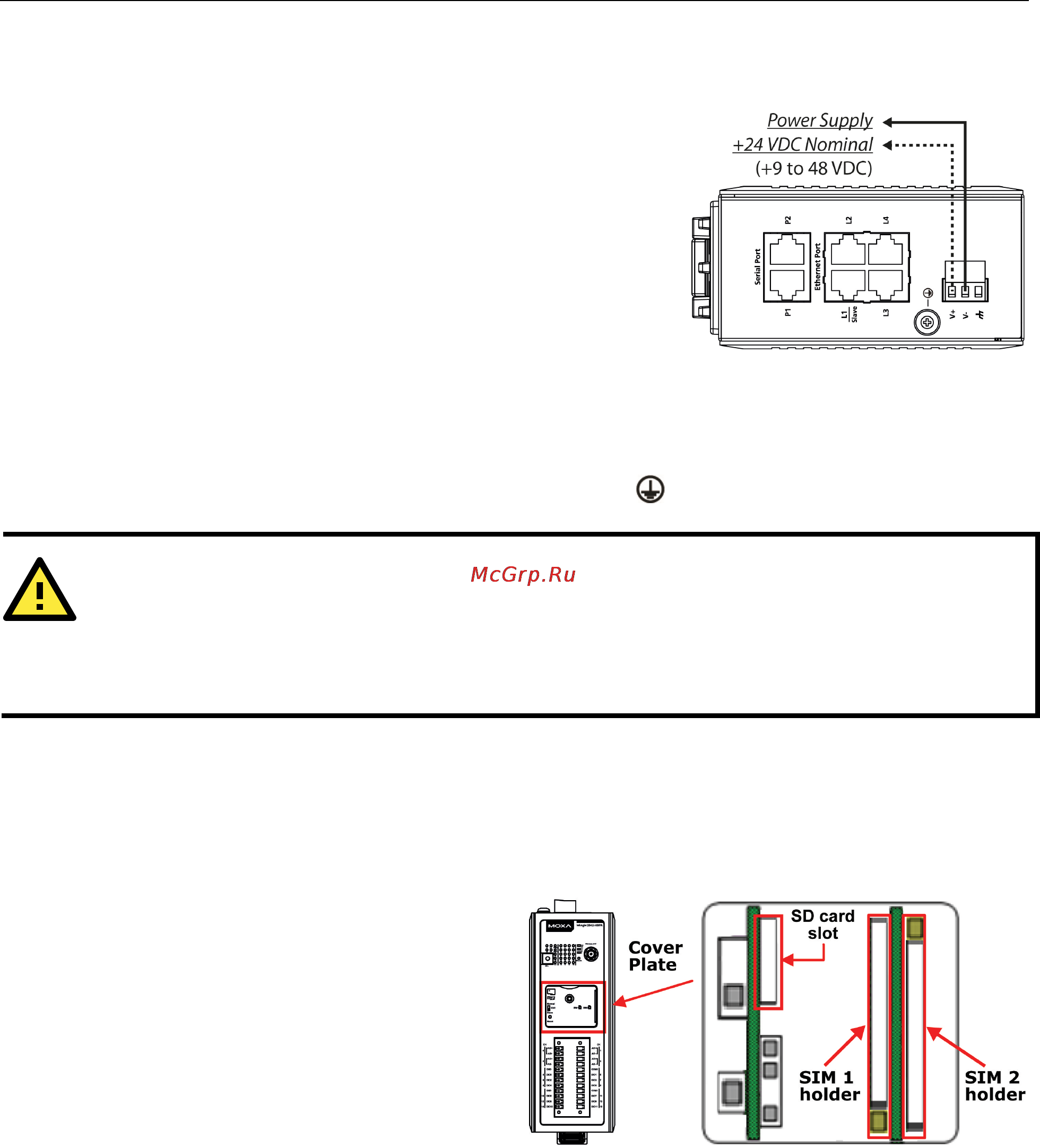

Powering on the ioLogik 2500

The ioLogik 2500 can receive power from a 9 to 48 VDC

power source. Input power is applied to the positive (V+)

and negative

(V-) terminals on the connector.

After connecting the ioLogik 2500 to the power supply, it

will take 30 to 60 seconds for the operating system to boot

up. The green Ready LED will illuminate continuously until

the operating system is ready.

Grounding the Unit

The ioLogik 2500 is equipped with a ground connector labeled .

ATTENTION

Be sure to note

the maximum possible current for each power wire and common wire. Observe all electrical

codes dictating the maximum current

allowable for each wire size. If currents exceed the maximum rating

the wires will

overheat, and may cause serious damage to the equipment. For safety reasons, wires

connecting the power supply should be at least 2 mm in diameter (e.g., 12 gauge).

Installing a microSD Card and SIM Cards

(cellular models only)

The ioLogik 2500 supports a single microSD card

and two SIM cards (cellular models only). The

card slots are located inside the ioLogik 2500, as

shown here. The card slot is hidden

beneath a

ver plate attached by a screw that must first

be removed before the slot can be accessed.

After removing the screw holding the cover plate

in place you can insert or remove the

microSD/SIM cards. Be sure to refasten the

cover plate when you are done.
