ioLogik 2500 Series The IOxpress Utility
3-2
Application Interface
Main screen

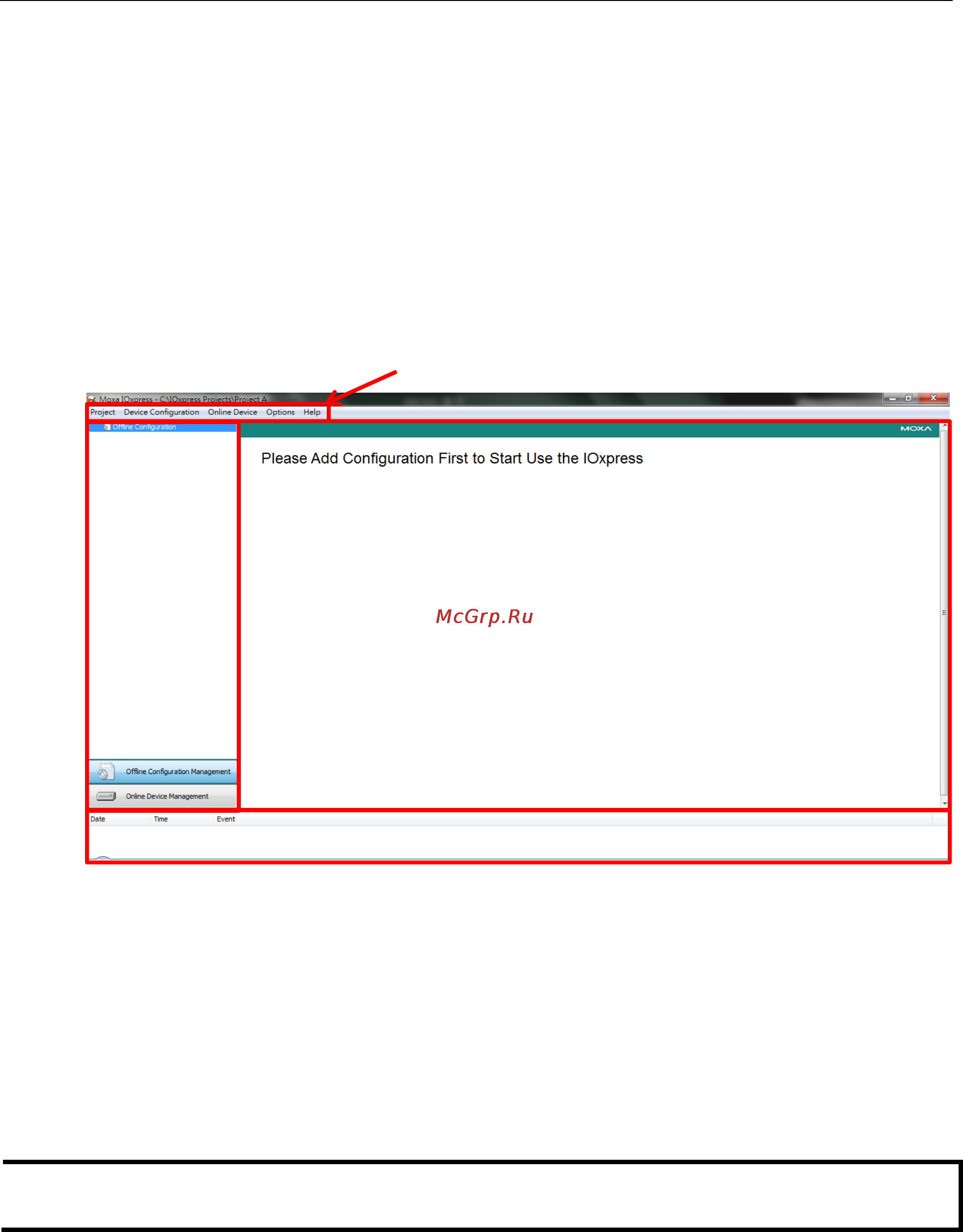

The following figure shows the main screen of the IOxpress utility. There are four main areas:
• Menu Bar
• Configuration Management
• Content Configuration
• Log Messages
Menu Bar
There are five tabs on the menu bar:
• Project: For managing projects.
• Device Configuration: Functions for offline configuration.
• Online Device: Functions for online configuration.
• Options: Preferences and network interface.
• Help: Version information
NOTE
If the host computer has multiple interfaces, be sure to select the correct network interface before searching
for online devices.
Configuration
Management
Content Configuration
Log Messages
Menu Bar
