Moxa ioLogik 2542 [43/88] Modbus
![Moxa ioLogik 2542 [43/88] Modbus](/views2/1201207/page43/bg2b.png)
ioLogik 2500 Series Offline Configuration Management
4-18

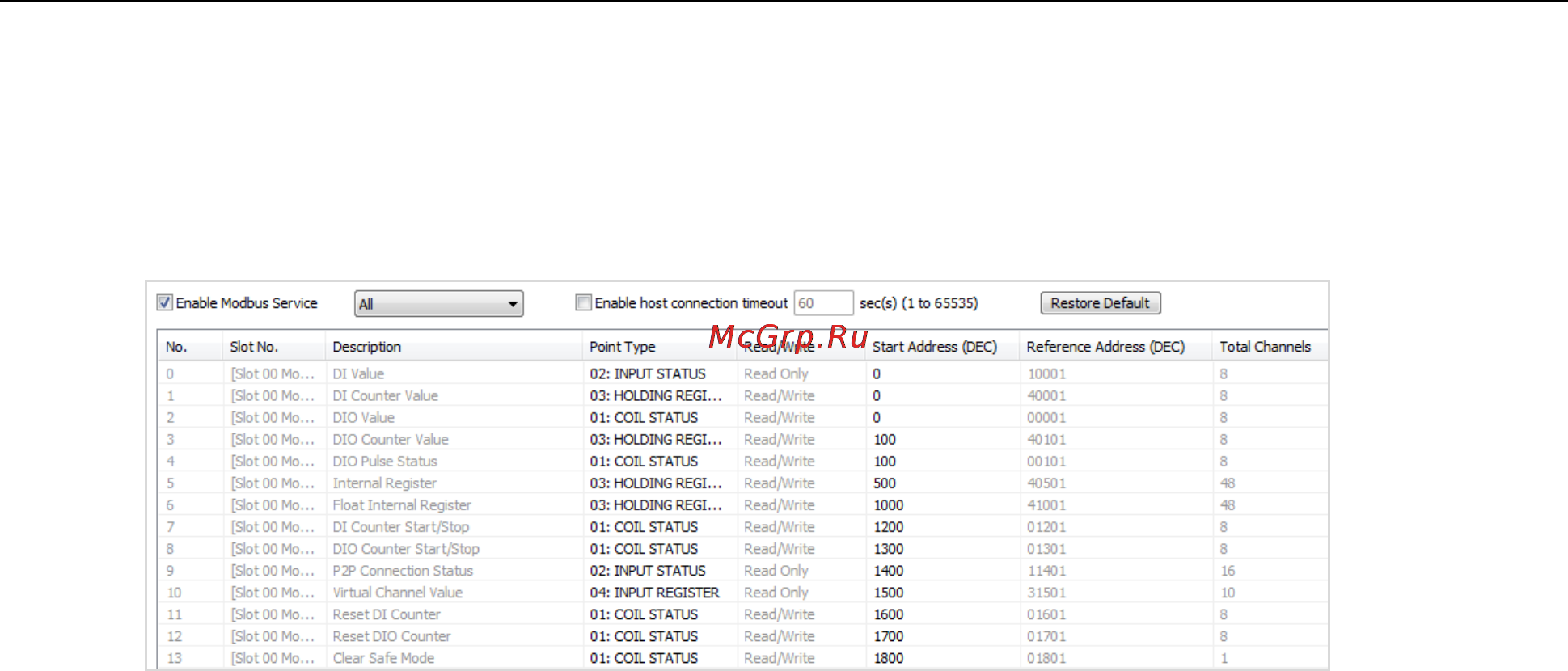

Modbus
In this section, I/O addresses can be configured for different formats. Select the Enable Modbus Service
checkbox, select the Modbus function, and then configure the start address of each item.
Enable Modbus Service
Enable/Disable the Modbus service setting to turn the Modbus/TCP slave protocol on or off.
Enable host connection timeout
Enable the host connection timeout setting to monitor the Modbus connection status between the Modbus
Master and the ioLogik 2500 Modbus service. The connection status can be a condition of a Click&Go Plus
rule.
Restore Default
Click the Restore Default button to restore default settings of the Modbus service.
