ioLogik 2500 Series Overview
1-2
ioLogik 2500 Overview
The ioLogik
2500 combines a remote I/O device and data logger into one
box, dramatically reducing the
amount of effort required to integrate devices
from
multiple vendors. I/O and serial data can be logged onto a Micro SD
card (supports cards with up to 32 GB of storage space), and the
ioLogik
2500
can be programmed with Moxa’s convenient Click&Go™ Plus control
logic, which can be used to easily construct
customized control systems. As
a rugged industrial device, the ioLogik 2500 operates reliably at a wide
range of temperatures, and is well suited for hard
-to-
wire remote monitoring
and
alarm applications at unmanned sites like riversides and pipelines.

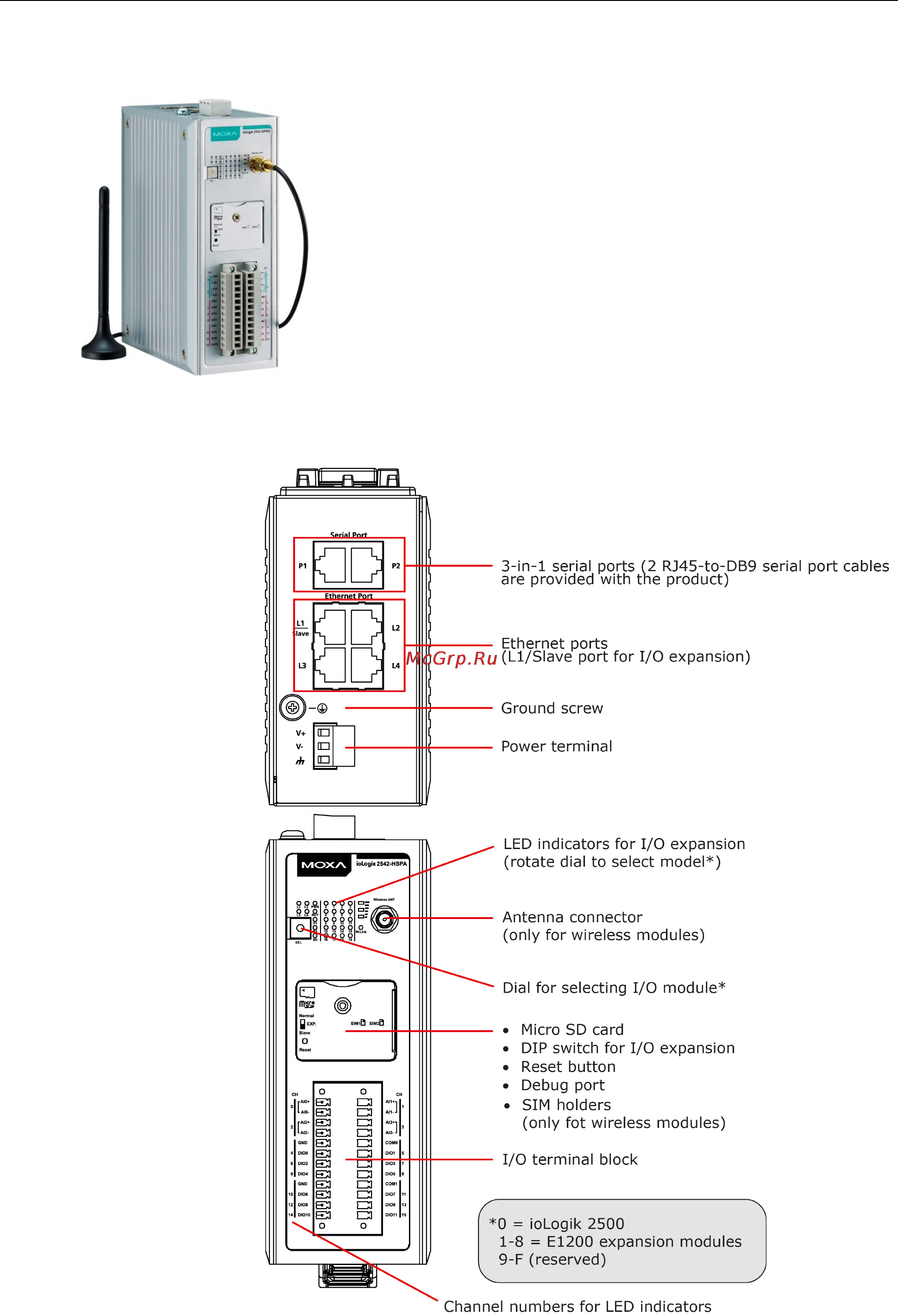

Appearance
Top View
Front View
