Moxa ioLogik 2542 [58/88] Auto searching for online devices
![Moxa ioLogik 2542 [58/88] Auto searching for online devices](/views2/1201207/page58/bg3a.png)
ioLogik 2500 Series Online Device Management
5-3

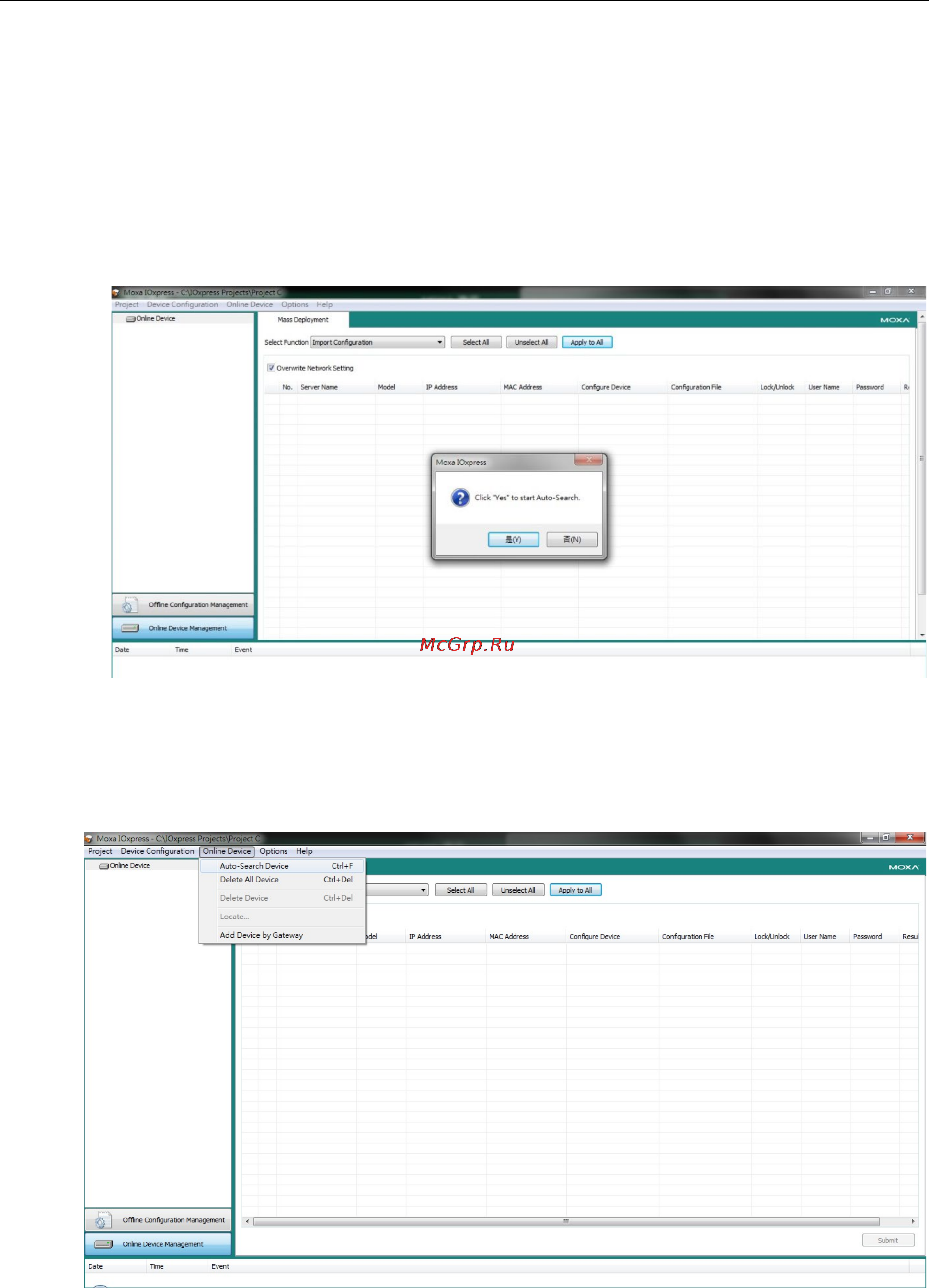

Auto-Searching for Online Devices
First Time Searching for Devices
• The first time you click Online Device Management, IOxpress will automatically display an auto-
search information popup window.
• Click Yes to start searching for devices.
• The search information will be displayed in the Log.
Conducting another Search for Online Devices
If you would like to conduct another search for online devices, click Auto-search Device in the Online
Device tab in menu bar.
