ioLogik 2500 Series Offline Configuration Management
4-17

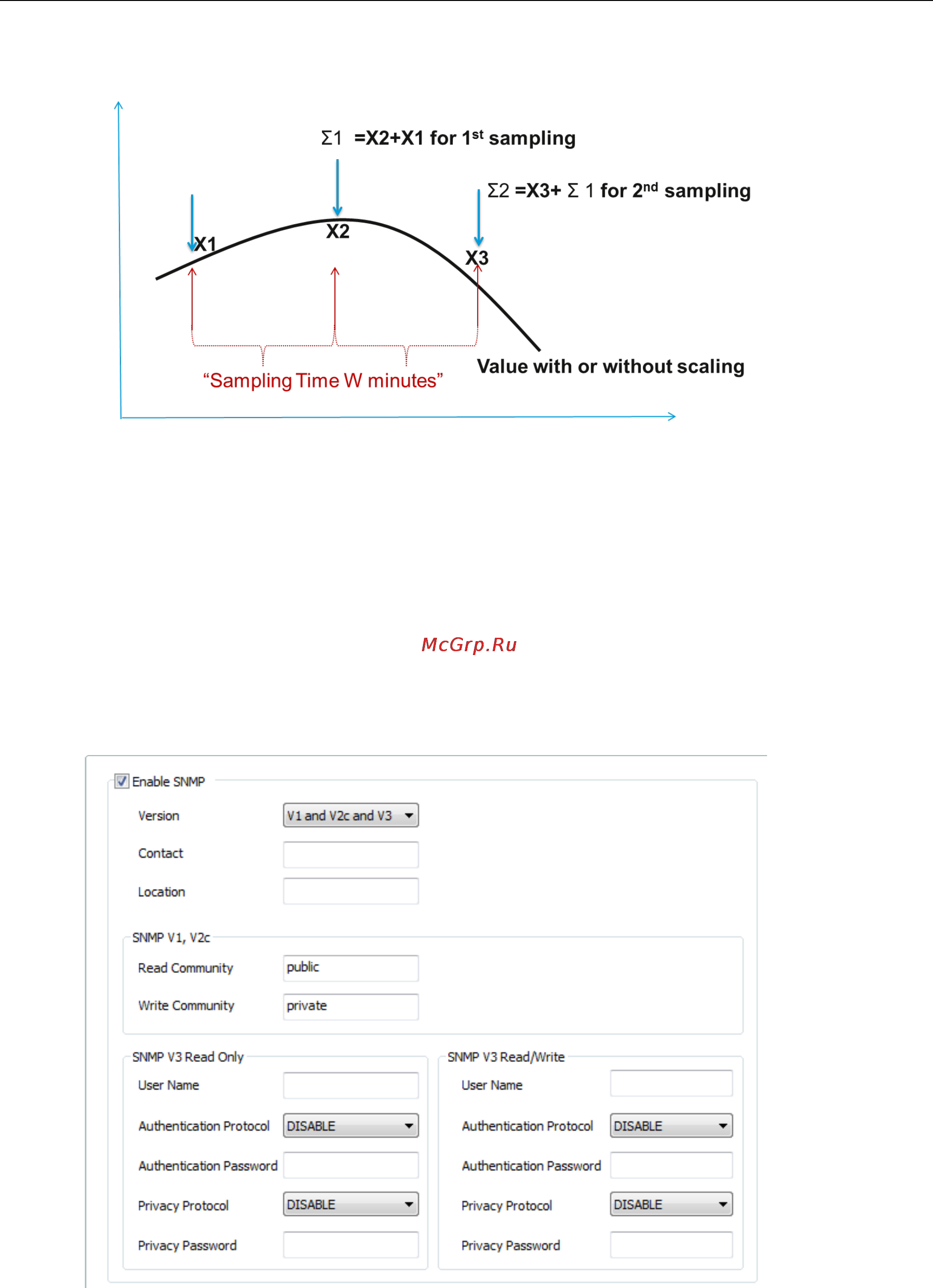

Accumulation:
The sum (Σ) of all sampling values.
• Interval (min.)
Set the interval time (Minutes) for Maximum, Minimum, and Average functions.
• Sampling Time (min.)
Set the sampling time (Minutes) for Instantaneous and Incremental functions.
SNMP
The ioLogik supports SNMP (Simple Network Management Protocol) v1, v2c, and v3 to monitor network and
I/O devices with SNMP Network Management software. It is useful in building automation and telecom
applications. Use these fields to enable SNMP and set the read and write community strings for SNMPv1 and
SNMPv2c, or use authentication for SNMPv3.
