ioLogik 2500 Series Cellular Network Setup and Configuration (for cellular models)
6-4
VPN
In this section, we explain how to set up a VPN connection for the ioLogik 2500-GPRS/HSPA.

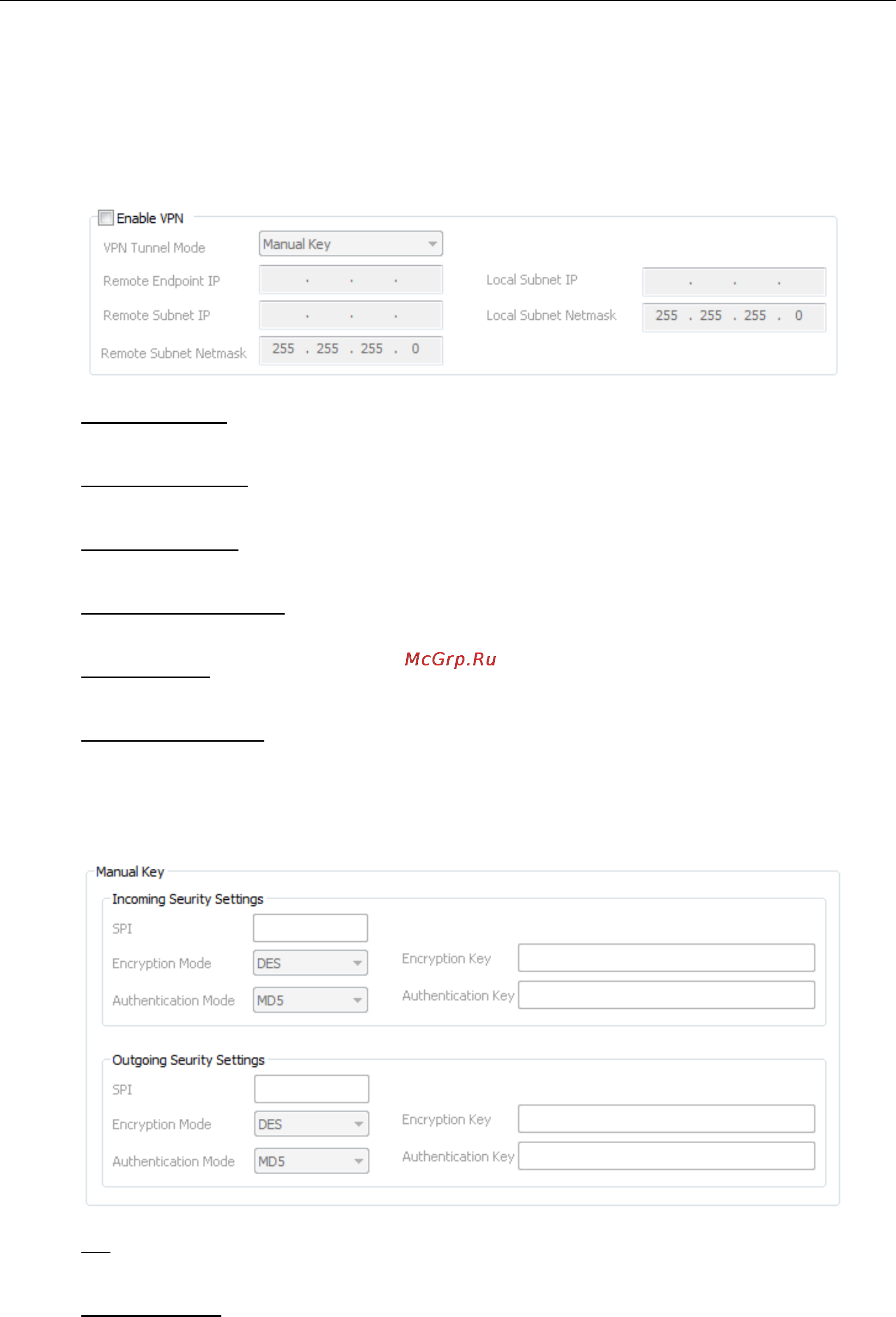

Enable VPN
VPN Tunnel Mode
The type of VPN tunnel policy to be used; either manual key IPsec or ISAKMP with Pre-shared Keys (PSK).
Remote Endpoint IP
Enter the WAN IP of the remote VPN server endpoint.
Remote Subnet IP:
Enter the remote VPN server subnet (LAN) IP of the remote network.
Remote Subnet netmask
Enter the remote VPN server subnet netmask of the remote network.
Local subnet IP
Enter the ioLogik 2500’s subnet (LAN) IP.
Local Subnet netmask
Enter the ioLogik 2500’s subnet netmask.
Manual Key
SPI
Set the VPN manual key for incoming/outgoing SPI between 257 and 4294967295.
Encryption mode
Select the incoming/outgoing encryption mode.
