ioLogik 2500 Series Offline Configuration Management
4-16
Average:

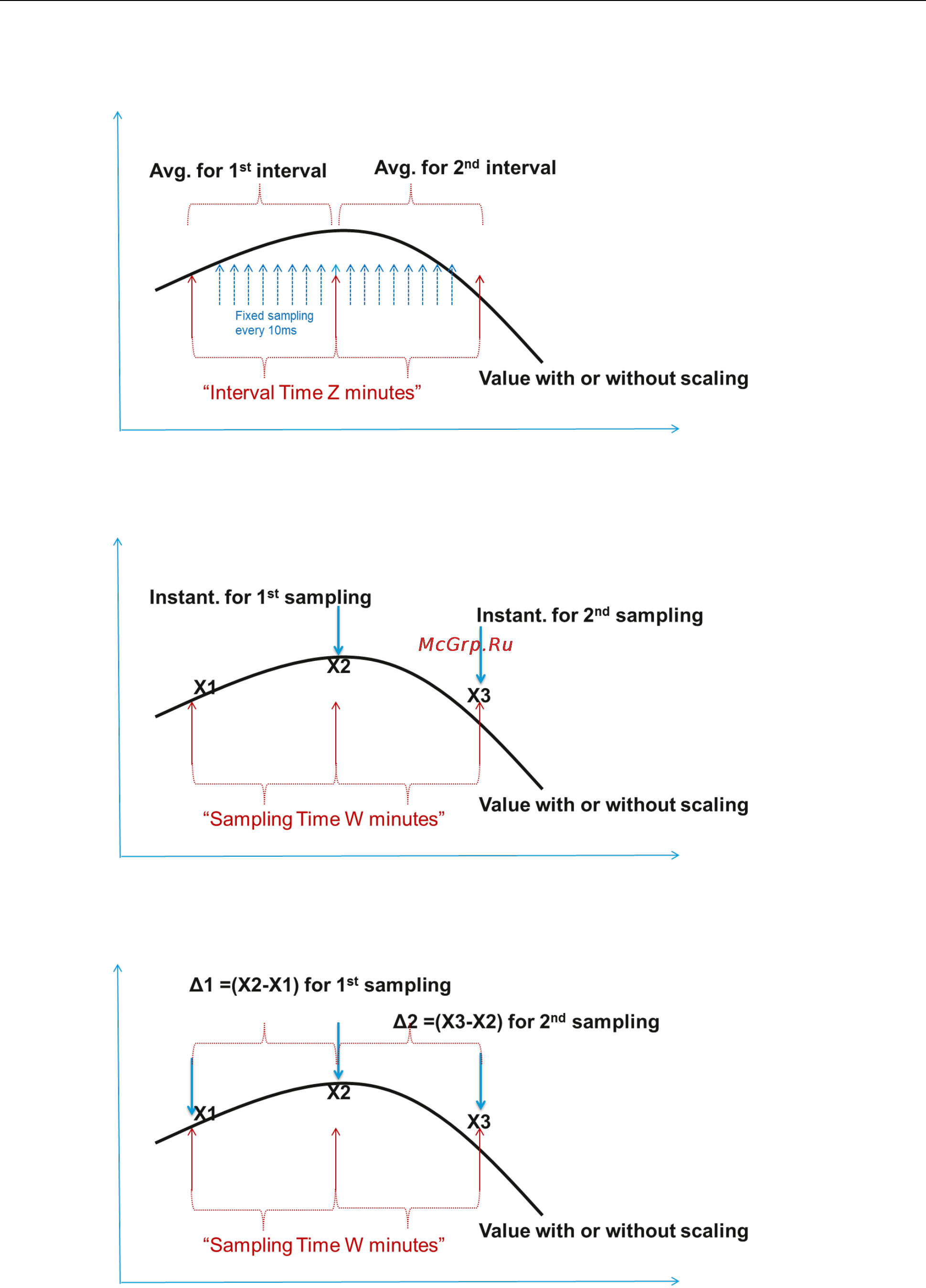

The average value within Z sec, with sampling done every 10 ms.
Instantaneous:
The instantaneous value when a sample is taken.
Incremental:
The difference (Δ) between two samples.
