ioLogik 2500 Series Cellular Network Setup and Configuration (for cellular models)
6-13
Using a browser URL

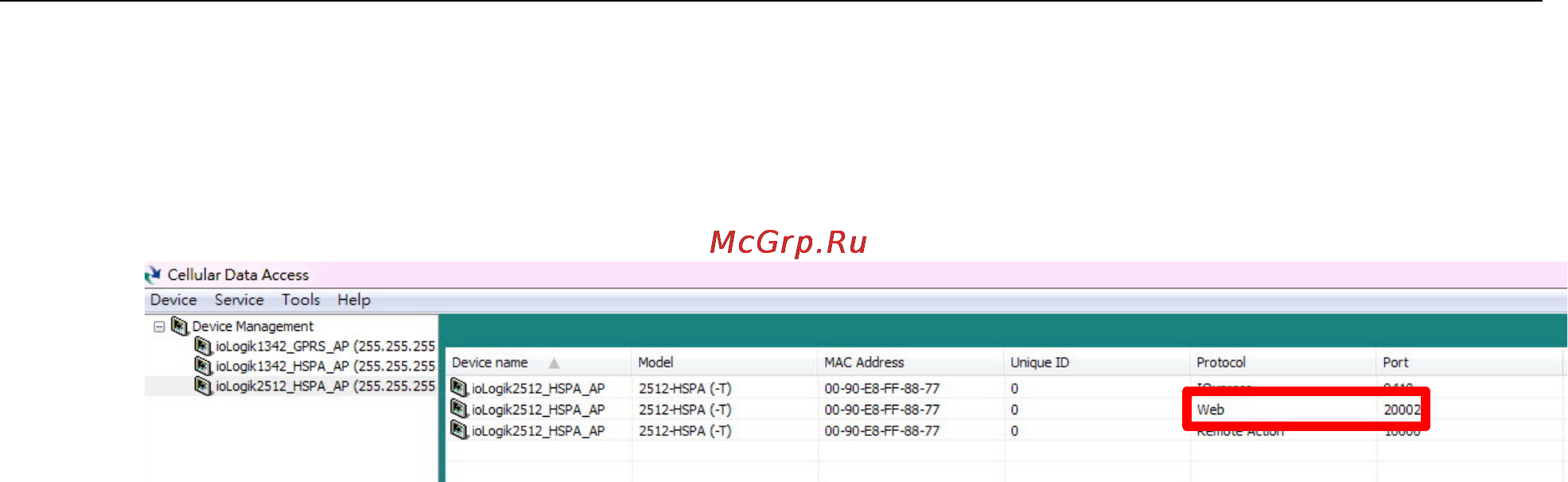

1. Check the port number in the cellular data access utility.
Once the devices are connected, the utility will automatically assign URL ports to the devices.
2. Access the device via the browser.
You can use the URL to connect to the device by typing http://[IP address] : [Port].
IP Address: The IP address of the Cellular Data Access server.
Port: The port number of the device assigned by Cellular Data Access.
E.g., 192.168.17.253:20002
