ioLogik 2500 Series Online Device Management
5-5

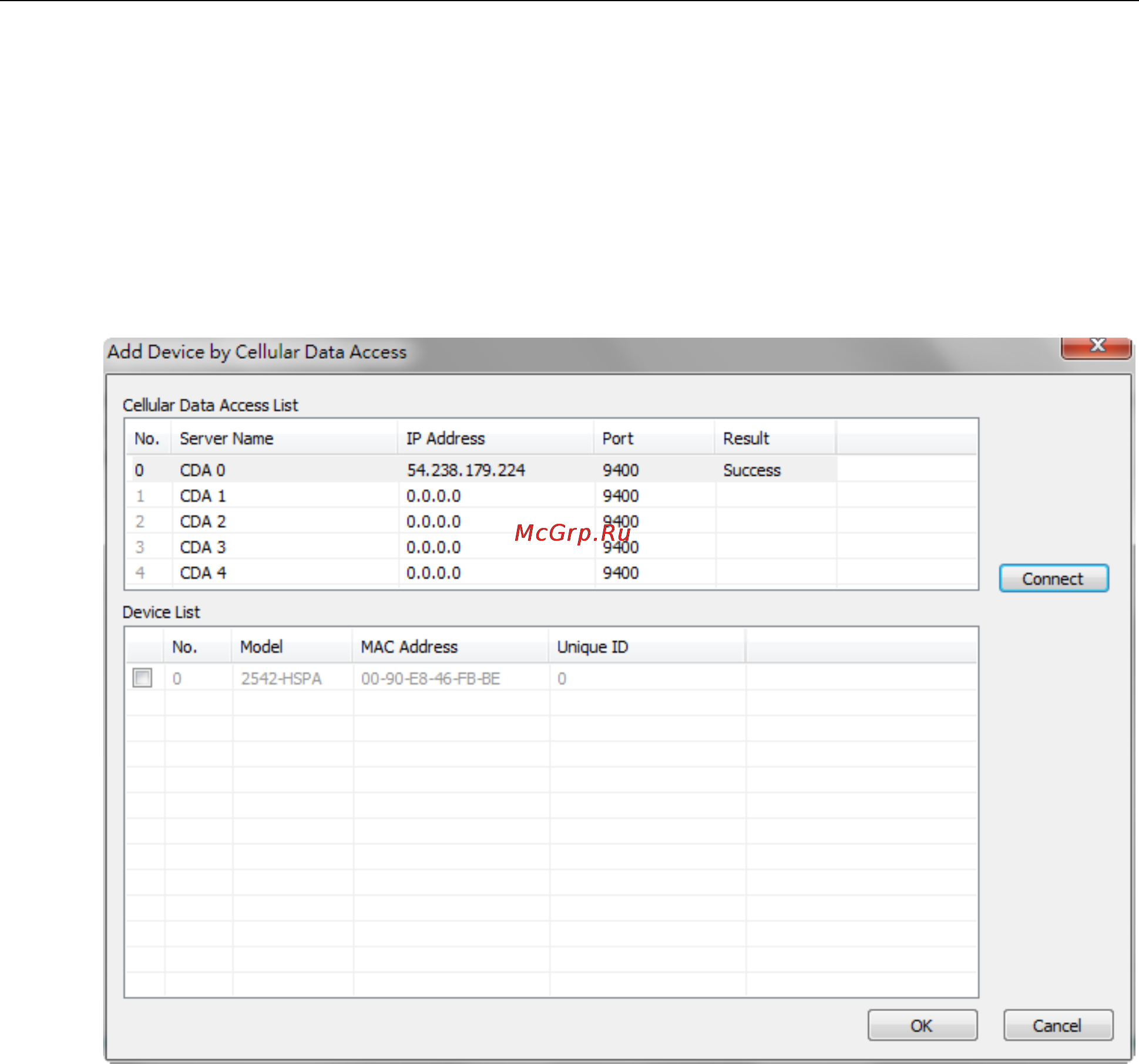

Add Device by Cellular Data Access
Cellular Data Access is a device gateway that allows you to establish connections to ioLogik 2500 units
configured with a dynamic public IP. You will need to install Cellular Data Access on a server that is using a
public IP address, and the iologik 2500-GPRS/HSPA unit’s configuration must have the Cellular Data Access
function enabled.
Once the Cellular Data Access and ioLogik 2500 are configured, you can use “add device by cellular data
access” to add a device registered in the Cellular Data Access server.
• Type in the IP address of the Cellular Data Access server and then click connect. The registered device
will be shown in the device list.
• In the example shown above, an ioLogik 2542-HSPA device is registered in the Cellular Data Access
server with IP address 54.238.179.224.
