Moxa ioLogik 2542 [53/88] Click go plus simulator tab

ioLogik 2500 Series Offline Configuration Management

4-28

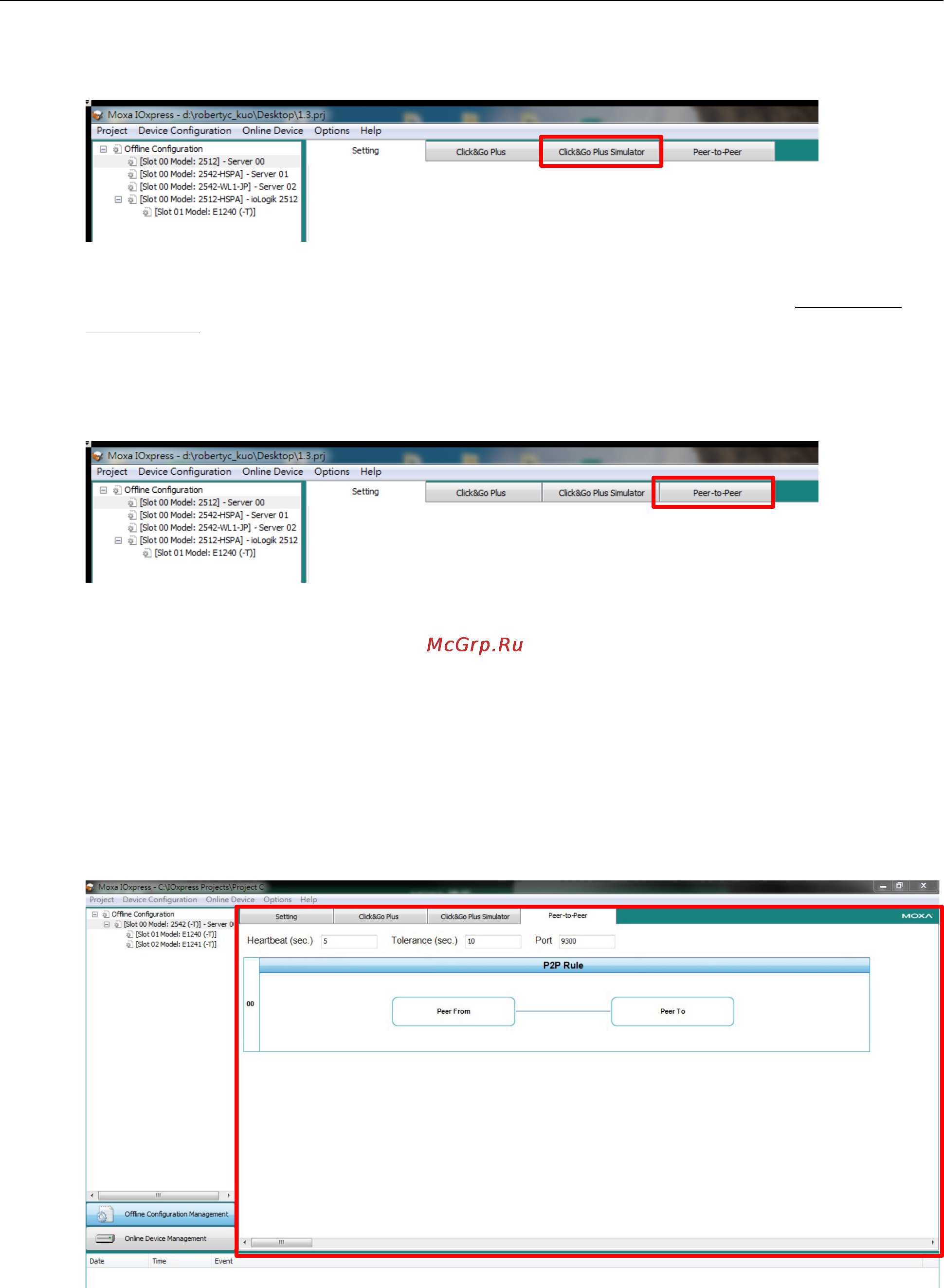

Click&Go Plus Simulator Tab

When you finish defining your Click&Go Plus rules, you can use the Click & Go plus Simulation tool to test

the rules. For a detailed introduction of how to use this function, refer to Chapter 4 of the Click&Go Plus

User’s Manual.

Peer-to-Peer Tab

In some remote automation implementations, the control room and field sensors may be located far apart

from each other, often with only a single remote I/O module to collect data from all the sensors.

Peer-to-peer communication has little or no limitation since it replaces cable by integrating multiple I/O

signals over a single network cable to transmit input-to-output controls without the aid of PLCs or

controllers.

With peer-to-peer communication and support for channel-to-channel mapping, the ioLogik 2500 allows

simultaneous multiple target transmissions. In addition, the ioLogik 2500 supports up to 16 channels for

transmission over Ethernet (based on an emitter and receiver I/O pair).

Click on Peer to Peer in the menu bar to configure basic device settings.
