ioLogik 2500 Series Installation

2-6

ATTENTION

When using the ioLogik 2500 as

the head of an array of ioLogik E1200 modules, make sure that:

1. You connect the first E1200 expansion module in the array to the ioLogik 2500’s L1 Slave port.

2. A maximum of 8 ioLogik E1200 devices are connected in a single array.

3. You only use ioLogik E1200 devices in the array. Other devices cannot be used as part of the array.

Reset to Factory Defaults

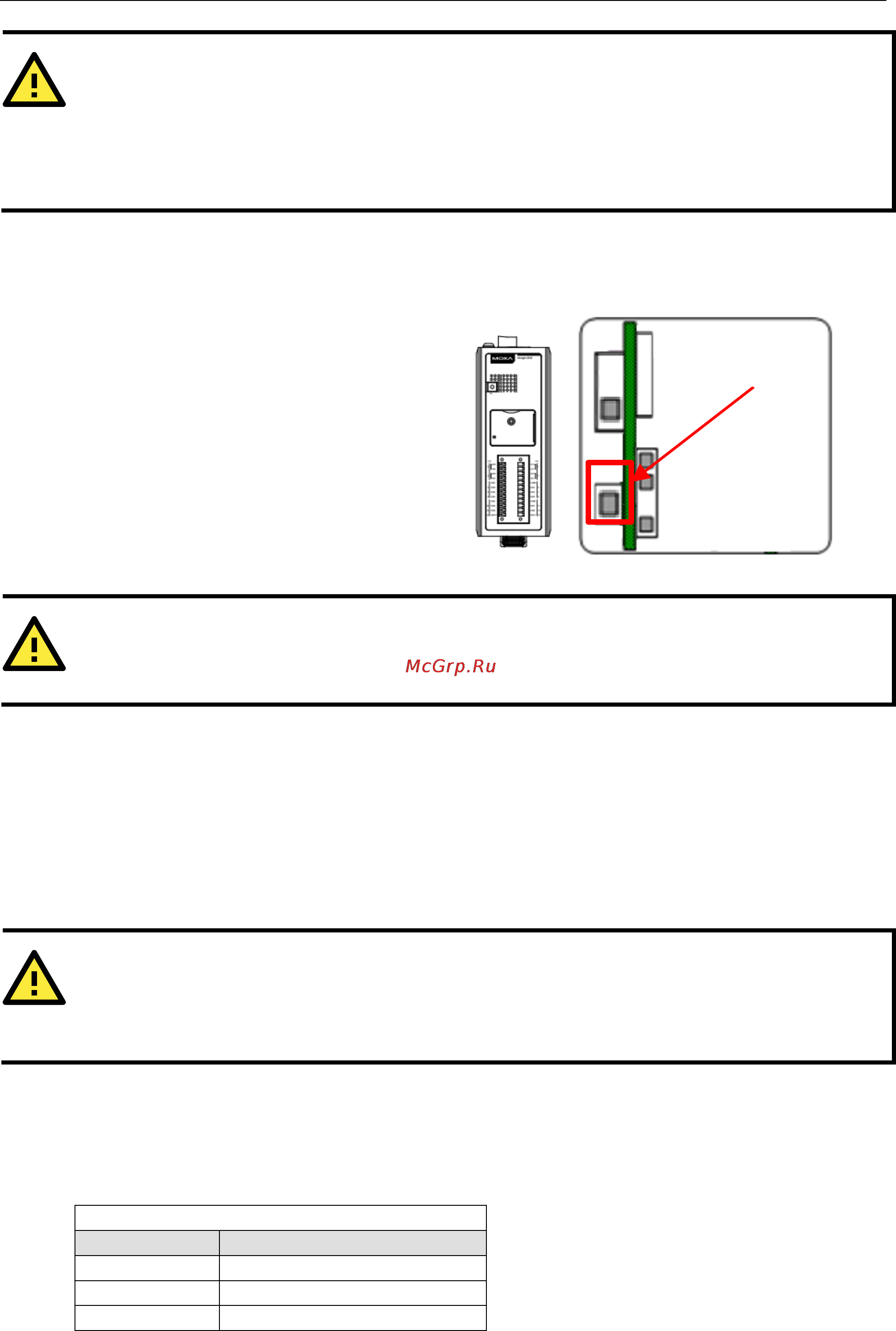

If you need to reset the ioLogik 2500 to factory

defaults, press and hold the reset button (located

under the cover

plate, as shown in the diagram) for

more than

5 seconds.

WARNING

Resetting your

device to factory defaults will result in the loss of all configuration settings and any Click&Go

Plus logic settings that have already been configured.

Network Installation

Ethernet Communication

Connections to the LAN port are made through an RJ45 connector on the ioLogik 2500 device. The wiring

and pin connections for these connectors are described in separate sections below.

ATTENTION

The maximum cable length of a 10/100BaseT connection is 100 m (350 feet), but the

actual limit could be

shorter depending on the amount of electrical noise in the environment. To minimize the amount of noise,

Ethernet cables should not run parallel to power cables or other cables that generate electrical noise.

TCP/IP Settings

The following table shows the TCP/IP parameters supported by the LAN port. The ioLogik 2500 will revert to

these default values whenever it is reset to factory defaults.

LAN Port

Parameter Supported Values

IP Address Default: 192.168.127.253

Subnet Mask Default: 255.255.255.0

Gateway Default: 0.0.0.0

Reset Button
