Chapter 5. GUI Operation
37
The Toolbar
The functions associated with each of the CM0264 toolbar icons are explained
in the table below:
Note: The Toolbar can be moved to anywhere on your desktop. Simply click
on the Toolbar’s CubiQ
TM
logo, and drag to a convenient location.

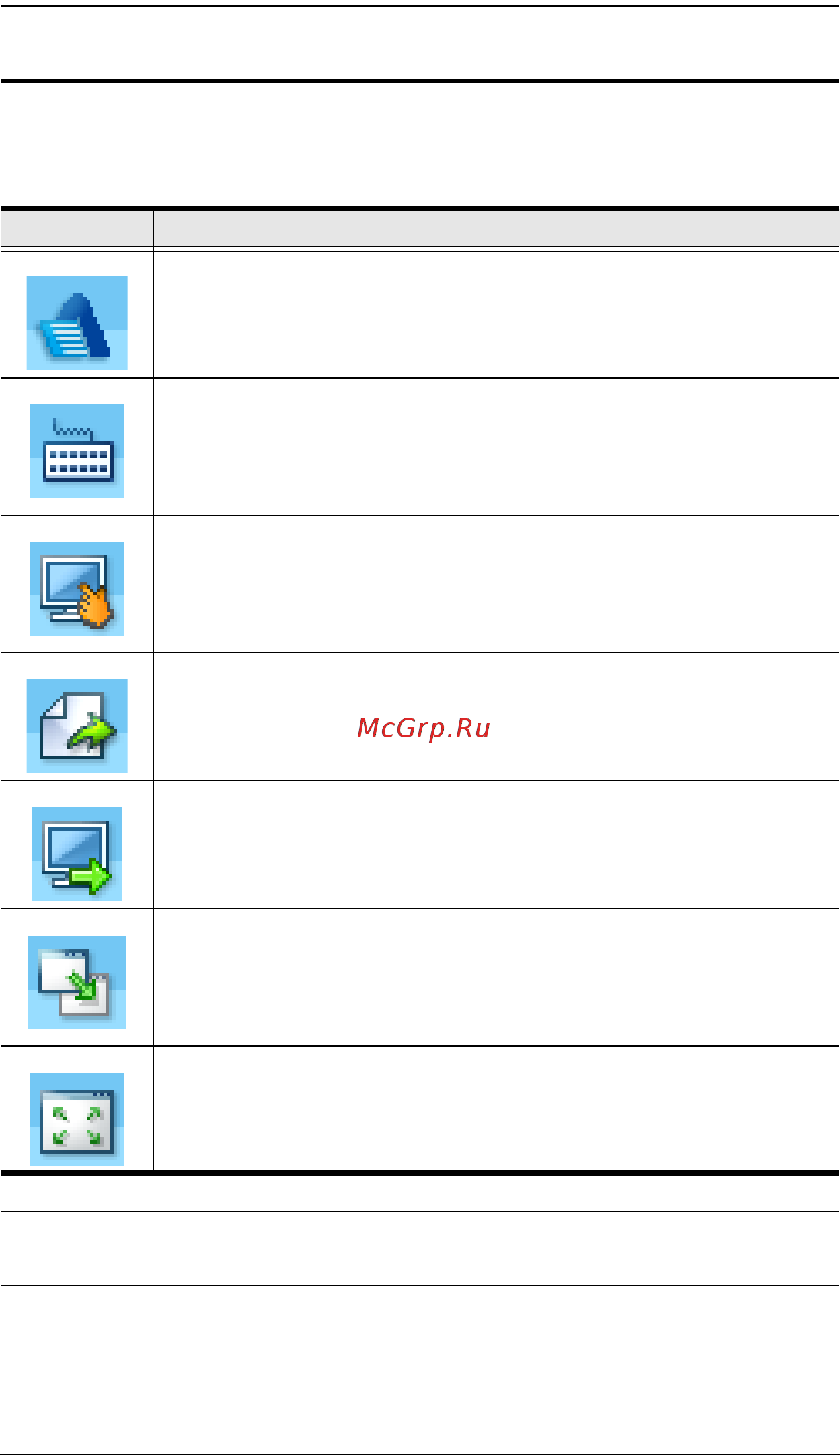

Icon Function
About – provides information about the CM0264, such as the current
firmware version and copyright information.
Hotkey List – provides a list of the CM0264 default hotkey settings.
See HSM Summary Table, page 33 for a full list of CM0264 hotkeys
and see also Factory Default Hotkeys and Settings, page 64 for a full
list of default hotkey settings.
List Switch Settings – provides information about the CM0264’s port
settings, such as the OS of the attached computers. This is the same
function as the List Switch Settings hotkey. See List Switch Settings,
page 29, for details.
File Transfer – activates the CM0264’s file management utility. See
The File Management Utility, page 38, for a full explanation of the
functions.
Desktop Scaling – click here to synchronize the resolution of all
attached computers/devices. See , page 45, for full details.
Hide Matrix Windows – minimizes the Matrix Windows to an icon in
the taskbar. Click the taskbar icon to restore. See Port Switching via
Matrix Windows, page 45, for full details of the CM0264’s Matrix
Windows feature.
Toolbar On/Off – minimizes the CM0264 toolbar to an icon in the
taskbar. To view the toolbar, simply double click the taskbar icon.
