49
Chapter 6
The Firmware Upgrade Utility
The Windows-based Firmware Upgrade Utility (FWUpgrade.exe) provides a
smooth, automated process for upgrading the CM0264’s firmware. New
firmware upgrade packages are posted on our Website as new firmware
revisions become available. Check the web site regularly to find the latest
packages and information relating to them:
http://www.aten.com
Before you Begin
1. Disconnect your CM0264 installation. Go to our Internet support site and
choose the CM0264 AP/Firmware Upgrade Package you want to install
(usually the most recent), and download it to a computer.
2. Connect one of the KVM cable set’s Type A USB connectors to a USB
hub port on the computer with the Firmware Upgrade package.

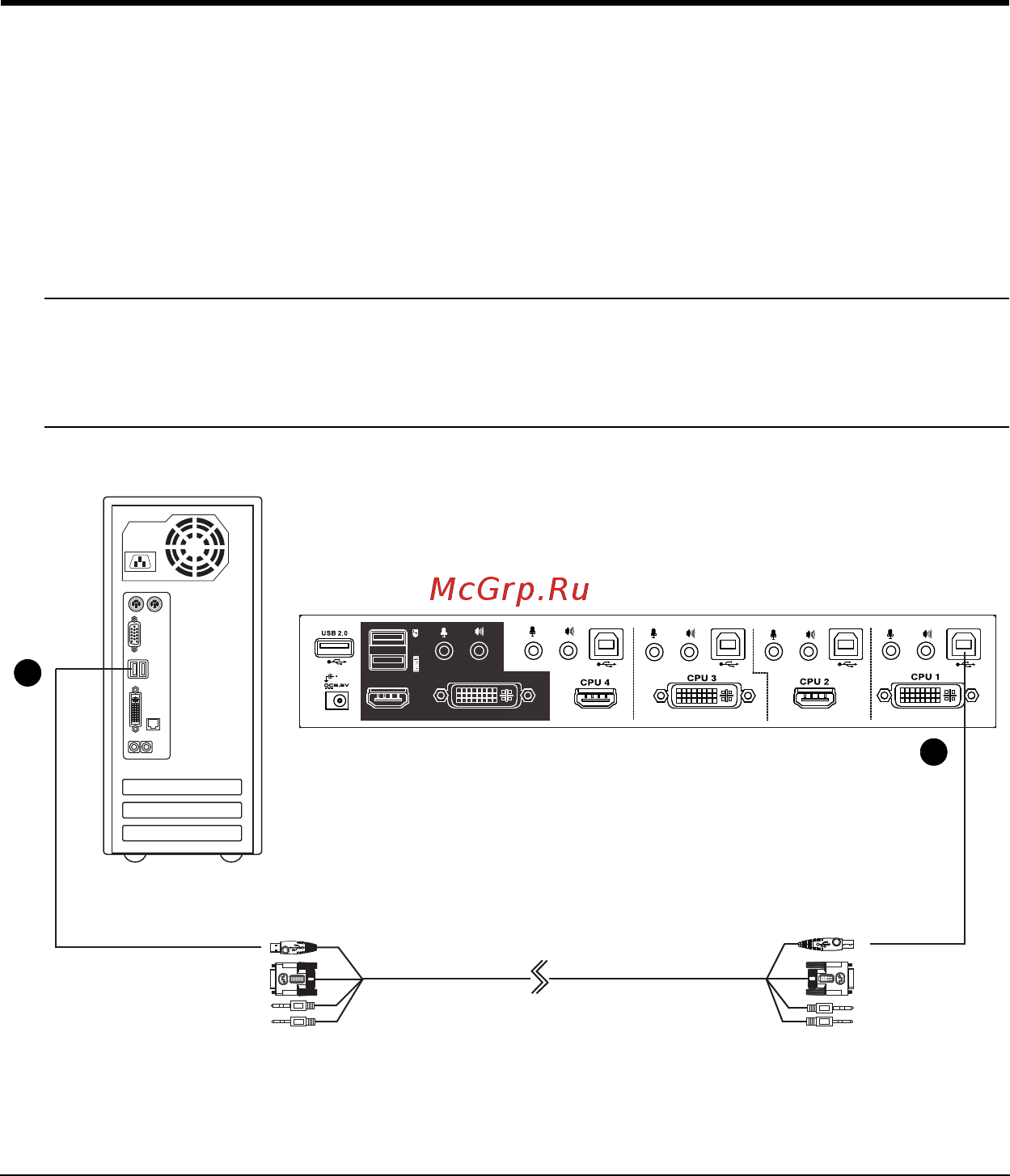

Note: The illustration below shows the USB DVI KVM cable set for
reference. The USB HD audio/video KVM cable set can also be
used.
(Continues on next page.)
3
2
