CM0264 User Manual
50
(Continued from previous page.)
3. At the other end of the KVM cable set, connect the USB Type B connector
to the Type A USB port in the Port 1 KVM section.
4. Invoke Firmware Upgrade Mode (see Firmware Upgrade Mode, page 30).
All the KVM LEDs flash orange to indicate that Firmware Upgrade Mode
is in effect.
Starting the Upgrade

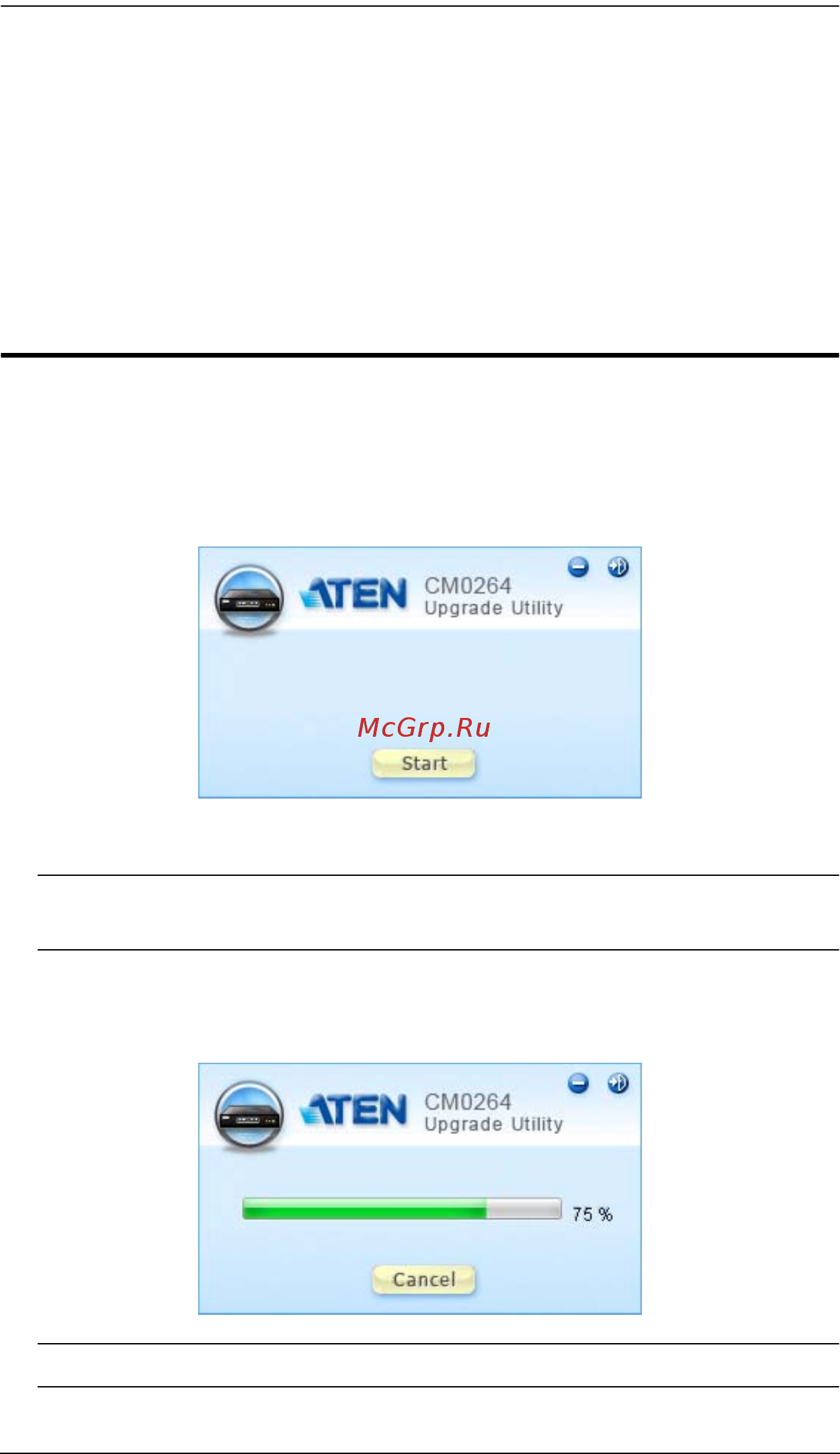

1. Run the downloaded AP/Firmware Upgrade Package file and follow the
on-screen instructions to input customer information. Select “Complete”
setup and install the USBXpress driver AP as instructed (see note on page
49), until the following window appears:
Click Start to execute the utility
Note: If a “Device Not Found” error message appears, check that the USB
cables are connected properly.
2. Click OK in the next window that appears to confirm the upgrade. A new
window with a progress bar appears (Click Cancel to cancel the upgrade).
Note: Do not disconnect the USB cables while the utility is in operation.
